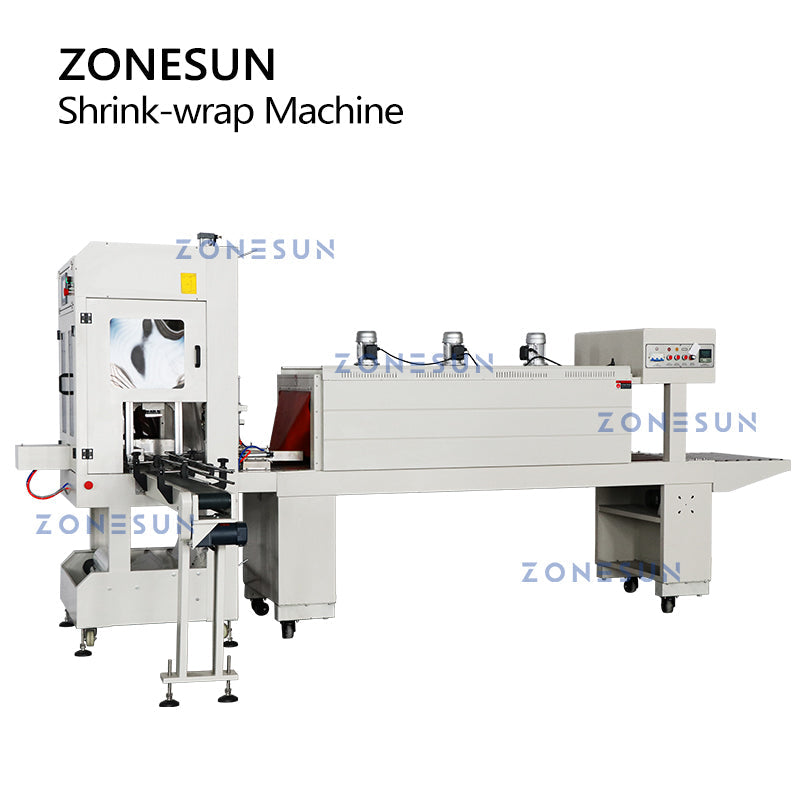

ZONESUN ZS-SPL4 Automatic Bottles Wrapping Shrinking Packaging Machine
ZONESUN ZS-SPL4 Automatic Bottles Wrapping Shrinking Packaging Machine
Verfügbarkeit für Abholungen konnte nicht geladen werden
DESCRIPTION
This is an all-in-one solution to dispense and seal shrink-wrapped film around bottled water or drinks. It can work with supporting machines, such as a filler, a cap sealer, and a label applicator to form an automatic production line.
PARAMETER
Wrapper |
|
|
Model |
ZS-QZD7040 |
|
Voltage |
220-240V 50-60Hz |
|
Power |
2kw |
|
Packing speed |
0-6 bags/min |
|
Sealing time |
0.5-1.5s |
|
Package length |
≥12cm |
|
Max package width |
42cm |
|
Max package height |
33cm |
|
Conveying load |
20kg |
|
Conveyor length |
1.6m |
|
Film width & thickness |
Max 560mm/0.03-0.25mm |
|
Applicable film |
POF/PE/PVC/PP |
|
Machine size |
About 2210*1450*2080mm |
|
Machine weight |
About 380kg |
Shrink Tunnel |
|
|
Model |
ZS-BSPN6040 |
|
Voltage |
380V 50-60HZ |
|
Power |
21KW |
|
Tunnel Size |
About 1800*600*400mm |
|
Conveying Speed |
0-15m/min |
|
Transport Load |
25kg |
|
Suitable Film |
PVC/POF/PE |
|
Machine Size |
About 2800*910*1400mm |
|
Package Size |
About 2880*930*1500mm |
|
Package Weight |
About 350kg |
PRODUCT DETAILS
CONTROL PANEL
Wrapper
PLC controls, color display, touchscreen.
Shrink Tunnel
Simple controls, foolproof.
WRAPPING
Automatically arrange the bottles, dispense the shrink film, wrap the bottles, and seal the bottles, which is efficient with no waste of film.
SHRINKING
Tunnel: 180cm long, 60cm wide, and 40cm high.
3 motors for hot air circulation.
All-day use, heavy-duty construction.
