ZONESUN ZS-A02 Liquid Filling Machine Manual Pneumatic Cosmetics Products Gel Thick Liquid
ZONESUN ZS-A02 Liquid Filling Machine Manual Pneumatic Cosmetics Products Gel Thick Liquid

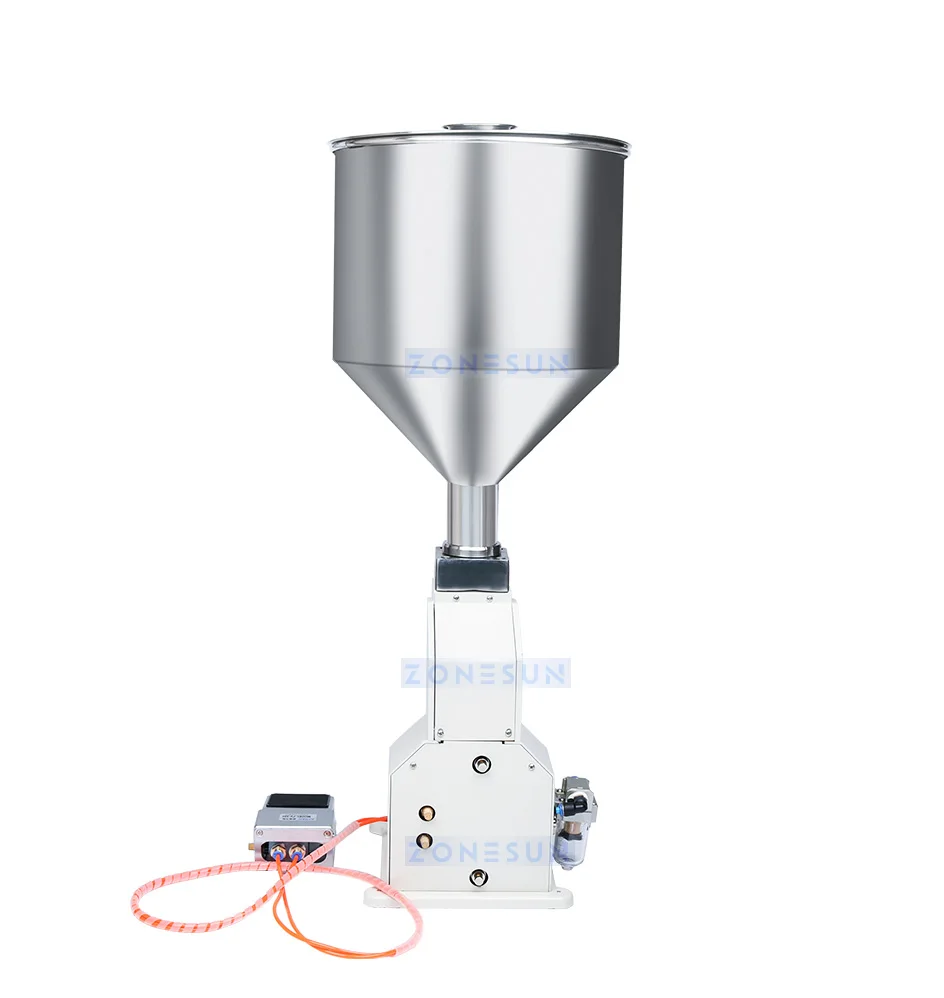

This manual paste and liquid filler adopts a piston structure. It can fill paste and liquid from 5-50ml/10-100ml. The filler can fill liquid, fluid food, lubricating oil, shampoo, cosmetics products, and so on. It is widely used in the cosmetic and food industries.
This machine structure is simple and reasonable, with easy operation. It does not require an electric supply. Equipped with adjusting screws, the filling volume can be easily adjusted. All the parts that contact with the material are made of stainless steel.
Machine Model |
ZS-A02 |
Filling Range |
5-50ml/10-100ml |
Filling Accuracy |
±0.2-1ml |
Air Pressure |
0.4-0.6MPa |
Hopper Capacity |
10L |
Filling Nozzle Diameter |
4mm&8mm |
Filling Speed |
20-60times/min(depend on materials) |
Machine Material |
304 Stainless Steel |
Machine Size |
270*270*700mm |
Machine Weight |
13kg |
Package Size |
340*340*770mm |
Package Weight |
18kg |
We will test the filling machine before shipment, so it's normal that there is water left inside when you receive it.
|
