ZONESUN Automatic Powder Mixing Feeding Filling Sealing Production Line
ZONESUN Automatic Powder Mixing Feeding Filling Sealing Production Line
Impossible de charger la disponibilité du service de retrait
DESCRIPTION

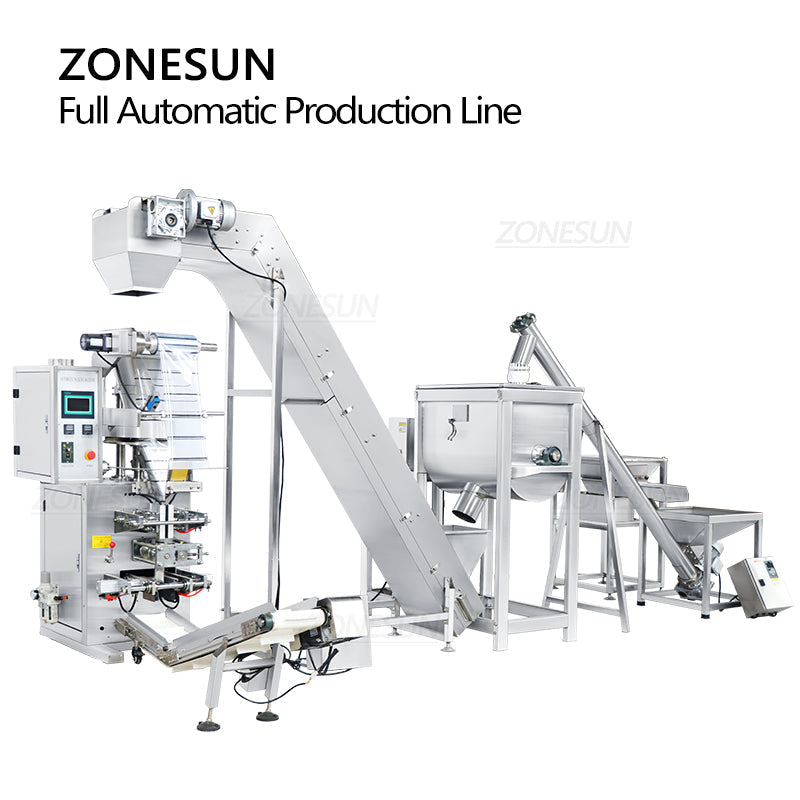

This is a powder production line with a vibrating feeder, a mixer, a feeding ladder, and a packing machine. It is a complete solution for powder packaging and customization is available.
PARAMETER
|
Vibratory Feeder |
|
|
Model |
ZS-VF50 |
|
Voltage |
110/220V 50-60HZ |
|
Capacity |
50L |
|
Output Frequency |
40-400HZ |
|
Outlet Size |
740*260(L*W) |
|
Machine Size |
About630*630*1065mm |
|
Machine Weight |
About 91kg |
|
Powder Mixer |
||
|
Model |
ZS-BM200 |
ZS-BM500 |
|
Voltage |
380V |
|
|
Power |
2.2KW |
4KW |
|
Capacity |
200kg |
500kg |
|
Rotating Speed |
15rpm |
|
|
Machine Material |
Stainless steel |
|
|
Powder Packing Machine |
||
|
Model |
ZS-F100 |
ZS- F300 |
|
Bag length |
50-150mm |
50-300mm |
|
Bag width |
25-120mm |
70-190mm |
|
Film width |
50-240mm |
140-380mm |
|
Bag volume |
5-100ml |
100-1000ml |
|
Packing speed |
30-50 bags/min |
20-30 bags/min |
|
Power supply |
220V/AC 50Hz 1.6Kw |
220V/AC 50Hz 1.8Kw |
|
Air requirements |
0.6Mpa, 100L/min |
|
|
Machine size |
760*980*1700mm |
900*1110*2100mm |
|
Machine weight |
300kg |
500kg |
