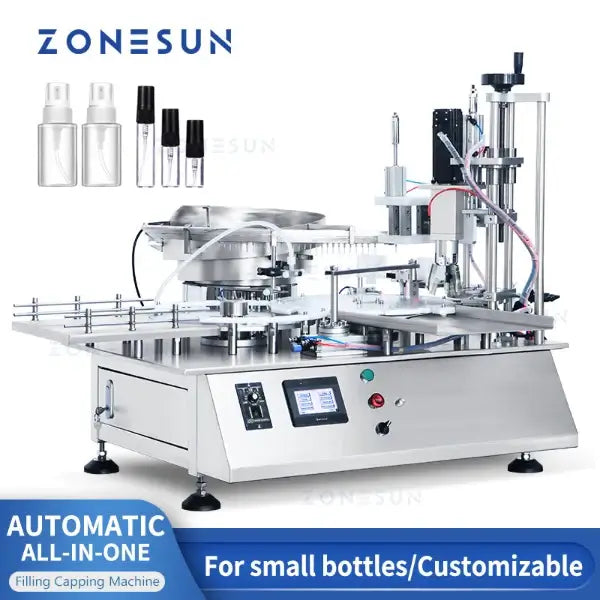

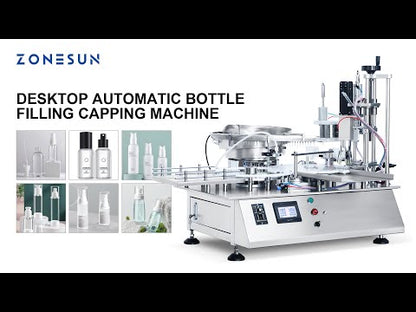

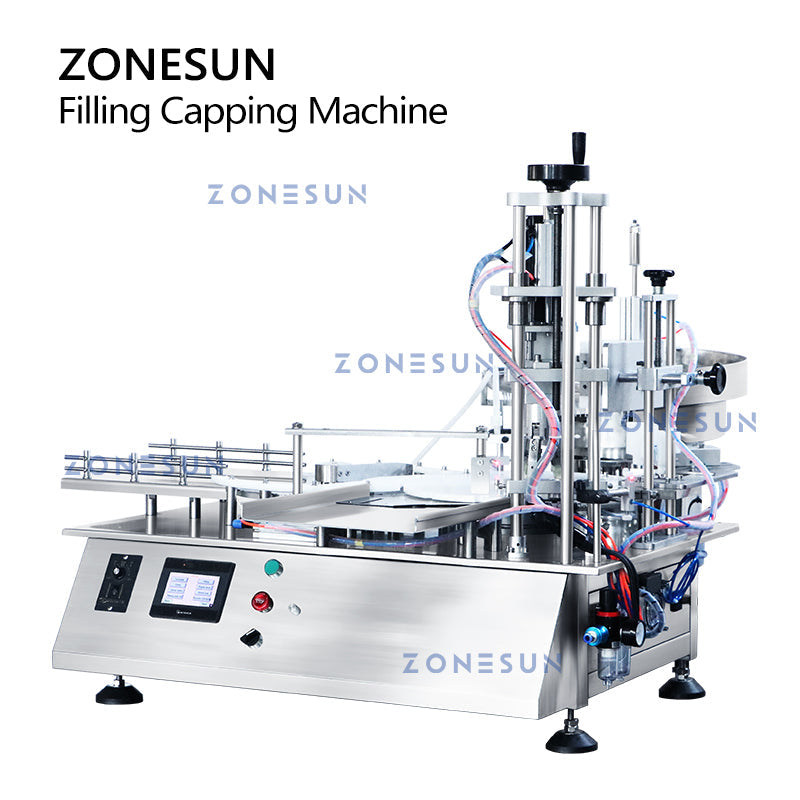

ZONESUN ZS-AFC7 Single Nozzle Magnetic Pump Liquid Filling and Capping Machine
ZONESUN ZS-AFC7 Single Nozzle Magnetic Pump Liquid Filling and Capping Machine
Impossible de charger la disponibilité du service de retrait
DESCRIPTION
This filling capping machine is designed for mini bottles like eyedrop bottles, essential oil bottles, and perfume sample bottles. It can sort bottles, fill liquid, feed caps, and tighten bottle caps. It is also equipped with a cap vibratory bowl sorter which can fill liquid automatically. It greatly saves labor and space.
PARAMETER
|
Machine Model |
ZS-AFC7 |
|
Machine power |
1000W |
|
Machine voltage |
110/220V 50-60HZ |
|
Filling pump |
Magnetic Pump |
|
Recommended filling range |
10-200ml |
|
Pump maximum flow rate |
4L/min |
|
Suitable bottle height |
About 10-100mm |
|
Suitable bottle diameter |
About 15-100mm |
|
Suitable cover size |
φ=10-50mm |
|
Working speed |
About 30 bottles/min |
|
Machine size |
About 980*820*960mm(machine) About 510*720*620mm(vibratory bowl sorter) |
|
Machine weight |
About 200kg |
|
Package size |
About 1060*750*1060mm(machine) About 750*550*590mm(vibratory bowl sorter) |
|
Package weight |
About 175kg(machine) About 90kg(vibratory bowl sorter) |
PRODUCT DETAILS

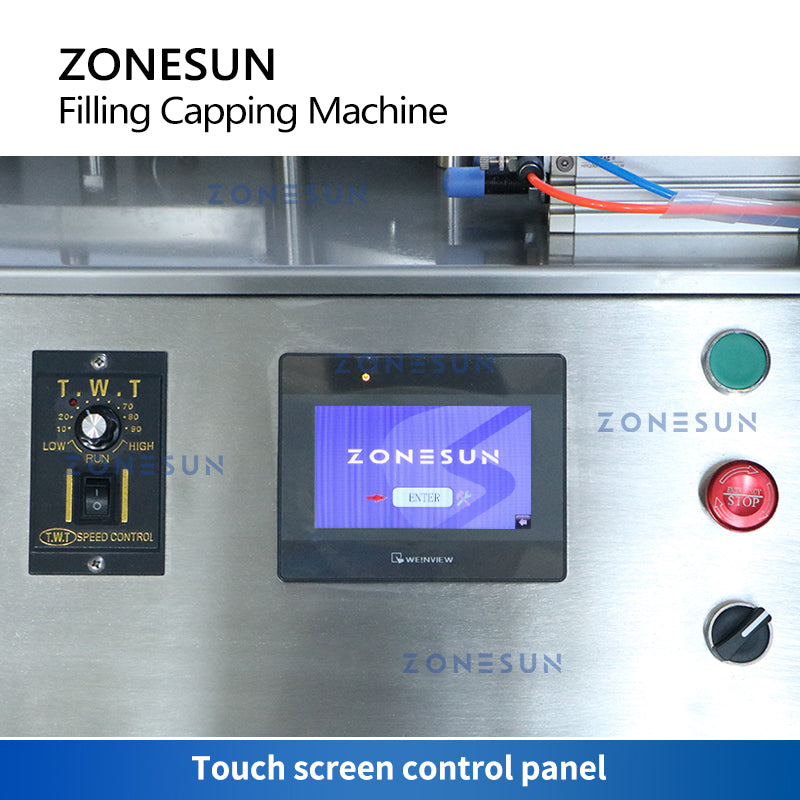

CONTROL PANEL
PLC controls, touch screen, color display. Customization for a local language is available.

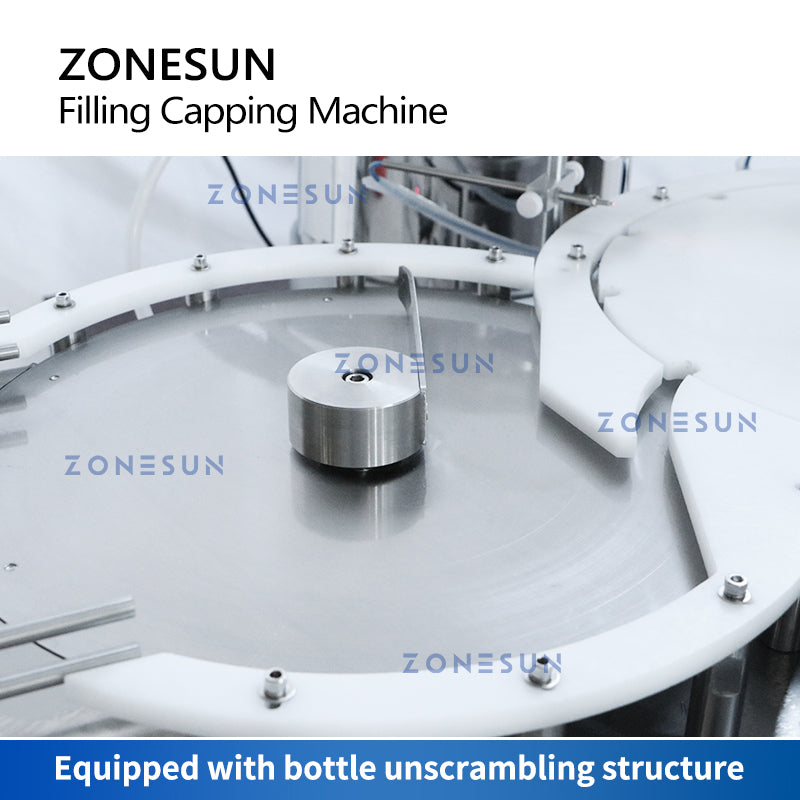

TURNTABLE
Vial unscrambling

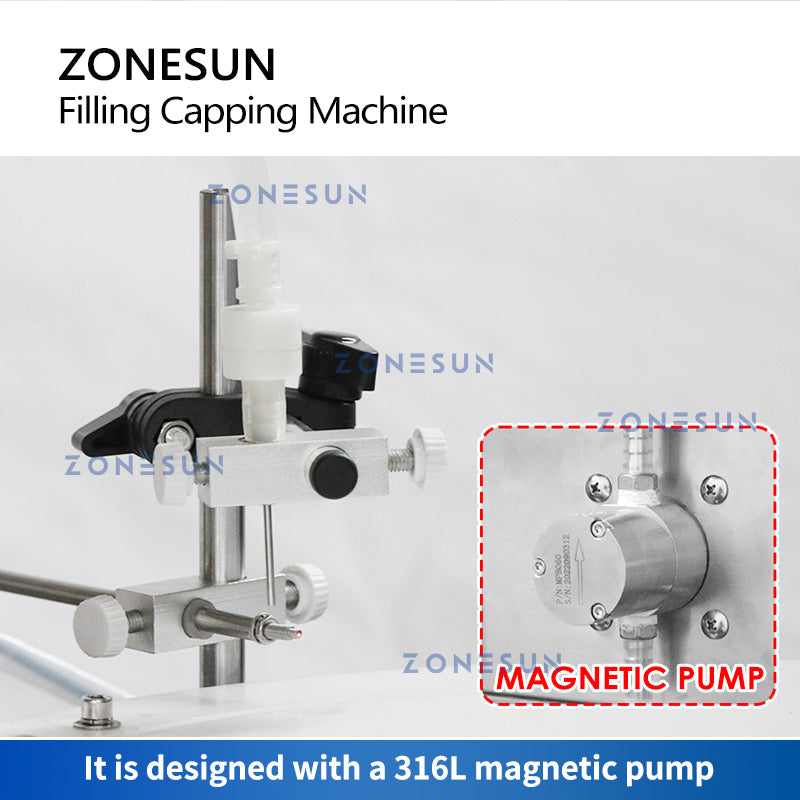

FILLING
Magnetic pump, accurate.
WORKTABLE
12 stations, custom size
FEEDING
With a cap feeder, custom size.
CAPPING
Robotic hand. It won't stop until the cap is screwed.
