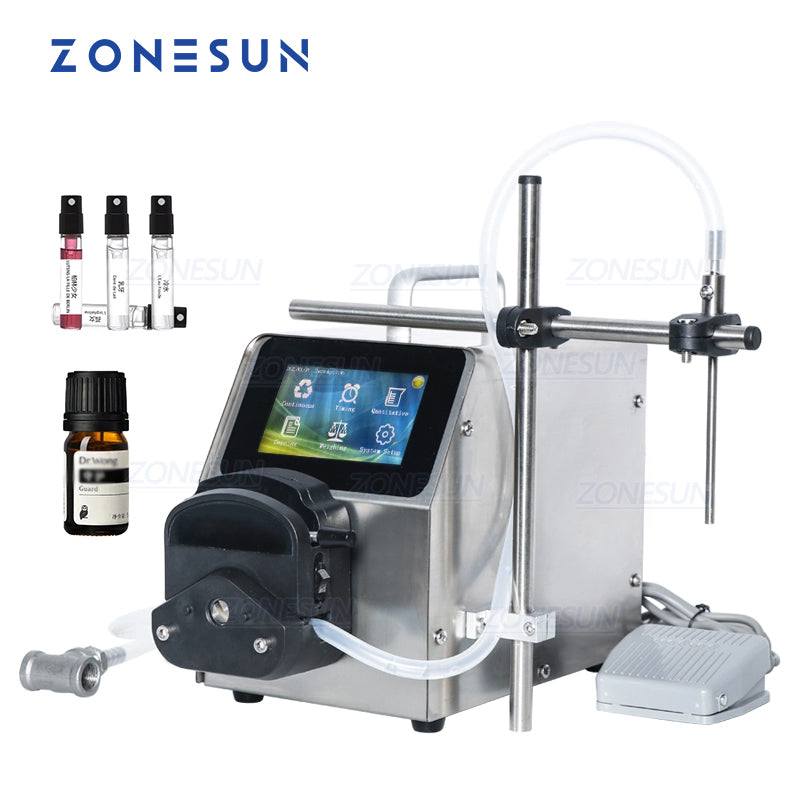

ZONESUN ZS-YTPP6001 1-100ml Semi Automatic Peristaltic Pump Liquid Filling Machine
ZONESUN ZS-YTPP6001 1-100ml Semi Automatic Peristaltic Pump Liquid Filling Machine
受取状況を読み込めませんでした
Parameter
Machine Model |
ZS-YTPP6001 |
Voltage |
220V/110V 50-60Hz |
Power Consumption |
<180W |
Machine Pump |
Peristaltic Pump |
Recommended Filling Range |
1-100mL |
Flow Rate |
0.29-1500mL/min |
Filling Accuracy |
±0.5% |
Filling Nozzle Diameter |
OD 5mm&OD 10mm |
Hose Diameter |
ID 6mm&OD 10mm |
Speed Resolution |
0.01rpm |
Flow Resolution |
0.01μL |
Rotate Speed |
0.1-600rpm |
Angle of Suction |
1-720 degree |
Outlet Pressure |
≤0.55MPa |
Working Temperature |
0-40℃ |
Memory Function out of power |
Available |
Machine Size |
150*235*190mm |
Package Size |
390*260*310mm |
Net Weight |
6.5kg |
Gross Weight |
7.5kg |
Description

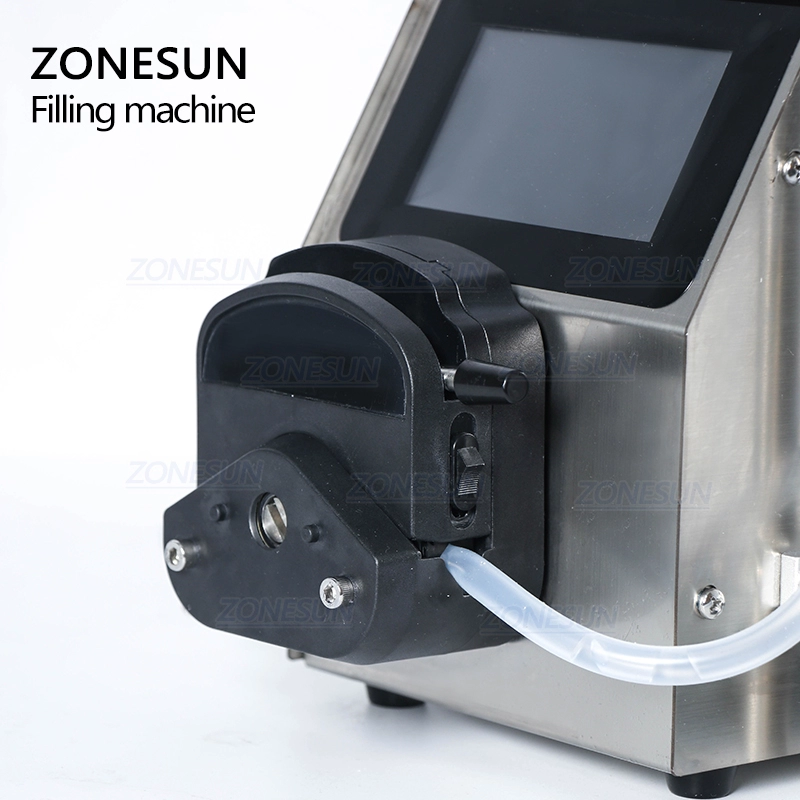

This digital filling machine is suitable for liquid which is without particles, such as solvent, perfume, essential oil, milk, etc. With peristaltic pump, the liquid won't pass through the pump during filling, ensuring the liquid's cleanliness. The touch screen control panel makes it easy to set the technical parameters. It can be widely used in medicine, daily chemical, beverage, cosmetic industries.
