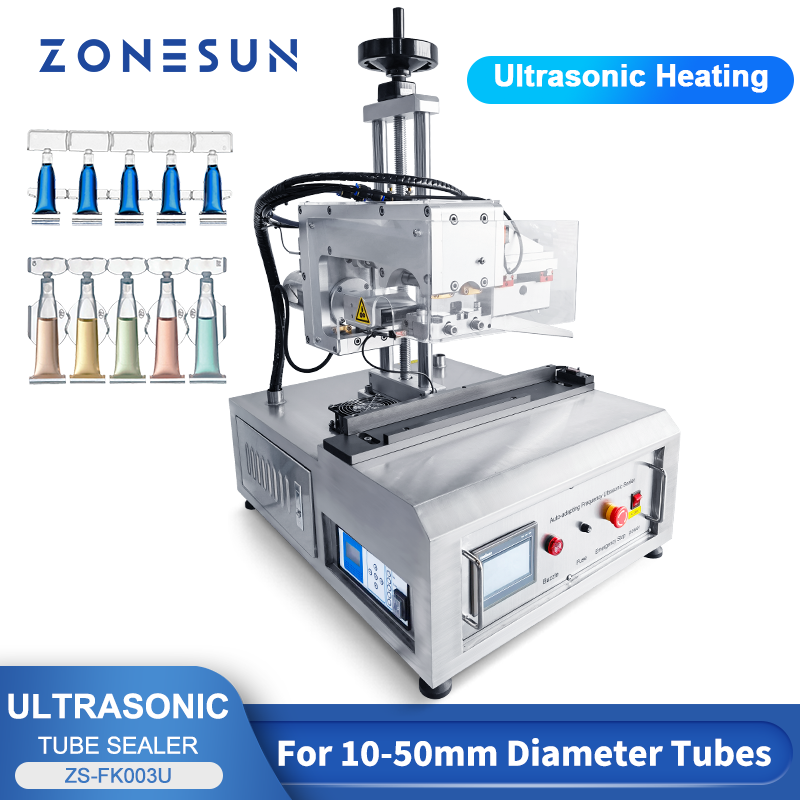

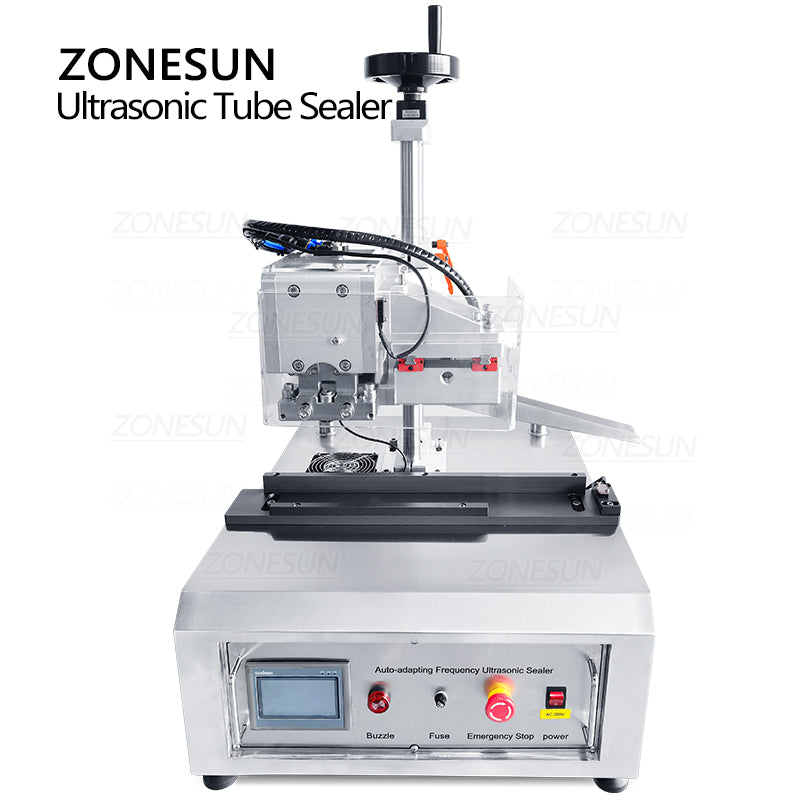

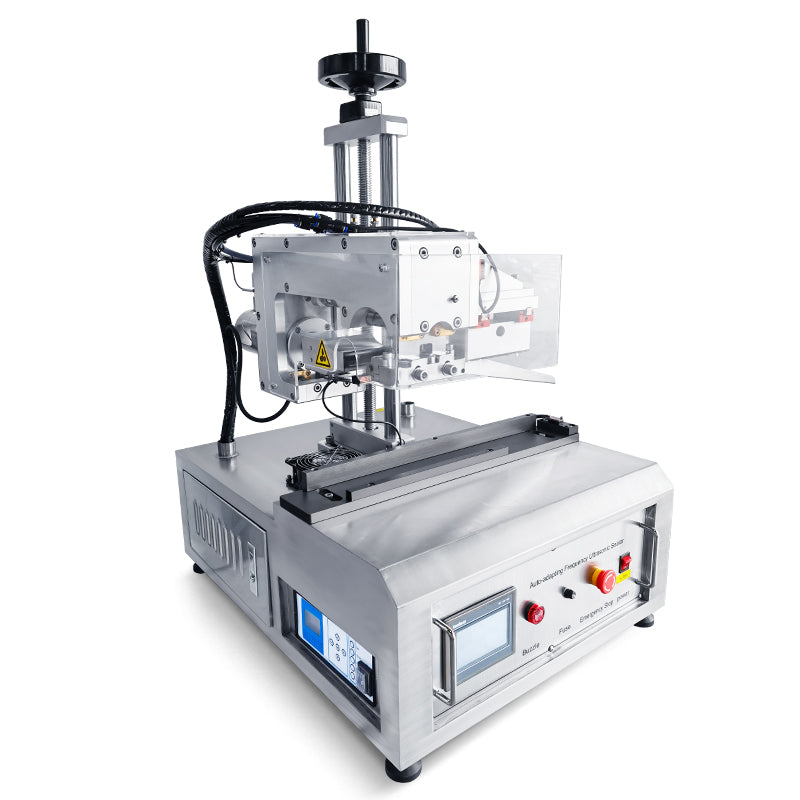

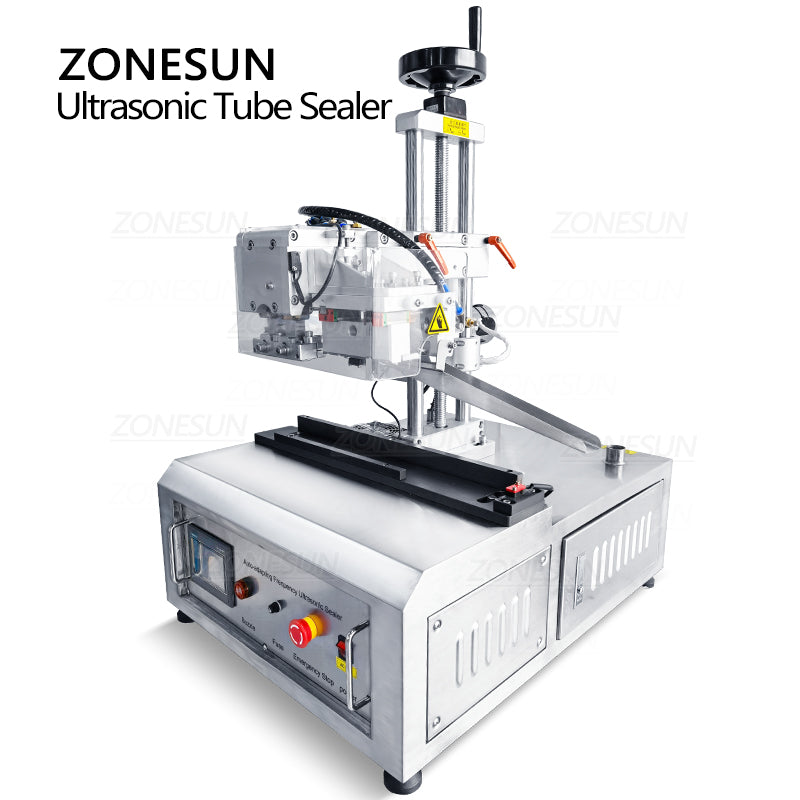

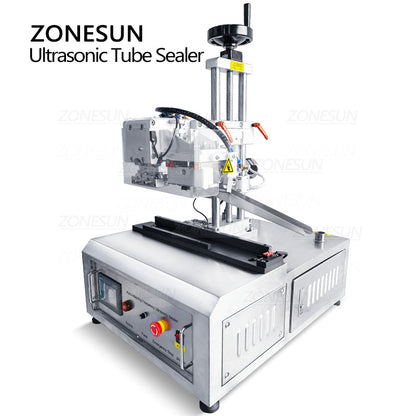

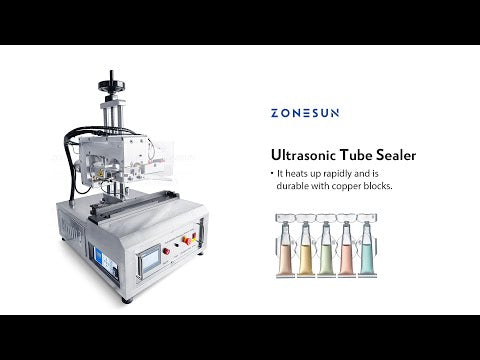

ZONESUN ZS-HS03 Ultrasonic Tube Heat-Sealing Machine
ZONESUN ZS-HS03 Ultrasonic Tube Heat-Sealing Machine
通常価格
$5,899.00 USD
通常価格
セール価格
$5,899.00 USD
単価
あたり
配送料はチェックアウト時に計算されます。
受取状況を読み込めませんでした
DESCRIPTION
This machine is used for sealing tubes. It adopts ultrasonic and heat-sealing. This machine is suitable for soft metal and plastic tubes which are 10-50mm in diameter.This machine is widely used in the food, cosmetics, and daily chemical industries.
PARAMETER
|
Model |
ZS-FK003U |
|
Voltage |
220V/110V 50/60Hz |
|
Power |
600W |
|
Frequency |
20kHz |
|
Tube Height |
10-250mm |
|
Sealing Diameter |
10-50mm |
|
Capacity |
8-18pcs/min |
|
Air Pressure |
0.5-0.6MPa |
|
Dimension |
56*53.7*88cm |
|
Net Weight |
105KG |
|
PLC |
Coolmay |
|
Relay |
OMRON |
|
Cylinder |
AirTAC/XINGCHEN |
|
SensorSensor |
SICK |
|
Stepping Motor |
JUST MOTION CONTROL |
|
Solenoid Valve |
AirTAC |
|
Air Source Processor |
AirTAC |
PRODUCT DETAILS
HEIGHT
The sealing height is adjustable with a knob. It is applicable to tubes that are 10-250mm in height.

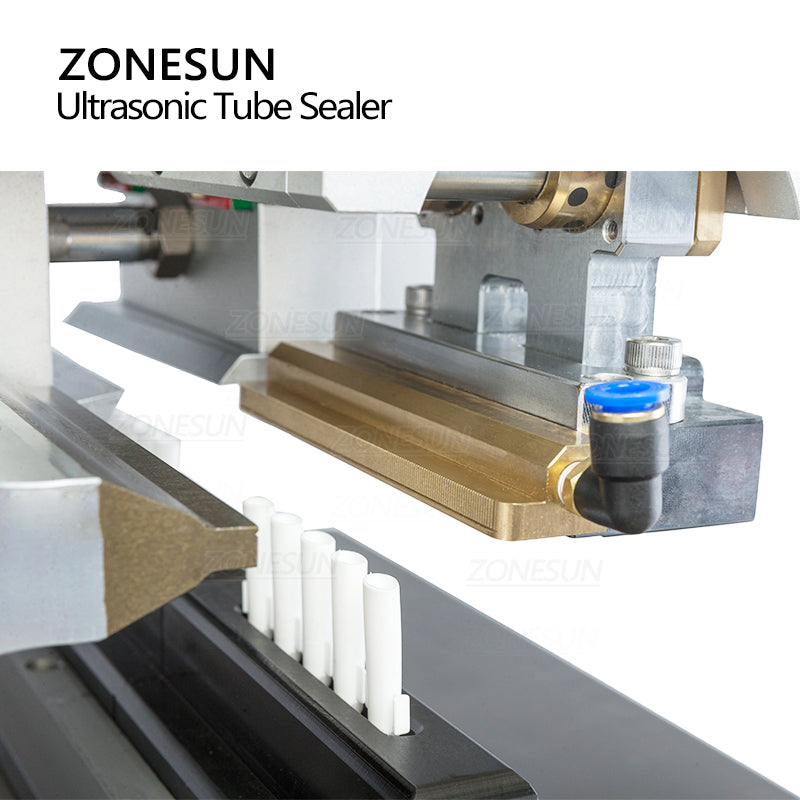

COPPER BLOCKS
It adopts ultrasonic to heat up rapidly and is durable with copper blocks.

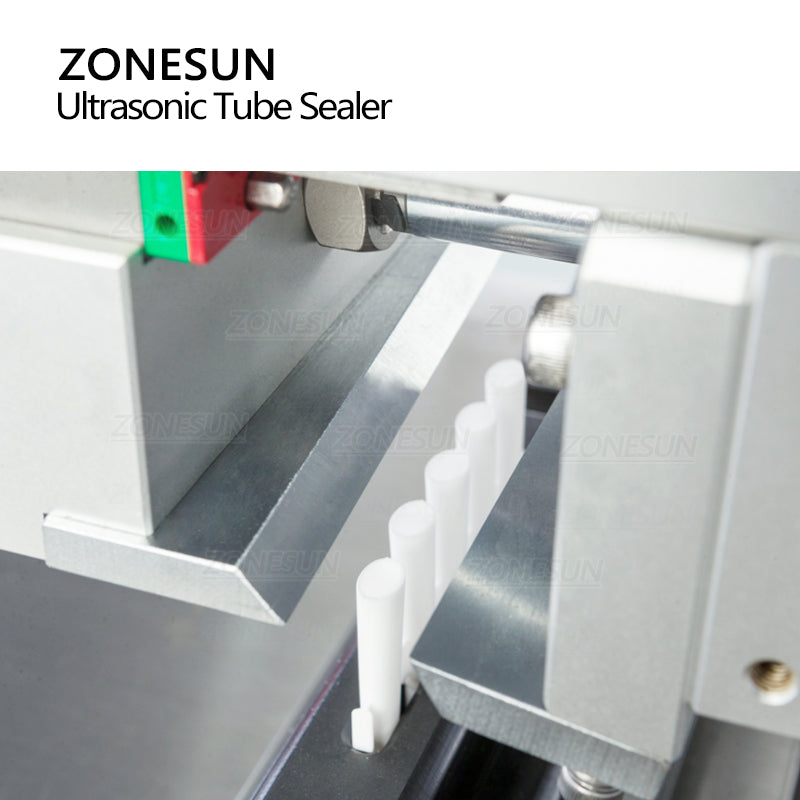

CUTTER
The height of the cutter is also adjustable. It is made of alloy steel and it can automatically remove the tails to the trough.

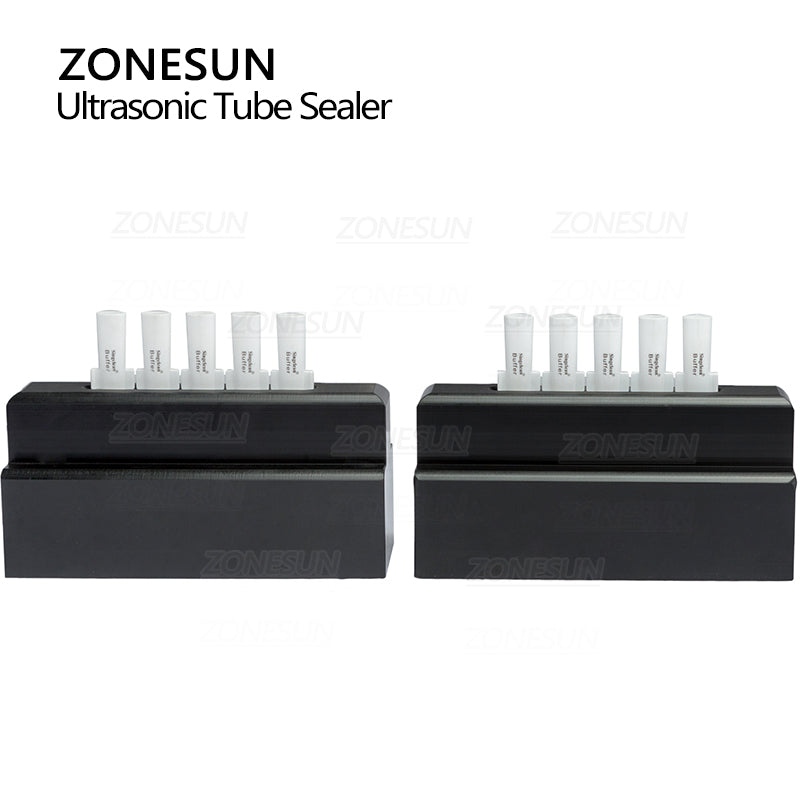

CUSTOMIZABLE JIG
The jig is customizable for the tubes that are 10-250mm in height and 10-50mm in diameter.
