ZONESUN ZS-FAL180A9 Customized 4 Nozzles Paste Liquid Filling and Irregular Bottle Caps Capping Machine Production Line
ZONESUN ZS-FAL180A9 Customized 4 Nozzles Paste Liquid Filling and Irregular Bottle Caps Capping Machine Production Line
픽업 사용 가능 여부를 로드할 수 없습니다.
DESCRIPTION

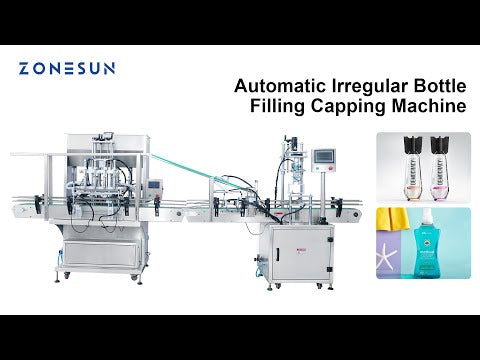

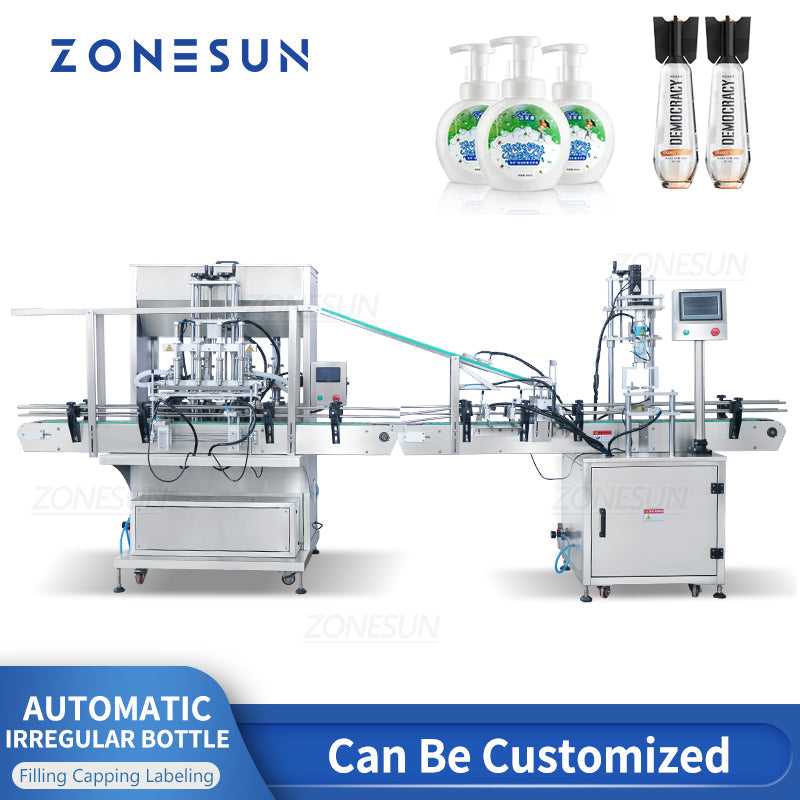

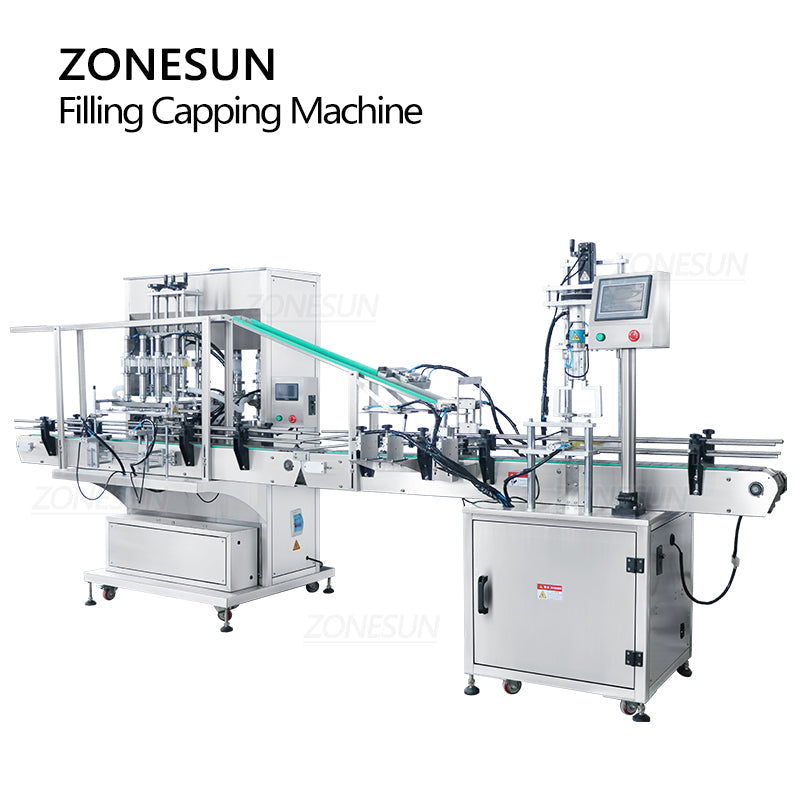

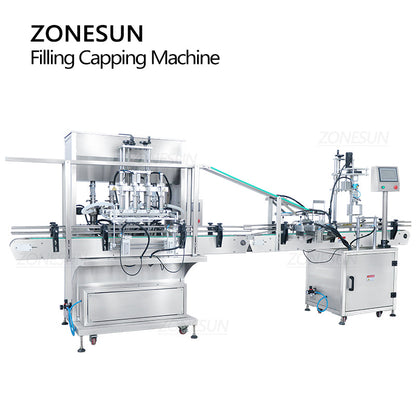

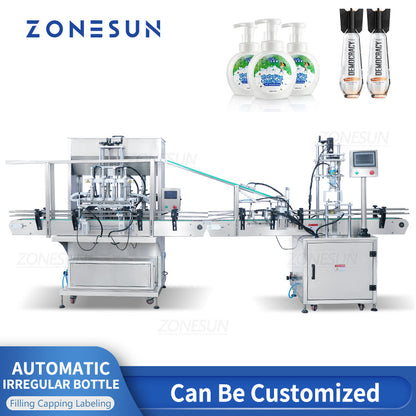

This combination is used for filling liquid and capping irregular bottles. It can be assembled with labeling machine to realize automated production line. It is widely used in food, beverages, daily chemical, and cosmetics industries.
APPLICATION

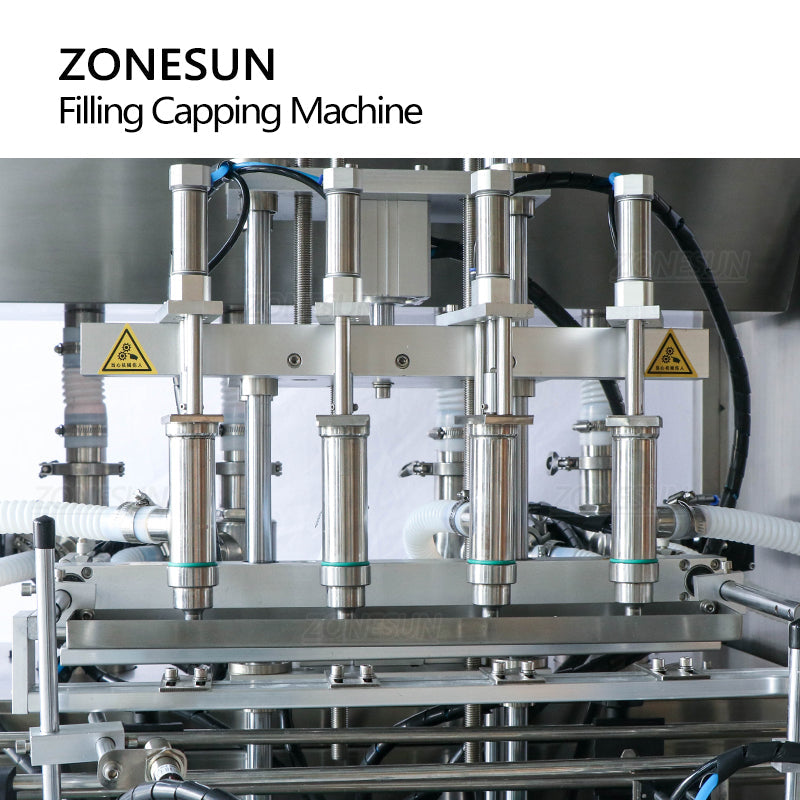

This four nozzles filling machine is suitable for filling paste or liquid , such as laundry detergent, shampoo, honey, juice, milk, etc. It is suitable for customized bottles.
PARAMETER
- Filling Machine
|
Model |
ZS-SV4GB |
|
Voltage |
110/220V 50-60HZ |
|
Filling Range |
5-100ml/10-300ml/50-500ml/100-1000ml/500-3000ml/ 1000-5000ml |
|
Working Speed(base on water) |
20-80 bottles/min |
|
Filling Accuracy |
≤2% |
|
Conveyor size |
2000*100mm(L*W) |
|
Size of filling nozzle |
OD15mm |
|
Size of air compressor connector |
Φ8mm |
|
Power of whole machine |
800W |
|
Machine size |
About 2000*1100*1750mm |
|
Package size |
About 1310*1140*2190mm |
|
Net weight/Gross weight |
About 270kg/347kg |
- Capping Machine
|
Model |
ZS-XG440F |
|
Machine Power |
About 800W |
|
Bottle Diameter |
About 30-100mm |
|
Bottle Height |
About 250mm |
|
Cap Diameter |
20-60mm |
|
Working Speed |
About 20-35 bottles/min(Depend on cap size and shape) |
|
Machine Size |
About 710*610*1750mm |
|
Machine Weight |
About 136kg |
|
Package Size |
About 1560*740*1890mm |
|
Package Weight |
About 210kg |
