ZONESUN ZS-GP631 50-8000ml Semi Automatic Gear Pump Liquid Filling and Weighing Machine
ZONESUN ZS-GP631 50-8000ml Semi Automatic Gear Pump Liquid Filling and Weighing Machine
Couldn't load pickup availability
|
Machine Model |
ZS-GP631 |
|
Machine Power |
220V/110V 50-60Hz 210W |
|
Machine Pump |
Gear Pump |
|
Max Flow Rate |
8L/min |
|
Filling Range |
50mL-8L |
|
Weighing Range |
50g-10kg |
|
Suitable Liquid Temperature |
＜90℃ |
|
Repetitive Error |
±10g |
|
Filling Nozzle Diameter |
Φ12mm&Φ19mm |
|
Hose Diameter |
12mm(ID)/16mm(OD) |
|
Hose Length |
2m(inlet)/2m(outlet) |
|
Max Suction Distance |
4m |
|

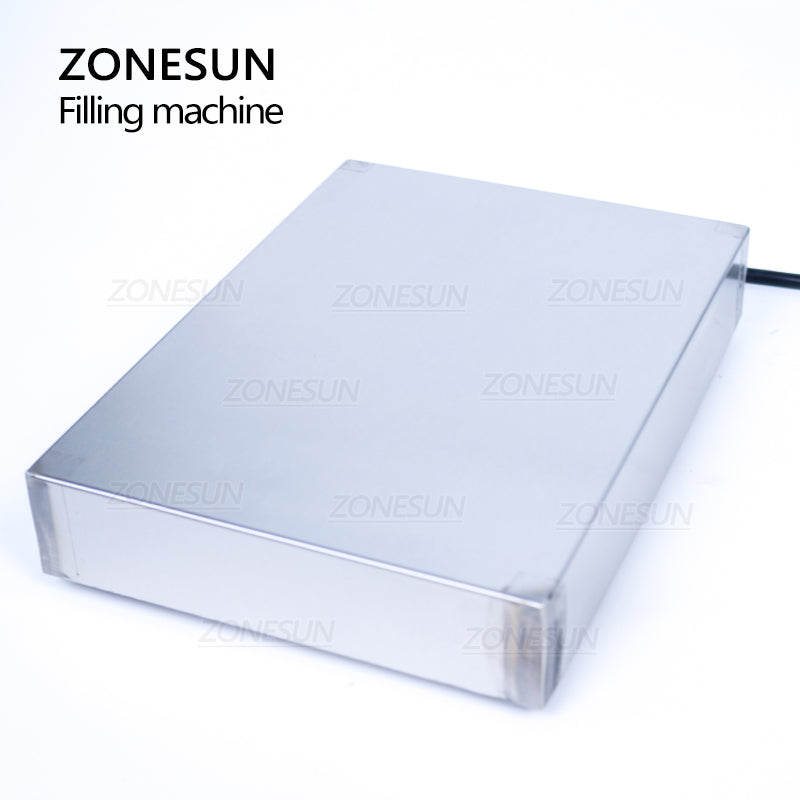

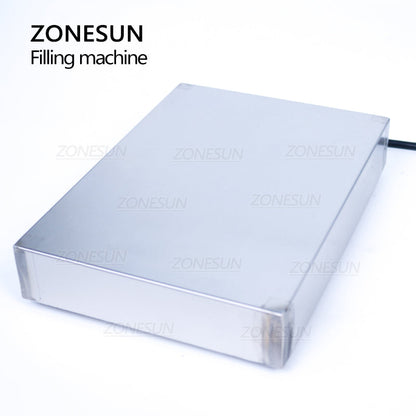

Weighing Device Size |
180*250*42mm |
|
Machine Weight |
9kg |
|
Machine Size |
280*275*160mm |
|
Package Weight |
9.5kg |
|
Package Size |
400*365*240mm |
Description

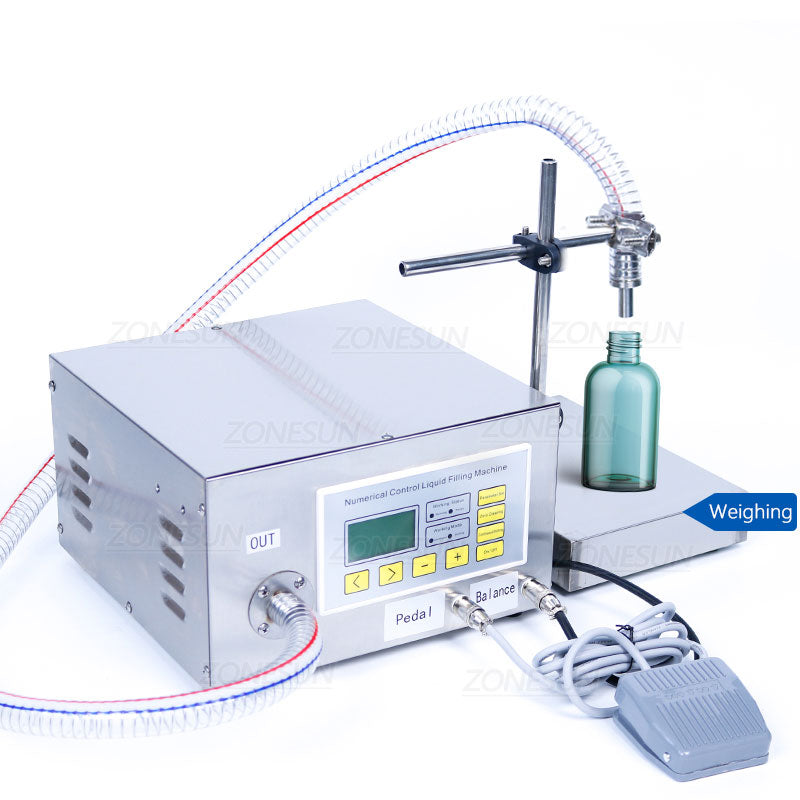

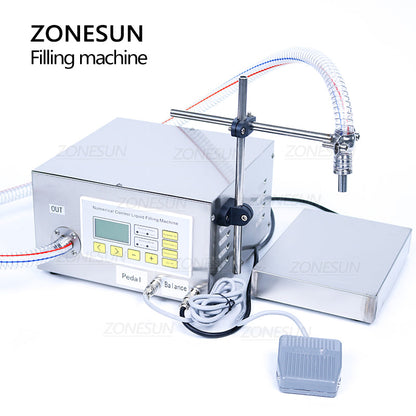

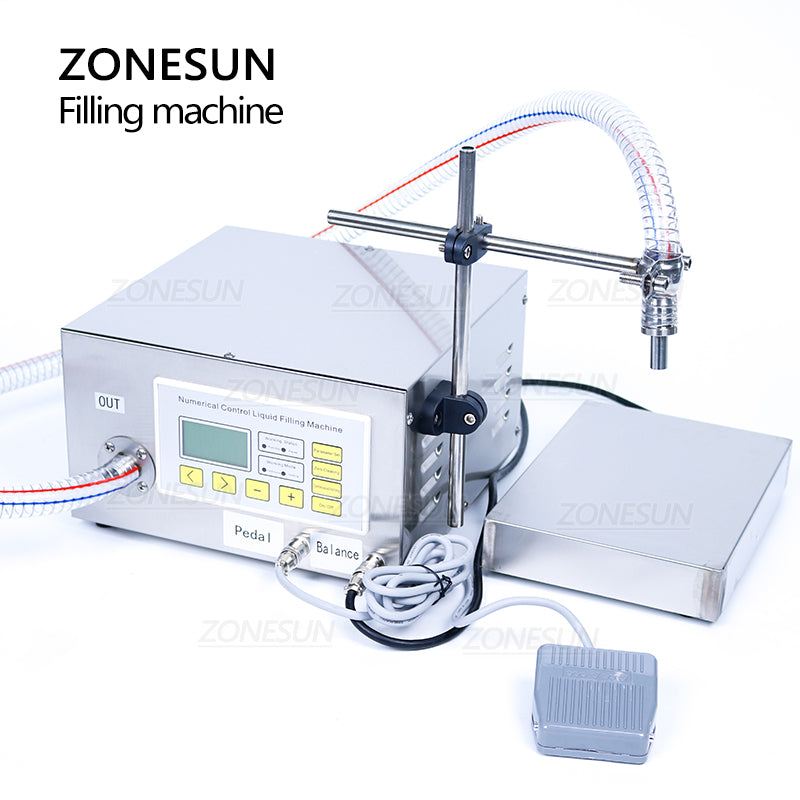

This gear pump weighing filling machine is suitable for filling oil, such as edible oil, lubricating oil, engine oil, hydraulic oil, etc. It is not suitable for filling water. With weighing function, it can fill oil more accurately. It can be widely used in food, daily chemical, cosmetic industries.
