ZONESUN

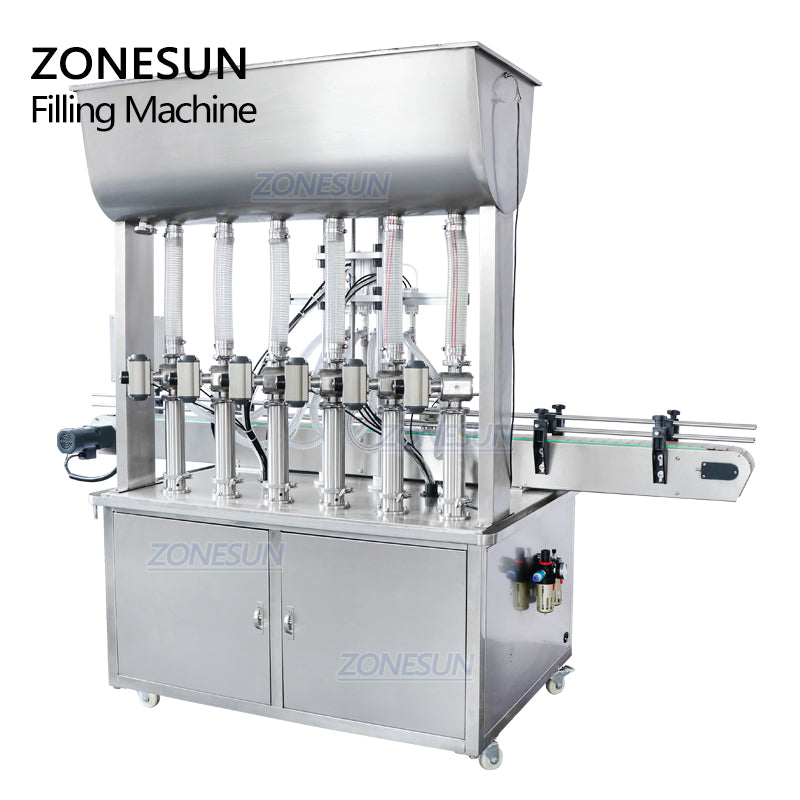

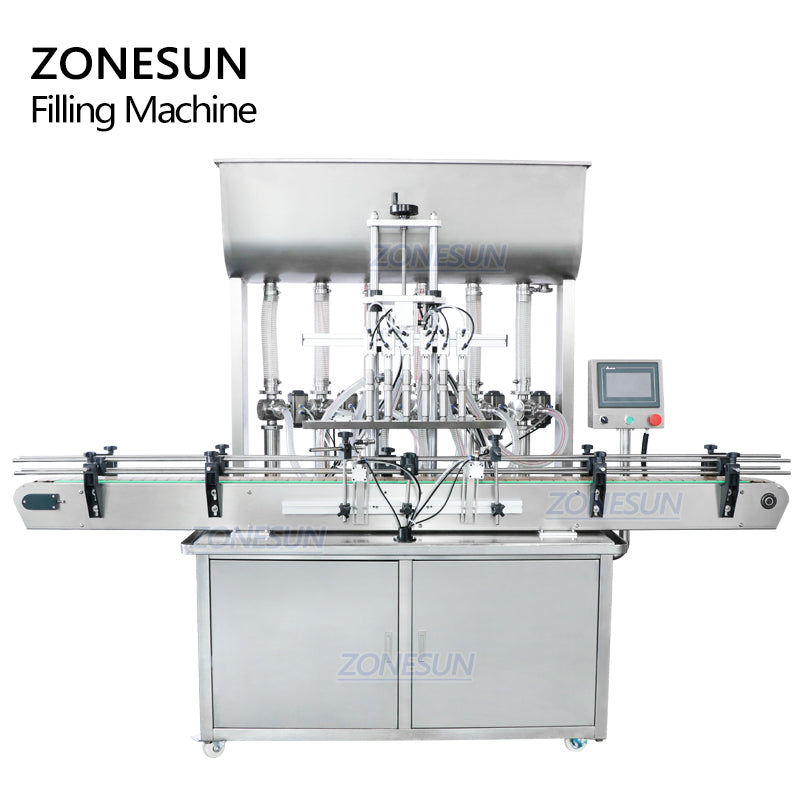

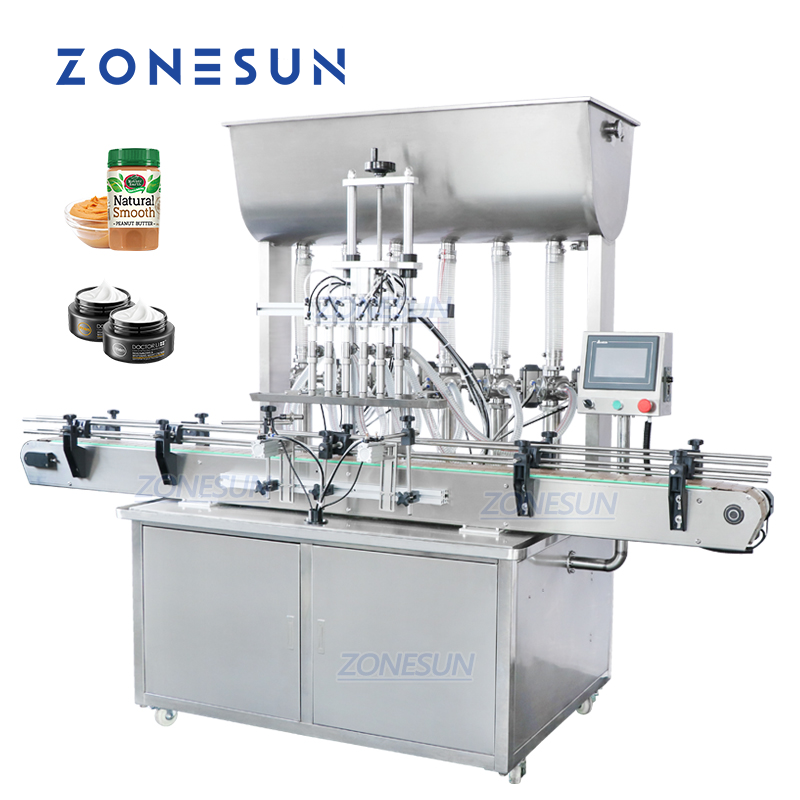

ZONESUN ZS-YT6T-6P Pneumatic Paste/Viscous Liquid Piston Pump Filling Machine

ZONESUN ZS-YT6T-6P Pneumatic Paste/Viscous Liquid Piston Pump Filling Machine

Обычная цена $6,199.00 USD
Обычная цена Цена со скидкой $6,199.00 USD
Распродажа Продано
Стоимость доставки рассчитывается при оформлении заказа.
Size
Filling range
Voltage

DESCRIPTION

This machine is used for filling viscous liquid and paste. It adopts piston pump, which is powerful and accurate in filling. This machine is widely used in food, daily chemical and cosmetics industries. It is customizable for more nozzles.

APPLICATION

This machine is suitable for filling paste such as honey, glue, syrup, ketchup, etc.

PARAMETER

Model

ZS-YT2T-2P

ZS-YT4T-4P

ZS-YT6T-6P

ZS-YT8T-8P

Voltage

 110/220V 50-60HZ

Flling Range

5-100ml/10-300ml/50-500ml/100-1000ml/500-3000ml/1000-5000ml

Working Speed

(base on water)

10-40bottles/min

20-50bottles/min

30-70bottles/min

40-80bottles/min

Filling Accuracy

 ≤±1%

Machine weight

220kg

260kg

300kg

600kg

Power of whole machine

 800W

Dimension

200x120x230

cm

200x120x230

cm

250x130x230

cm

280x130x250

cm






PRODUCT DETAILS

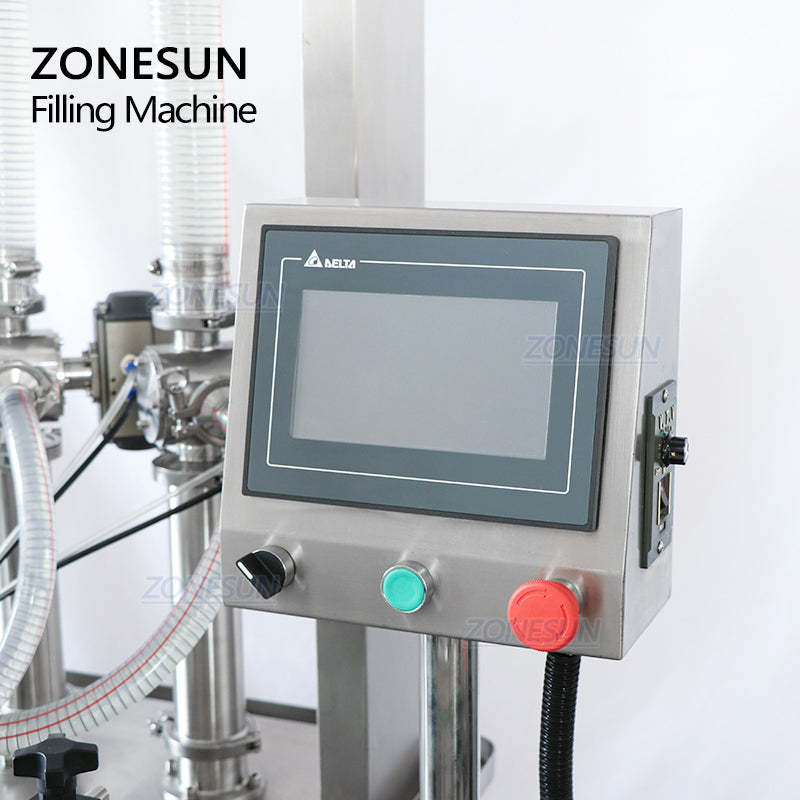

This machine is installed with touch screen control panelit is more intuitive and no need to train for operators.We can Customize different languages of control panel according to your needs.Please contact us if you need this.

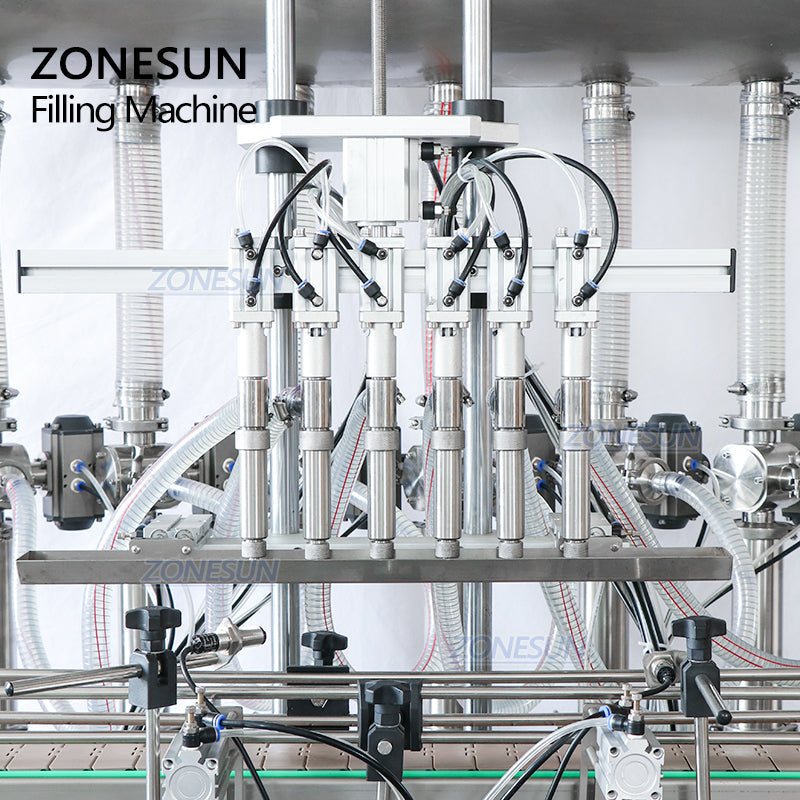

The number of flling nozzle can be customized according to production needs.Each nozzle is with anti-dripping design,ensure the cleanliness of the machine and products.Each nozzle can be controlled separately,different kinds of filling materials can be flled at the same time.

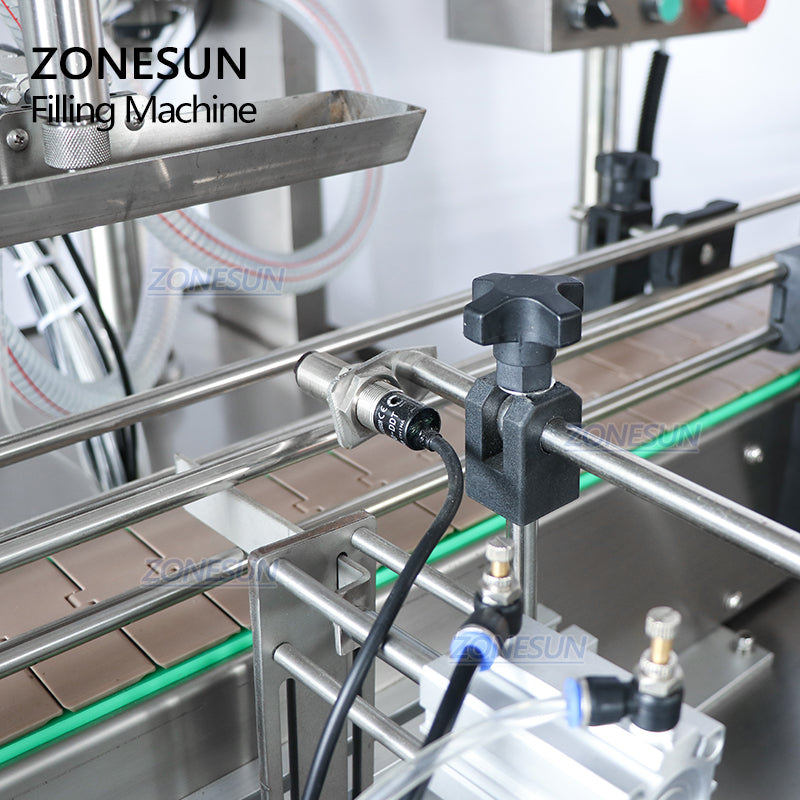

This machine is installed with high quality electric eyes,ensure passing by bottles can be clamped and released precisely,improve filling accuracy.


1







The high quality conveyor belt ensure products can be transferred smoothly,we can customize the material and length of the conveyor belt.The working speed can be controlled by rotating the knob on the right side of the control panel.







The high quality motor can ensure the smooth running, fuel efficiency performance of the whole machine mproves usage experience.






1

The level sensor can be used to detect the liquid level and work with feeding pump to control the machine to pump filling material automatically,help you save labor and time,improves your working efficiency.
