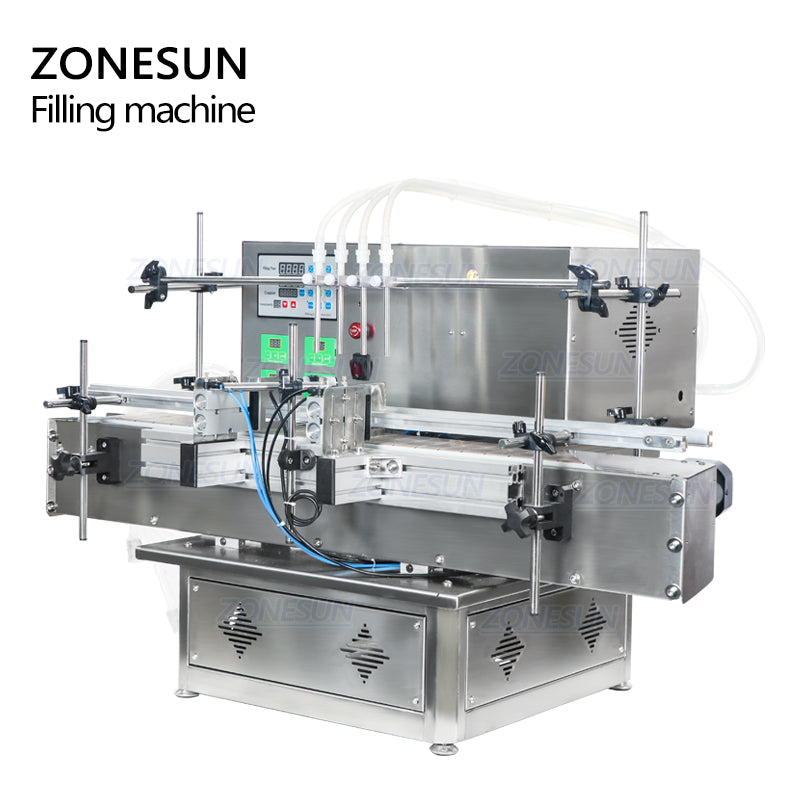

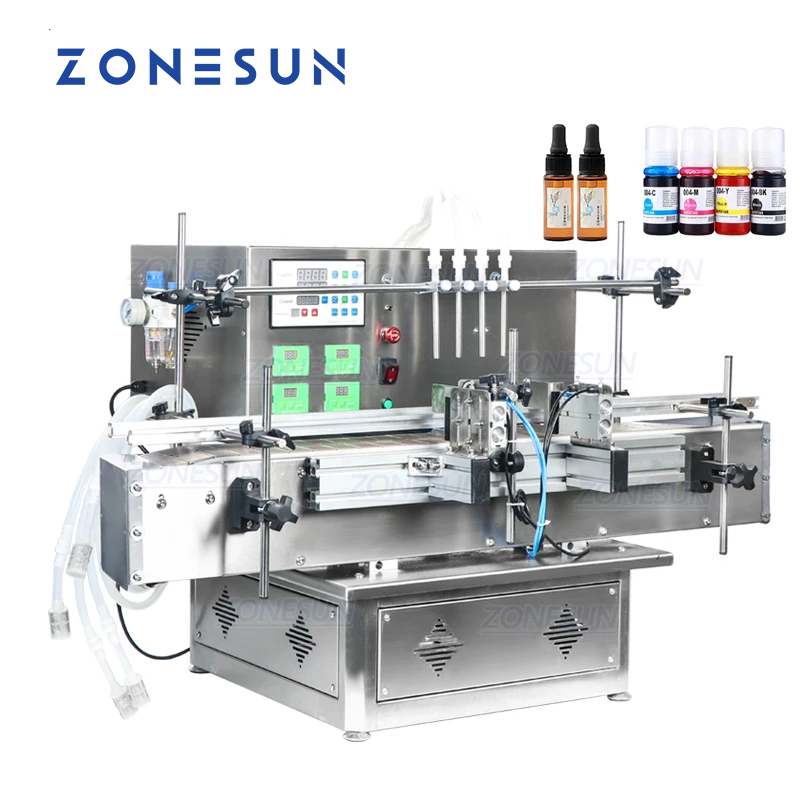

ZONESUN ZS-DTPP4C 4 Heads Peristaltic Pump Liquid Filling Machine With Conveyor
ZONESUN ZS-DTPP4C 4 Heads Peristaltic Pump Liquid Filling Machine With Conveyor
Не удалось загрузить сведения о доступности самовывоза
Parameter
|
Machine model |
ZS-DTPP4C |
|
Power supply |
AC110V/220V 50Hz-60Hz 60W(Each Pump) |
|
Filling range |
2400ml/min |
|
Maximum flow |
2400ml/min for each nozzle (based on water ) |
|

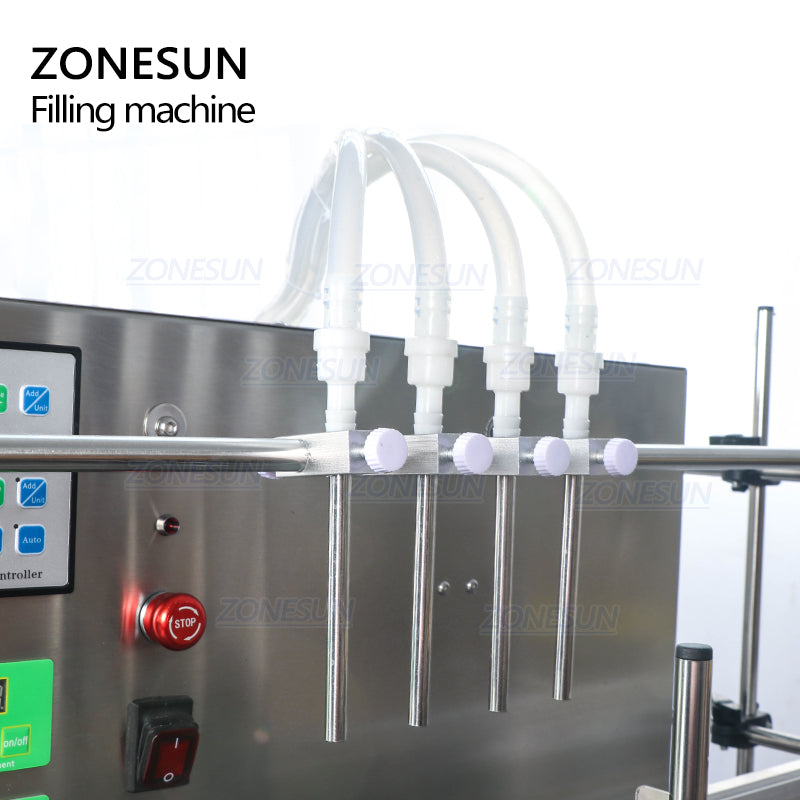

Filling nozzles |
4(we can customize the nozzles based on your demands) |
|
Working speed |
30-50 bottles/min(based on bottles and liquids) |
|
Air pressure |
0.3-0.4MPa |
|
Filling accuracy |
≤±1% (For water) |
|
Diameter of filling nozzle |
6/8mm |
|
Delay range |
0.01-999.9s |
|
Belt length |
1.0m |
|
Size of air compressor connector |
OD8mm |
Description
This automatic filling machine is suitable for liquid that is without particles, such as essential oil, juice, perfume, etc. The four filling nozzles can be controlled separately. With chain conveyor, it can transport heavy products stably, which the belt conveyor doesn't have. The machine can be widely used in cosmetic, daily chemical, catering, pharmaceutical industries.
Attention
This machine can work with tabletop automatic capping machine and labeling machine, realizing automated production. If you need, please contact us. Thank you!
