ZONESUN Automatic Trigger Bottle Packing Line Turnkey Project Detergent Liquid Filling Capping Labeling Machine ZS-MPCL1
ZONESUN Automatic Trigger Bottle Packing Line Turnkey Project Detergent Liquid Filling Capping Labeling Machine ZS-MPCL1
Не удалось загрузить сведения о доступности самовывоза
DESCRIPTION

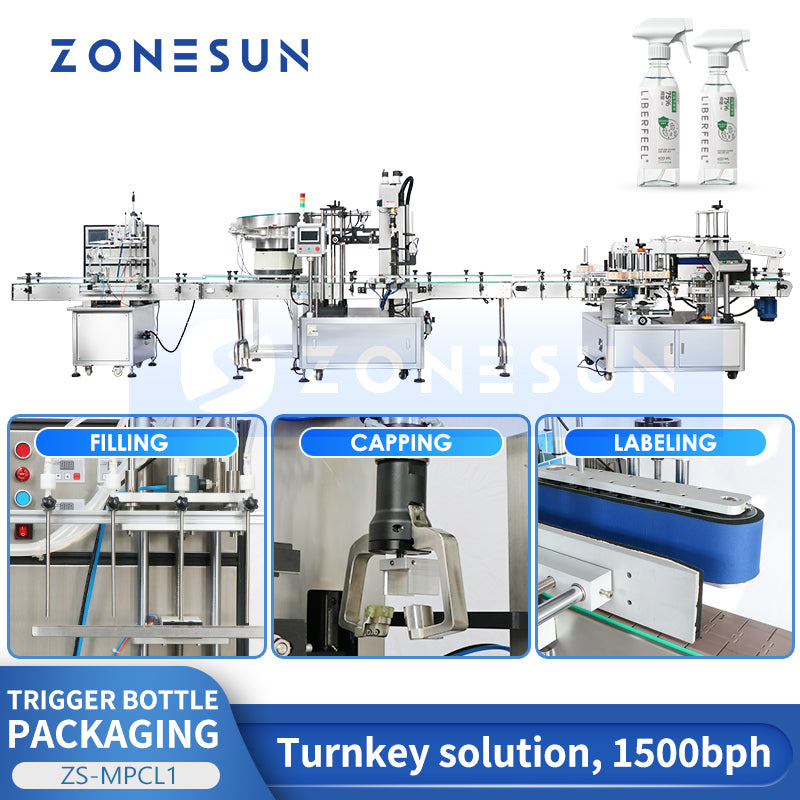

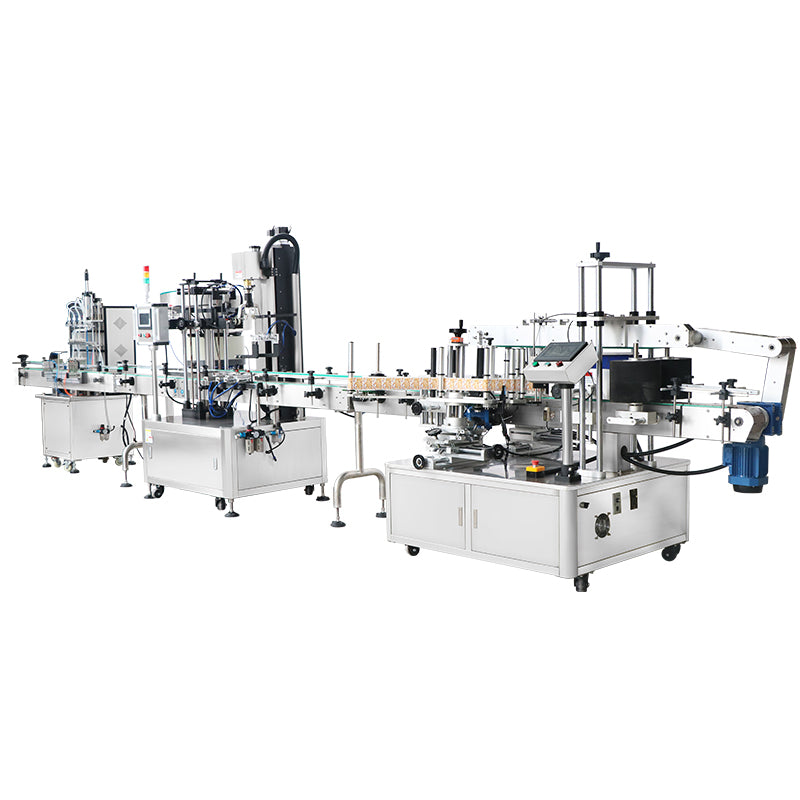

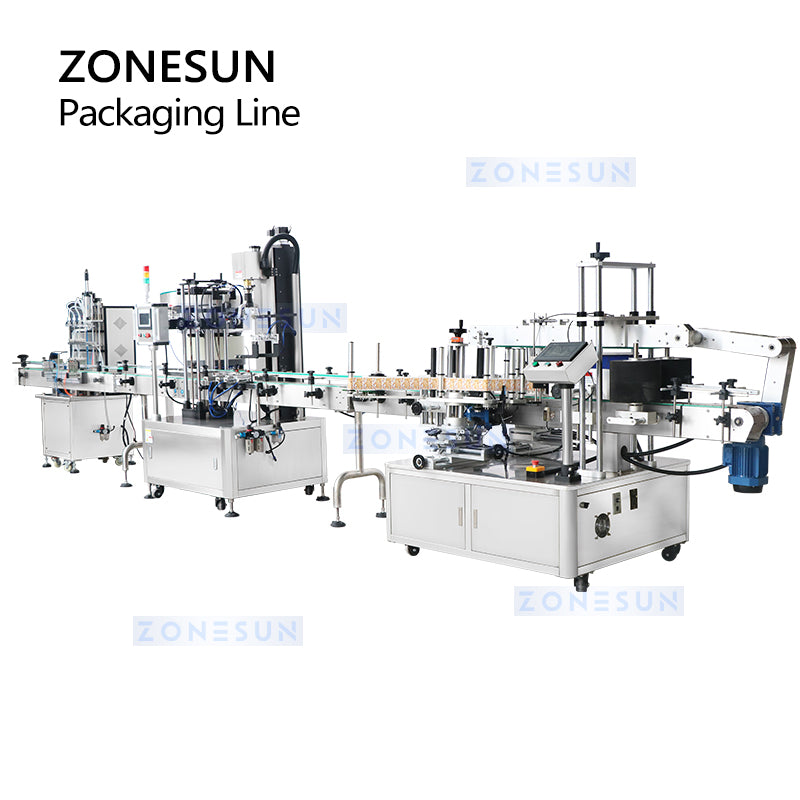

This trigger bottle packaging line is the perfect solution for businesses looking to streamline their packaging process. The line consists of a high-quality filling machine, a reliable capping machine, and a precision labeling machine. With this packaging line, you can efficiently package your trigger bottles with ease. Whatever your packaging needs are, you can rely on ZONESUN.
PARAMETER
|

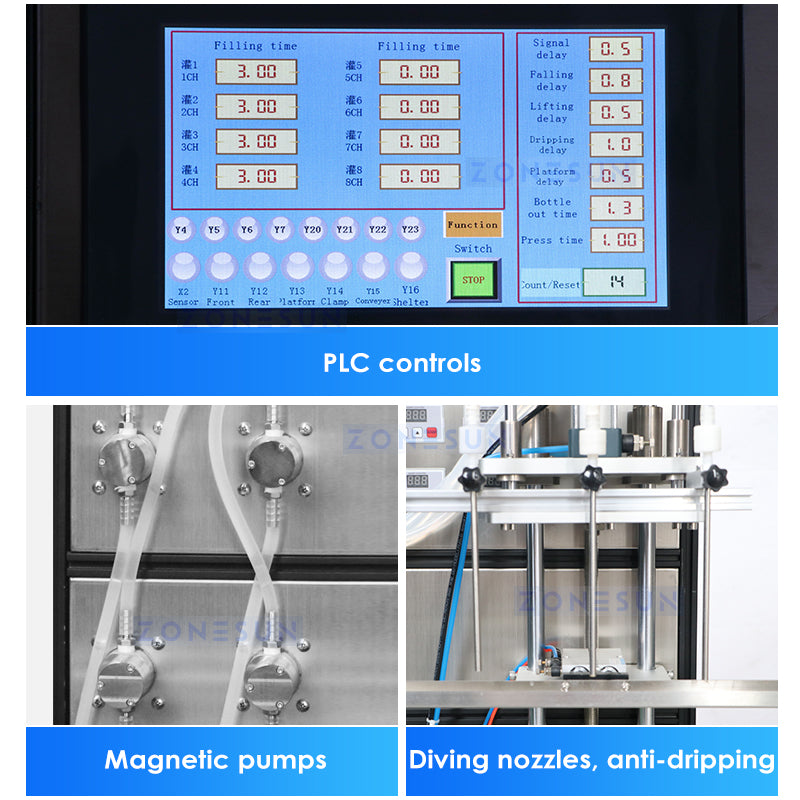

Filling Machine |
ZS-VTMP80C |
||
|
Container size |
φ20-160mm H30-300mm |
||
|
Max flow rate |
6000ml/min |
7500ml/min |
12000ml/min |
|
Material of pump |
316stainless steel |
316stainless steel |
316stainless steel |
|
Filling accuracy |
≤±1% (based on water) |
||
|
Filling speed |
20-50pcs/min |
25-60pcs/min |
40-65pcs/min |
|
Power supply |
220V-50Hz/110V-60Hz |
||
|
The whole machine power |
2000W |
||
|
Size of air compressor connector |
OD 8mm |
||
|
Packing weight |
About 150kg |
||
|
Packing size |
About 2000*820*1580mm |
||
|

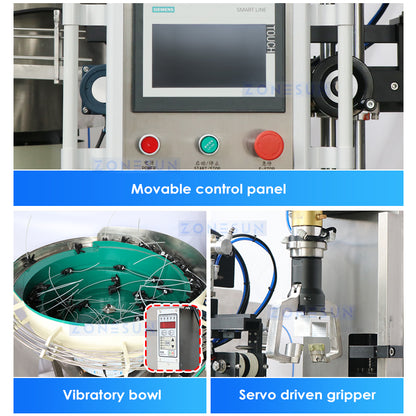

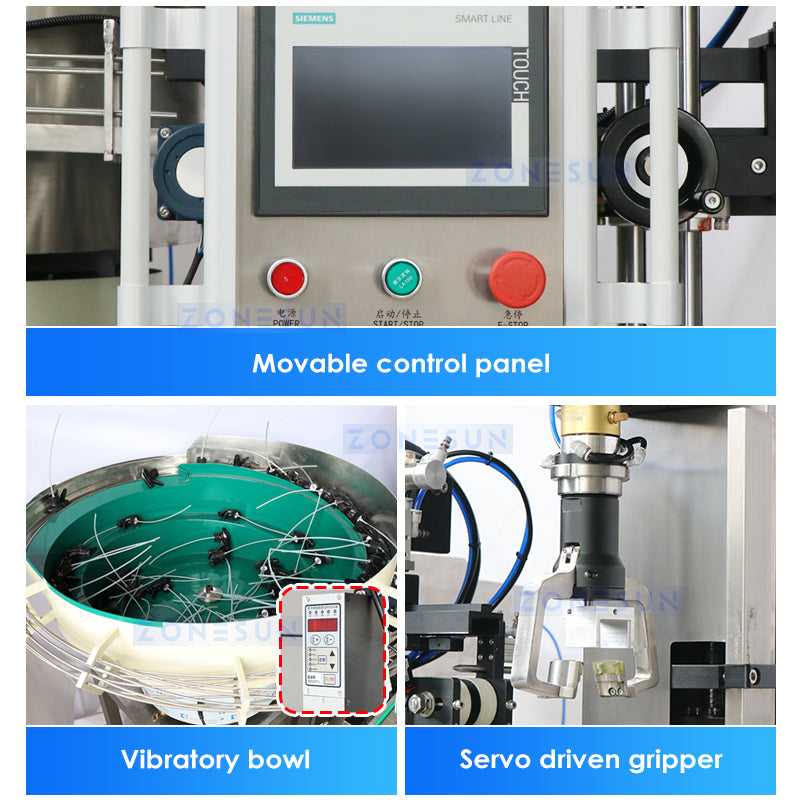

Capping Machine |
ZS-XG445 |
|
Voltage |
110/220V |
|
Power |
900W |
|
Capacity |
5-25 bottles/min (based on bottle and cap size) |
|
Material |
304 SUS |
|
Air pressure |
0.6-0.8Mpa |
|
Suitable bottles |
Customize according to the sample |
|
Cap feeding way |
Pneumatic fetch |
|
Capping way |
Servo drive screw capping |
|
Machine size |
About 2900*950*2000mm |
|
Packaging size |
About 3020*905*2140mm(machine) About 1870*1220*840mm (Vibratory bowl sorter) |
|
Packaging weight |
About 600kg(machine)/ 316kg (Vibratory bowl sorter) |
|

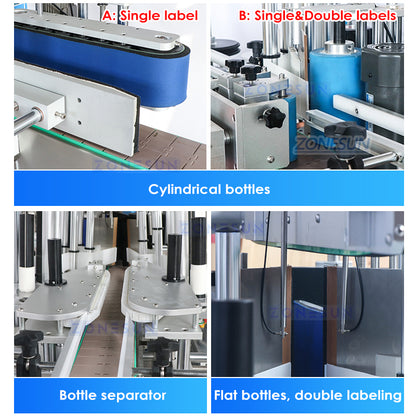

Labeling Machine |
ZS-TB300A |
ZS-TB300B |
|
Labeling capacity(pcs/min) |
60-350PCS /min(depends on bottle size) |
|
|
Labeling material thickness |
20-120mm |
|
|
Labeling material height |
30-350mm |
|
|
Label size(mm) |
(L)25- 300mm (H)15-200mm |
|
|

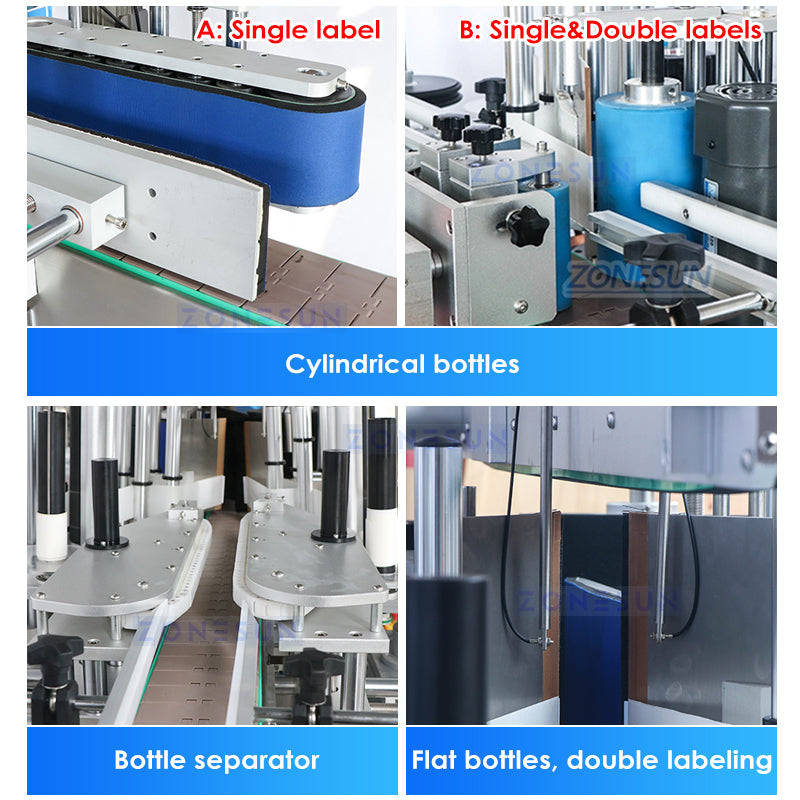

Round Bottle |
Single Side |
Single & Double Side |
|
Flat Bottle |
Double Side |
|
|
Roll inside(mm) |
Φ76mm |
|
|
Roll outside diameter(mm) |
Φ350mm |
|
|
Machine size (mm) |
About 2120*940*1500mm |
|
|
Power supply |
AC220V 50Hz/60Hz 1500W |
|
|
Packing Size |
About 2850*1300*1900mm |
|
|
Net weight/Gross weight |
About 450kg/650kg |
|
