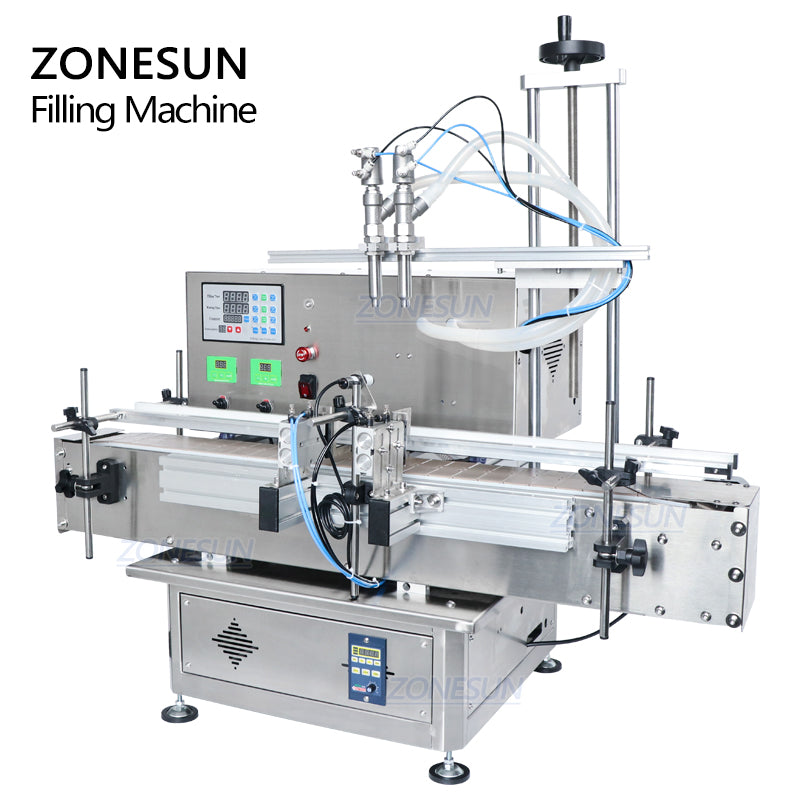

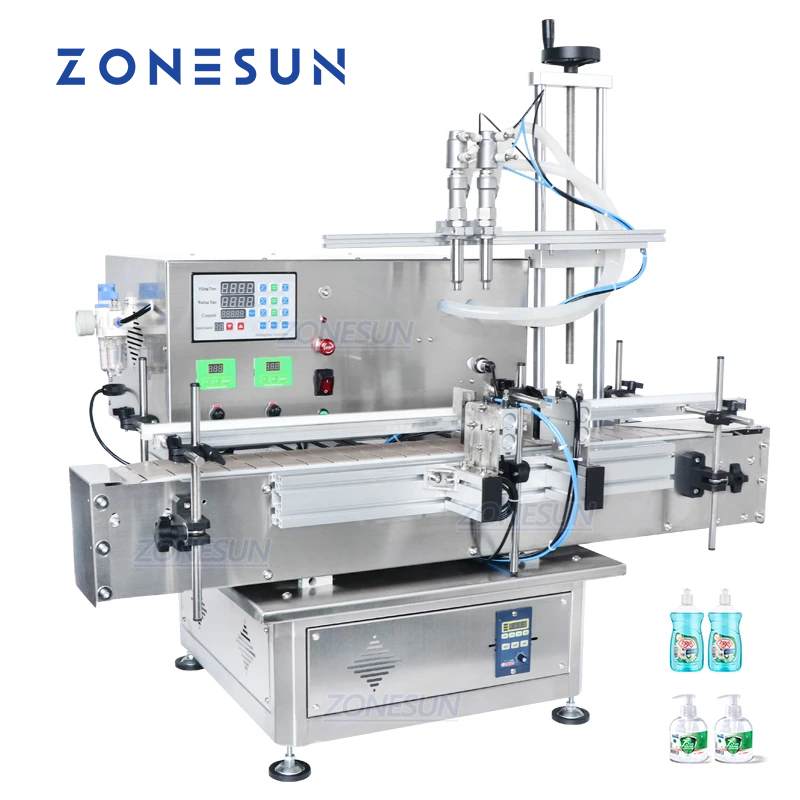

ZONESUN ZS-DTDP20-2 Desktop 2 Heads Diaphragm Pump Liquid Filling Machine
ZONESUN ZS-DTDP20-2 Desktop 2 Heads Diaphragm Pump Liquid Filling Machine
Не удалось загрузить сведения о доступности самовывоза
Parameter
|
Machine model |
ZS-DTDP20-2 |
|
Voltage |
110/220V 50-60HZ |
|
Power |
500W*2 |
|
Maximum flow velocity |
20L/min(Each nozzle and base on water) |
|
Working speed |
20-25 bottles/min * 2 (depends on bottle size and liquid) |
|
Air pressure |
0.3-0.4MPa |
|
Filling accuracy |
¡ܡÀ1% (For water) |
|
Bottle height |
£¼220mm(Can be customized,max height 300mm) |
|
Diameter of filling nozzle |
10mm |
|
Conveyor size |
1130mm*115mm(L*W) |
|
Size of air compressor connector |
OD 8mm |
|
Machine size |
About 1130*710*1070mm |
|
Package size |
About 1150*730*830mm |
|
Net weight/Gross weight |
About 74kg/103.5kg |
Description

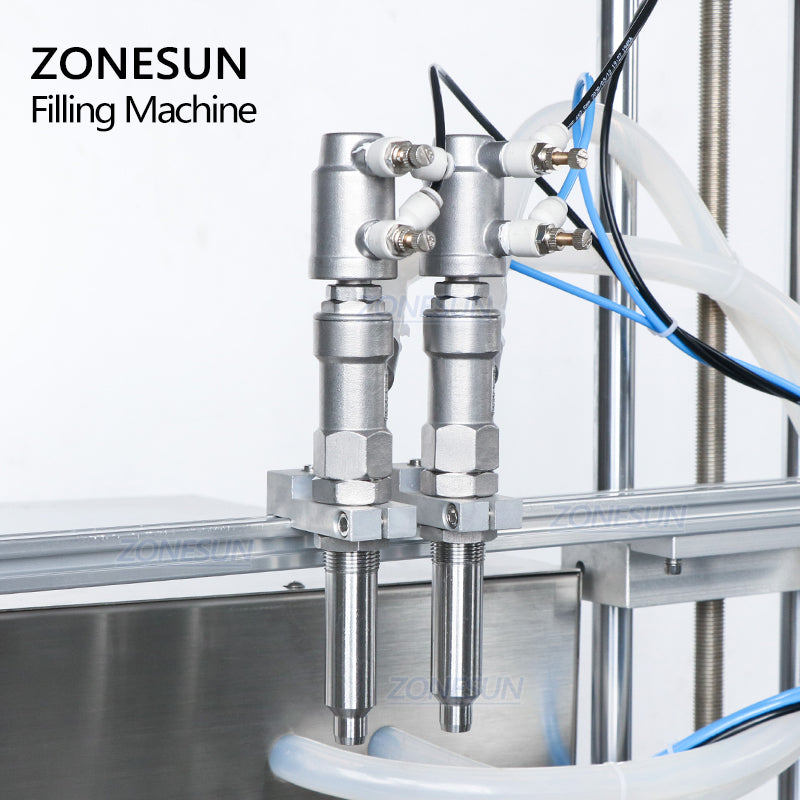

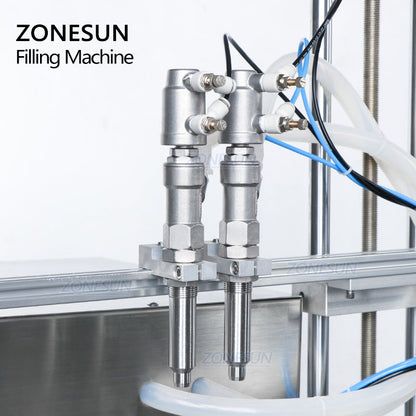

This desktop automatic filling machine is suitable for filling liquid like juice, perfume, milk. Equipped with two pneumatic filling heads, it can also be used for thicker liquid like gel, shampoo, etc. With chain conveyor, it can transport heavy containers smoothly and stably. The machine can be widely used in pharmaceutical, cosmetic, catering, daily chemical industries. Help to improve work efficiency.
Notice
This machine can be used with desktop automatic capping machine and labeling machine, realizing automatic production. If you need, please contact us. Thank you!
