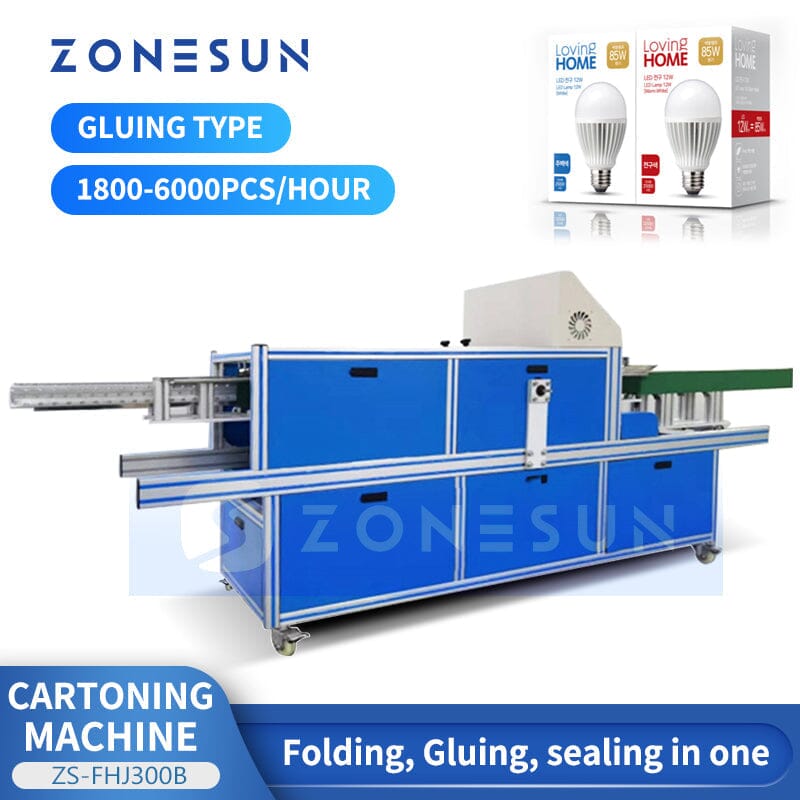

ZONESUN ZS-FHJ300B Automatic Carton Folding Gluing Sealing Machine

ZONESUN ZS-FHJ300B Automatic Carton Folding Gluing Sealing Machine

Обычная цена $8,300.00 USD
Обычная цена Цена со скидкой $8,300.00 USD
Распродажа Продано
Стоимость доставки рассчитывается при оформлении заказа.

DESCRIPTION

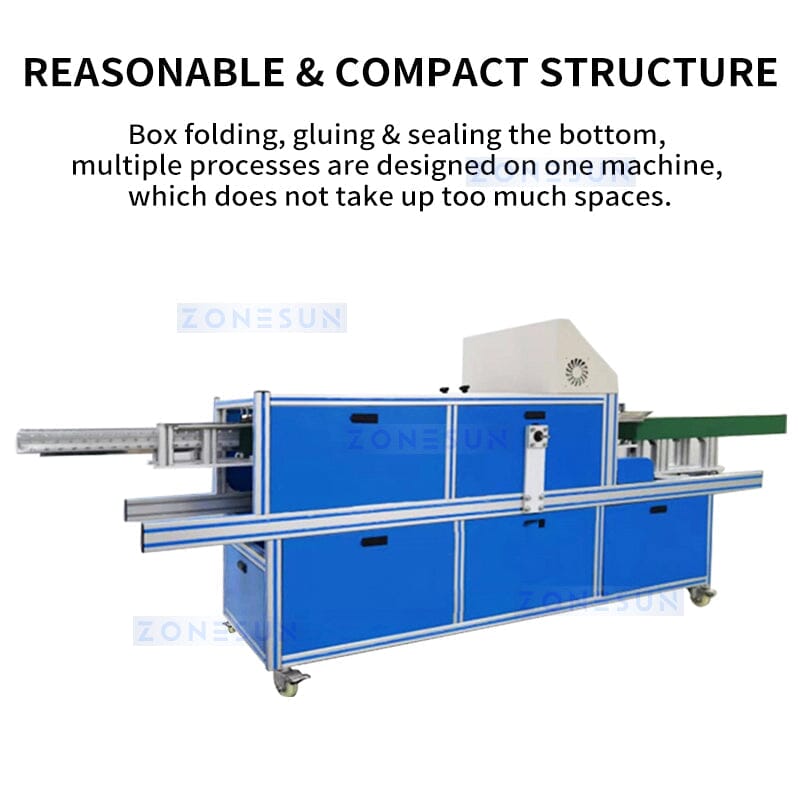

The machine is designed to automate the process of packaging products into cartons. The machine has a front clamping belt that transports boxes with products that have already been loaded into them in a previous process. The boxes are fed into the machine where the top and bottom folds of the box are glued using an adhesive. Once the glue is applied, the machine folds and pastes the top and bottom flaps of the box, creating a secure seal. Finally, the finished boxes are transported out of the machine on a clamping belt system located at the back of the machine.

Whatever your packaging needs are, you can rely on ZONESUN.



PARAMETER

Power Supply

AC220V 50-60Hz, 1.5Kw

Air Pressure

450NL/min, 0.6-0.8Mpa

Production Speed

1800-6000pcs/hour

Applicable Glue

Hot melt adhesive

compatible box

L=80-300mm,
W=40-220mm, H=25~150mm(Customizable)

Time of changing model

 10min

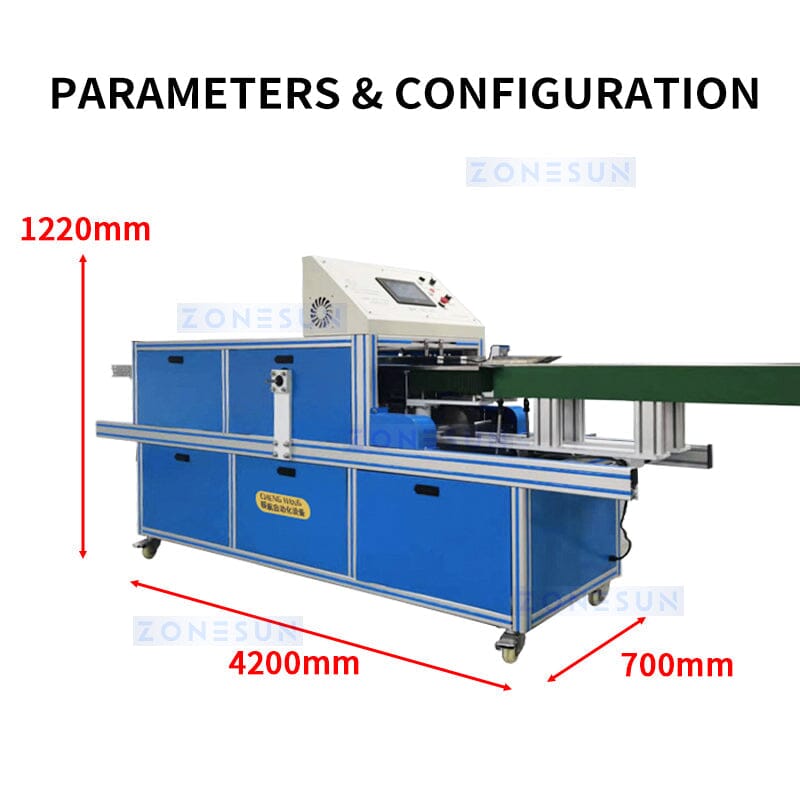

Machine Size

4200mm*700mm*1220mm

Machine Weight

Approx. 480kg
