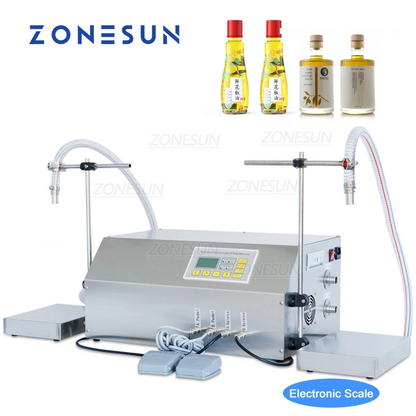

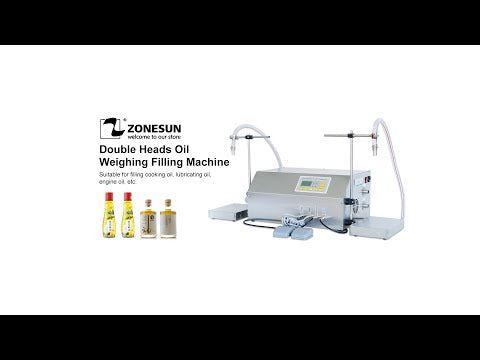

ZONESUN ZS-GP262W 150-18000ml 2 Heads Gear Pump Liquid Filling And Weighing Machine
ZONESUN ZS-GP262W 150-18000ml 2 Heads Gear Pump Liquid Filling And Weighing Machine
Не удалось загрузить сведения о доступности самовывоза
Parameter
|
Machine Model |
ZS-GP262W |
|
Machine Power |
110/220V 50-60Z 550W*2 |
|
Machine Pump |
Gear Pump |
|
Max Flow Rate |
18L/min*2 |
|
Filling Range |
150ml-18L |
|
Weighing Range |
150g-100kg |
|
Filling Error |
About ±10g |
|
Hose Diameter |
19mm( ID ) /25mm( OD ) |
|
Hose Length |
3m( inlet ) /1m( outlet ) |
|
Filling Nozzle Diameter |
12mm/19mm |
|
Max Suction Distance |
4m |
|
Max Head of Delivery |
4m |
|
Suitable Liquid |
engine oil,cooking oil, not suitable for water |
|
Liquid Temperature |
＜90℃ |
|
Machine Size |
550mm*370mm*252mm(L*W*H) |
|
Machine Weight |
25.5kg |
|
Package Size |
700mm*430mm*320mm(machine) 400mm*370mm*260mm(electronic scale) |
|
Package Weight |
27kg |
Description
This gear pump filling and weighing machine is suitable for filling oil, not suitable for water, such as cooking oil, engine oil, lubricating oil, etc. The two nozzles can be controlled separately. With electronic scales, it can fill oil more accurately. The machine can be widely used in food, medicine, chemical, catering industries.
