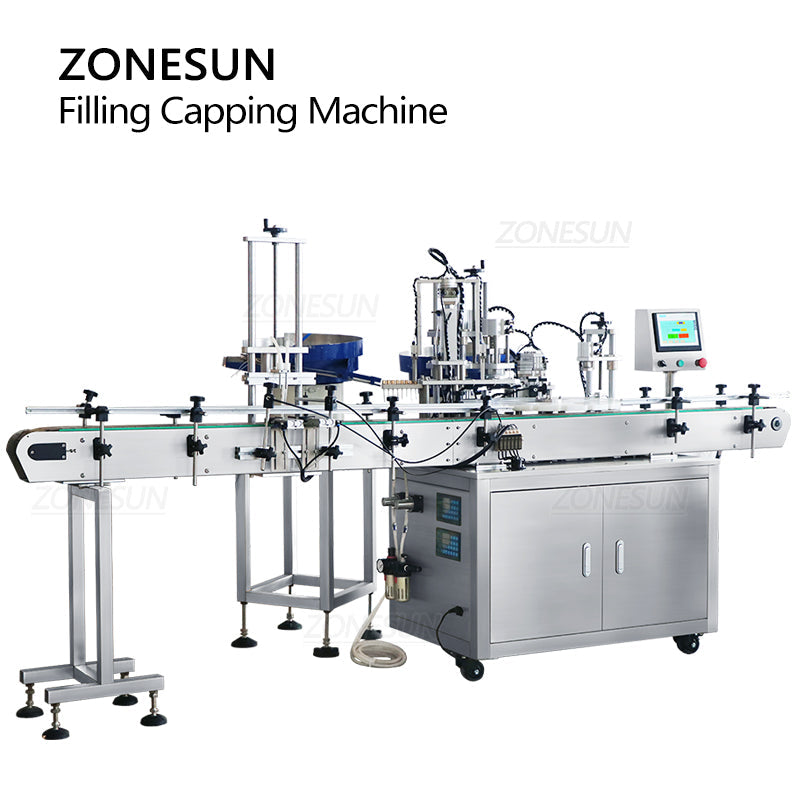

ZONESUN ZS-AFC9 Automatic Magnetic Pump Liquid Filling Perfume Bottle Capping Machine With Cap Feeder
ZONESUN ZS-AFC9 Automatic Magnetic Pump Liquid Filling Perfume Bottle Capping Machine With Cap Feeder
Не удалось загрузить сведения о доступности самовывоза
DESCRIPTION
This all-in-one filling capping machine can fill liquid, feed caps, cap perfume bottles, and seal the outer cover. The rotary plate can be customized according to bottle shape and size. It is widely in the cosmetics industry.
PARAMETER
|
Machine Model |
ZS-AFC9 |
|
Voltage |
220V/110V 50-60Hz |
|
Power |
2500W |
|
Machine Pump |
316 Stainless Steel Magnetic Pump |
|
Filling Heads |
2 Heads(Can be |
|
Production Capacity |
About 20-30 bottles/min(depending on filling |
|
Filling Range |
5-3000ml(Can be |
|
Max Flow Rate |
4L/min per head(based on water) |
|
Applicable Bottle Size |
Can be customized |
|
Applicable Bottle Cap Diameter |
Can be customized |
|
Package size |
About 970*510*850mm(vibratory Bowl Sorter) About 670*540*590mm(Bracket) About 1760*1000*1640mm(Machine) |
|
Package weight |
About 58kg(vibratory Bowl Sorter)+ 65kg(Bracket)+425kg(Machine) |
PRODUCT DETAILS
CONTROL PANEL
Touch screen, easily control every step.
FEEDING
2 vibratory bowls, one is for sprayers, and the other is for overcaps, which is labour-saving.
FILLING
2 heads, 2 magnetic pumps, separate controls.
CRIMPING
Suitable for all size of perfume bottles.
PRESSING
Sealing the outer cover.
ROTARY TABLE
Space-saving and customizable.
