ZONESUN ZS-FAL180X3 Automatic Paste Filling Capping Round Bottle Labeling Machine With Cap Feeder
ZONESUN ZS-FAL180X3 Automatic Paste Filling Capping Round Bottle Labeling Machine With Cap Feeder
DESCRIPTION

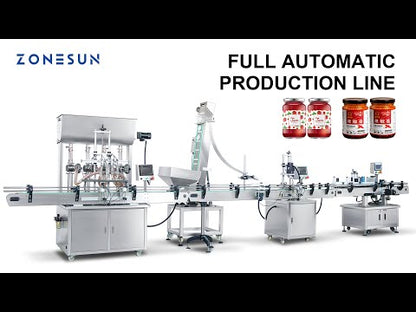

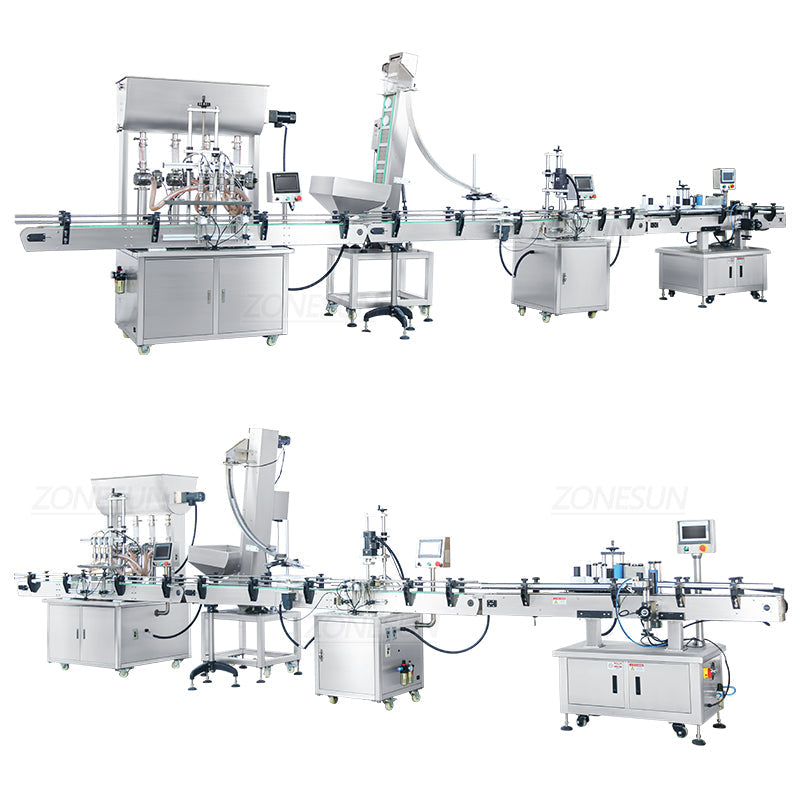

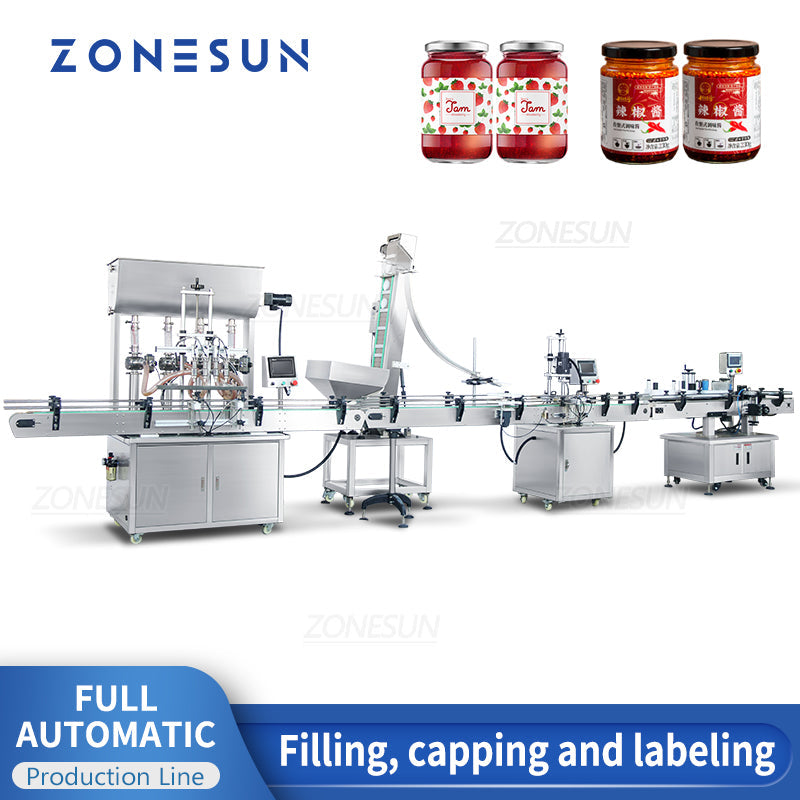

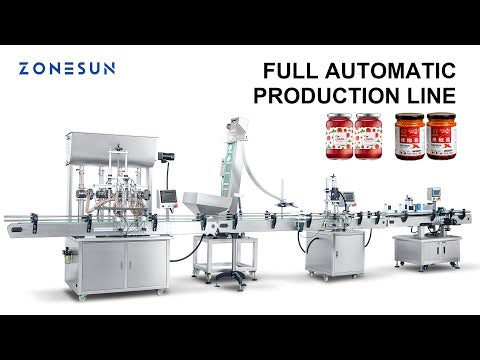

This production line consists of a filling machine, a cap feeding machine, a capping machine, and a labeling machine, which is automatic, stable, and convenient. This machine is applied to food, daily chemical, agriculture, and cosmetic industries.
PARAMETER

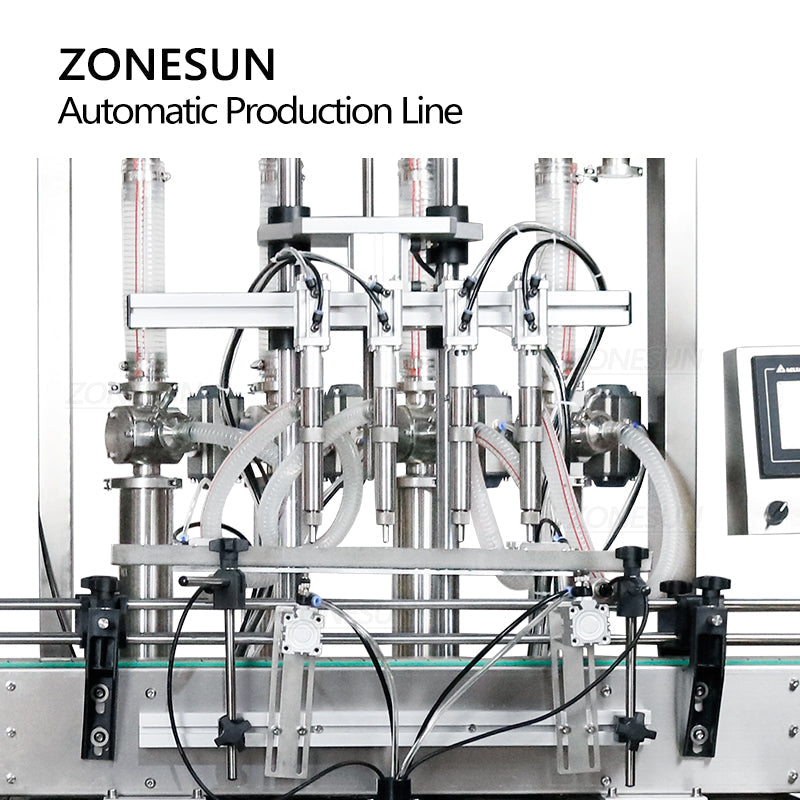

Filling Machine
|
|||||
Model
|
ZS-YT2T-2P
|
ZS-YT4T-4P
|
ZS-YT6T-6P
|
ZS-YT8T
|
|
Voltage
|
110/220V 50-60HZ 800W
|
||||
Filling Range
|
5-100ml/10-300ml/50-500ml/100-1000ml/500-3000ml/1000-5000ml
|
||||
Working Speed
(base on water)
|
10-40bottles/min
|
20-50bottles/min
|
30-70bottles/min
|
40-80bottles/min
|
|
Filling Accuracy
|
≤±1%
|
||||
Air Pressure
|
0.5-0.7Mpa
|
||||
Machine Weight
|
220kg
|
260kg
|
300kg
|
600kg
|
|
Package Weight
|
About 380kg (100-1000ml 4 Heads)
|
||||
Machine size
|
2000*1200*2300mm
|
2000*1200*2300mm
|
2500*1300*2300mm
|
2800*1300*2500mm
|
|
Package Size
|
About 1410*1220*2130mm (100-1000ml 4Heads)
|

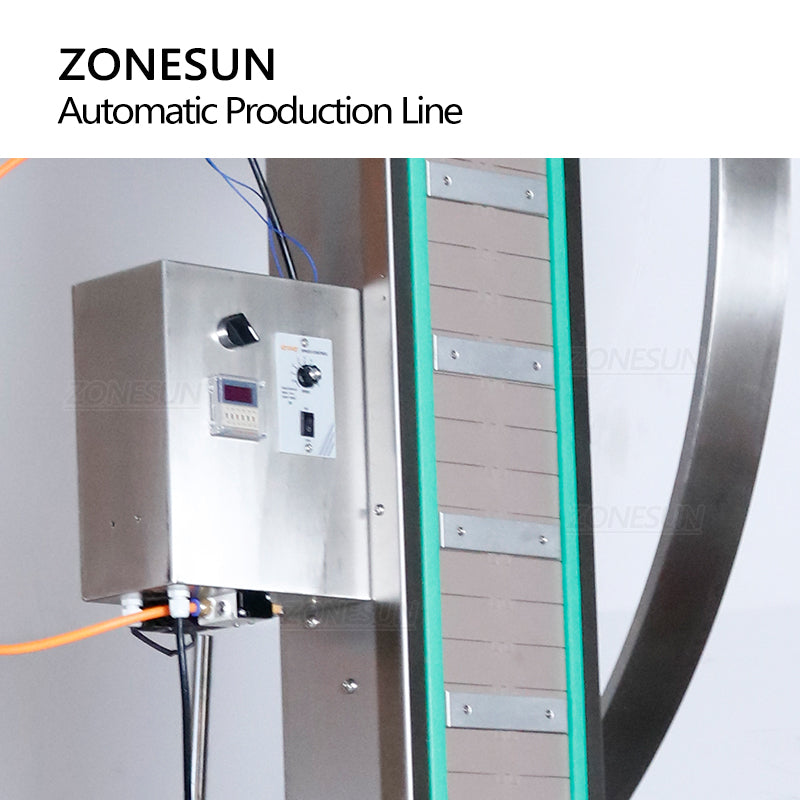

Cap Feeding Machine |
|
Model |
ZS-SLJ1 |
Capacity |
60-120pcs/min |
Applicable Cap Size |
Customized |
Voltage |
AC220V 50HZ |
Power |
0.37KW |
Machine Size |
About 1300*600*2000mm |
Package Size |
About 2350*850*1070mm |
Net Weight/Gross Weight |
About 80kg/205kg |

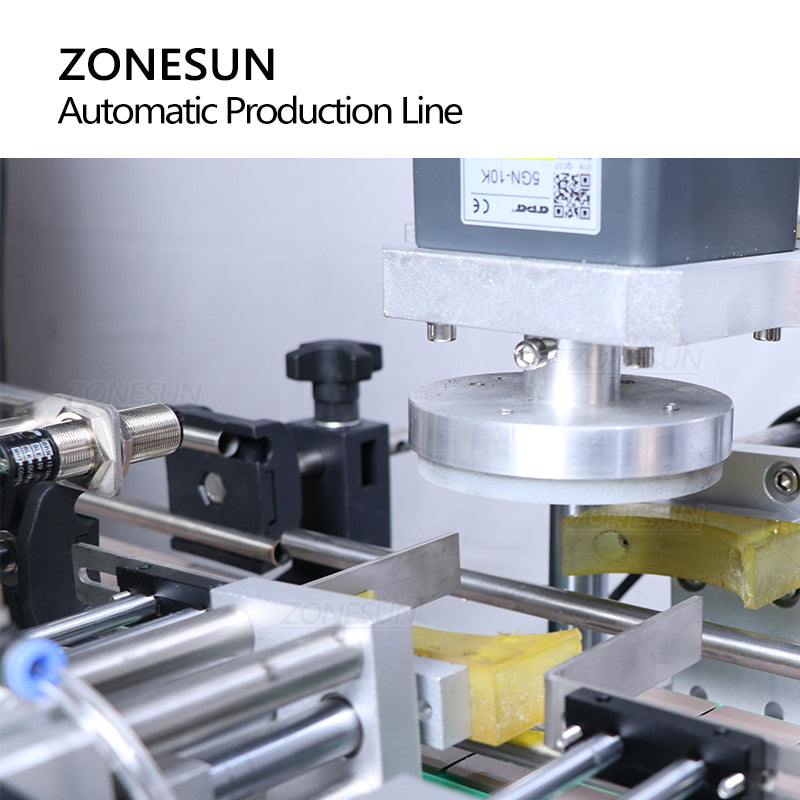

Capping Machine |
|
Model |
ZS-XG440D |
Working voltage |
AC220V/110V 50-60HZ |
Bottle height |
≤200mm |
Bottle caps diameter |
Customized |
Working speed |
20-30 bottles/minute(depending on bottle and caps) |
Working pressure |
0.4-0.6 MPa |
Conveyor size |
100mm(W)*1950mm(L) |
Package size |
About 2000*820*1800mm |
Net weight/Gross weight |
About 211kg/272kg |

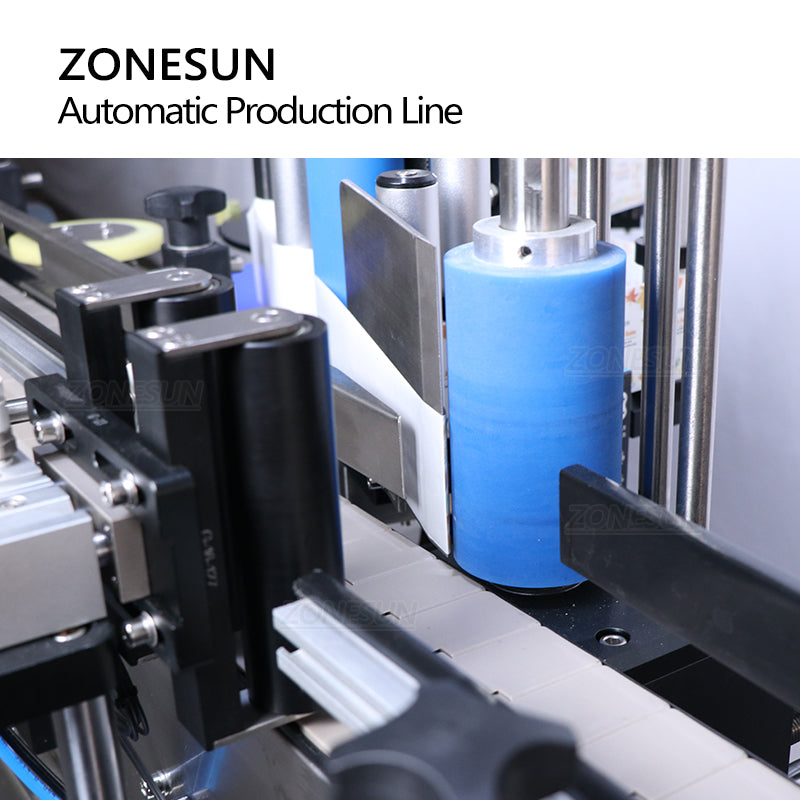

Labeling Machine |
|
Model |
ZS-TB260R |
Power supply |
AC220V 50Hz/60Hz 1000W |
Working speed |
25-50 bottles/min(depends on bottle size) |
Labeling accuracy |
±1.0mm |
Applicablebottle diameter |
Φ12-100mm |
Applicable label size |
(L)20-300mm (H)15-150mm |
Label roll core diameter |
Φ76mm |
Label roll outer diameter |
Φ350mm |
Conveyor size |
112*2000mm(W) |
Machine size |
About (L)2000*(W)820*(H)1380(mm) |
Package size |
About (L)2100*(W)890*(H)1520(mm) |
