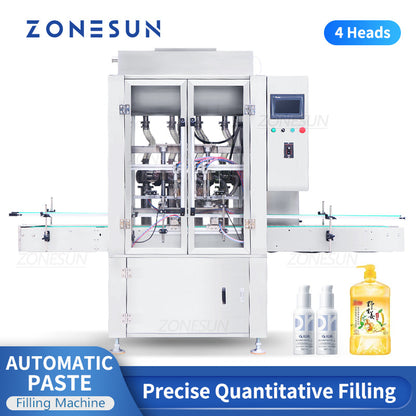

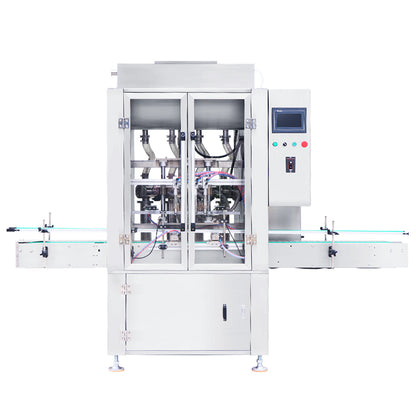

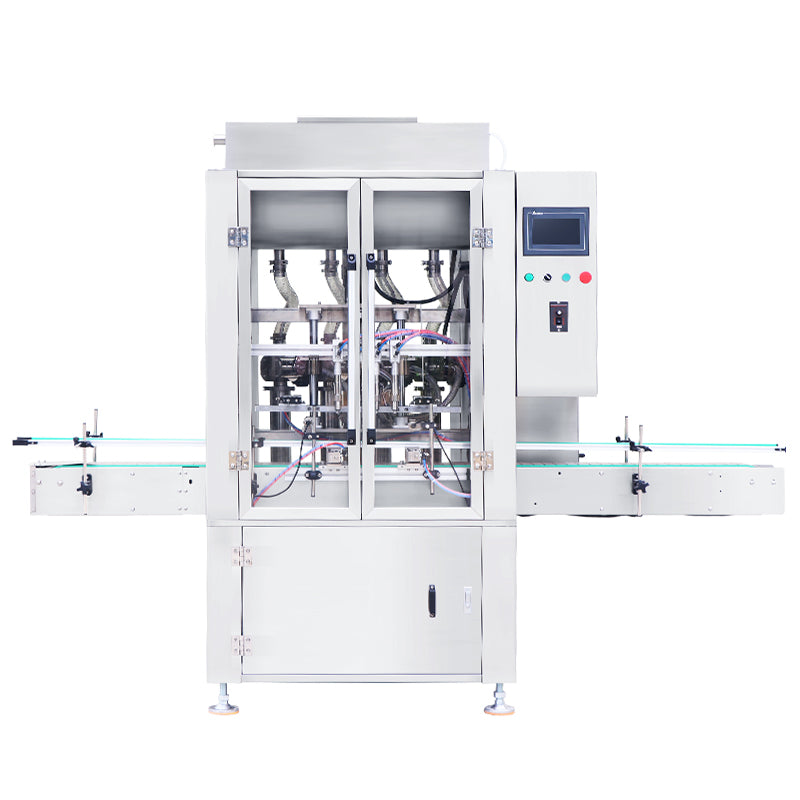

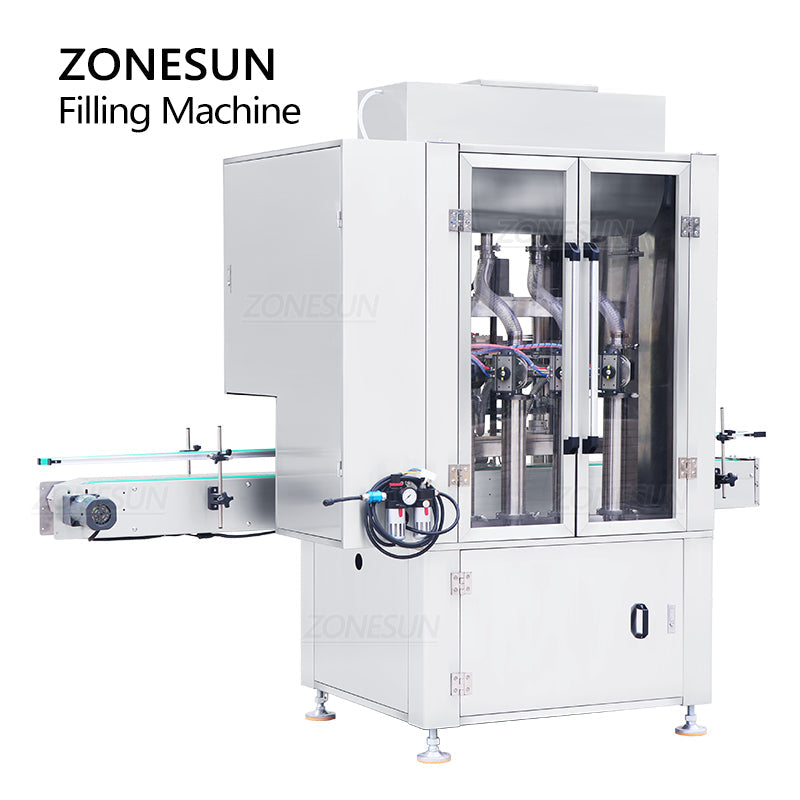

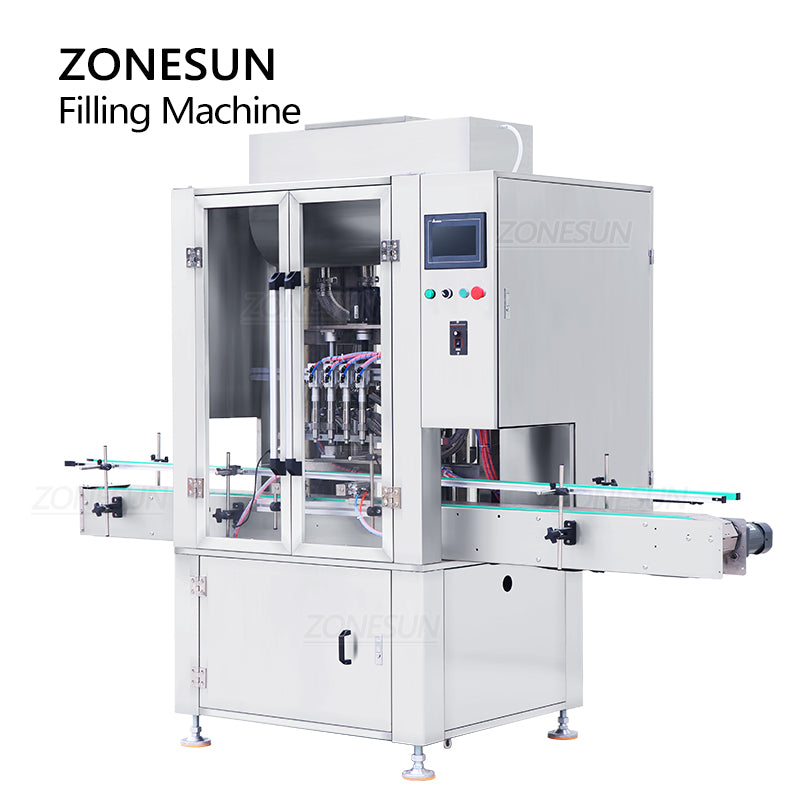

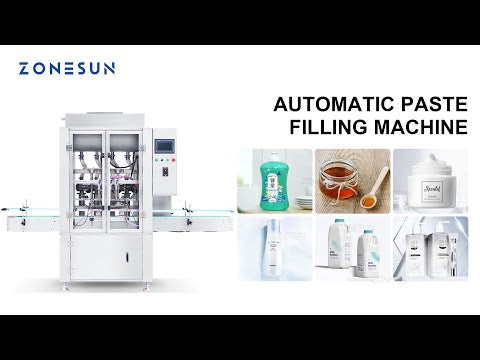

ZONESUN ZS-SV4P Automatic 4 Nozzles Servo Motor Piston Pump Paste Filling Machine

ZONESUN ZS-SV4P Automatic 4 Nozzles Servo Motor Piston Pump Paste Filling Machine

Обычная цена $8,299.00 USD
Обычная цена Цена со скидкой $8,299.00 USD
Распродажа Продано
Стоимость доставки рассчитывается при оформлении заказа.
Voltage

DESCRIPTION

This is a 4-head filling machine for viscous fluid and liquid, which is equipped with a servo motor. Users can directly set the filling volume to realize quantitative filling. This machine is very precise and highly efficient. It is applicable to honey, syrup, lotion, cream, etc.

PARAMETER

Model

ZS-SV4P

Machine voltage

110/220V 50-60HZ

power

About 3000W

Filling heads

4 Heads(Can be customized)

Filling speed

About 24bottles/min (based
on 290ml water)

Filling Range

100-1000ml/500-3000ml/1000-5000ml

Suitable Bottle Diameter

40-112mm

Suitable Bottle Height

≤230mm

Filling Accuracy

≤±2%

Conveyor belt size

About 2450*112mm(L*W)

Package weight

About 586.5kg

Package size

About 2450*900*1190mm




PRODUCT DETAILS

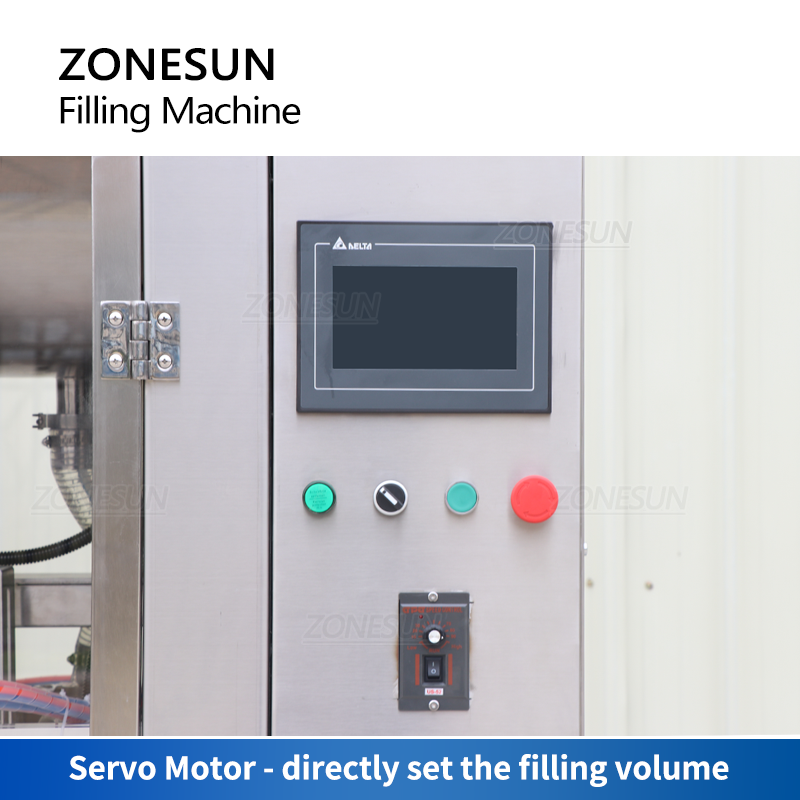

CONTROL PANEL



With a servo motor, users can directly set the filling volume.



* Note: The default language is Chinese and English, pls contact our custom service if you need other language.

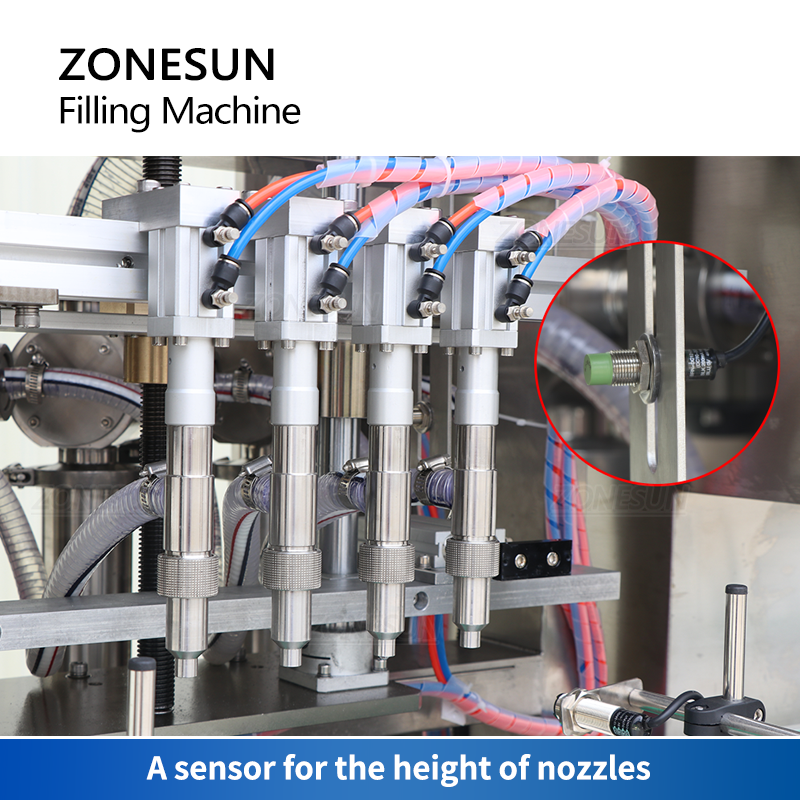

FILLING HEADS



There are 4 pneumatic heads for filling. The height can be adjusted by the sensor.

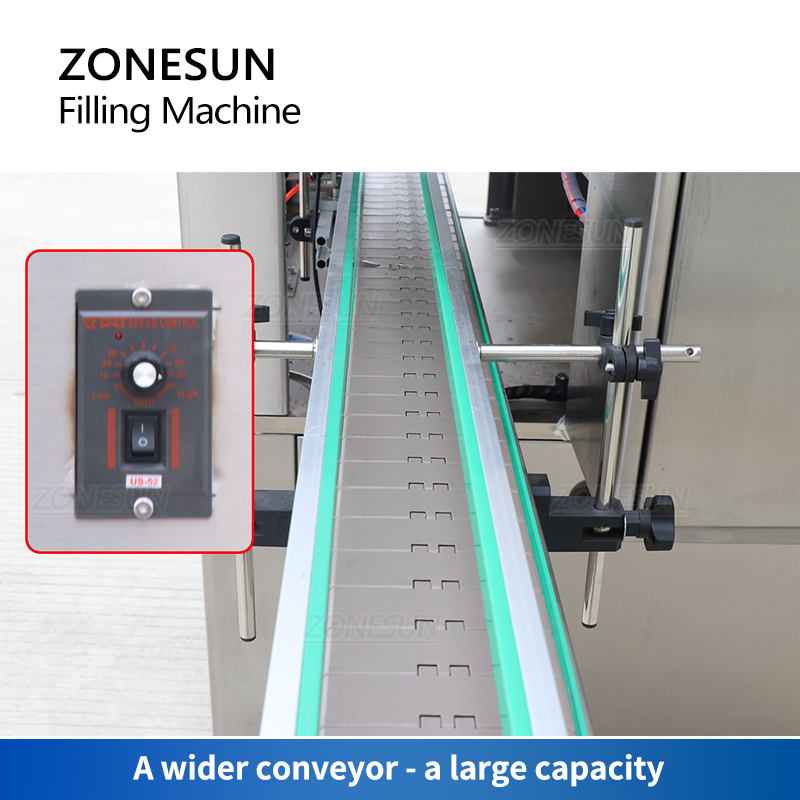

CHAIN CONVEYOR

A wider conveyor with a large capacity.





Material Hopper



For users to pour the materials to be filled into the hopper for efficient production.
