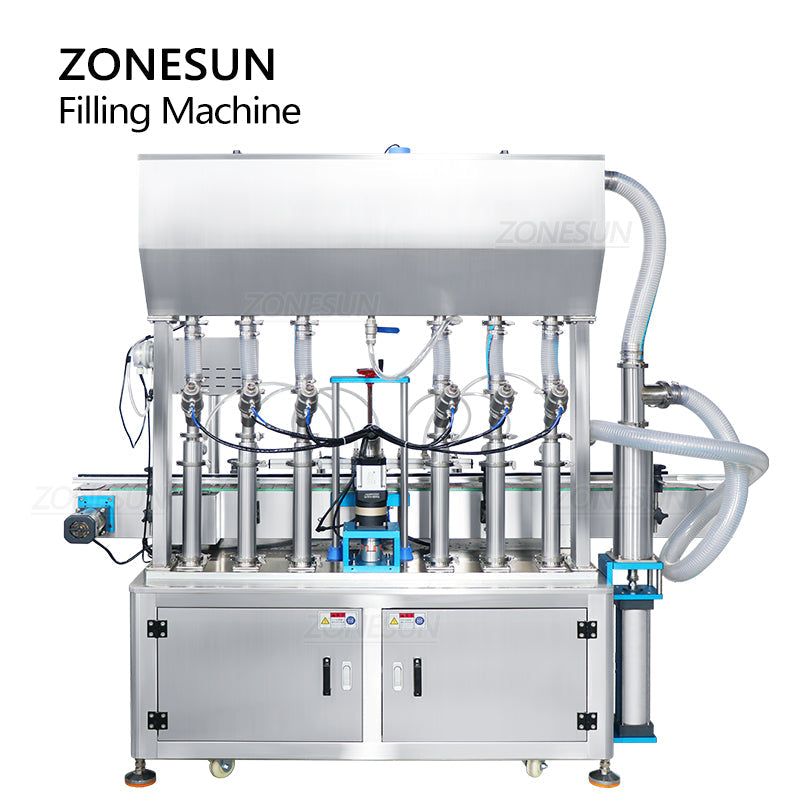

ZONESUN ZS-YT6T-6PX 6 Nozzles Servo Motor Paste Filling Machine With Feeding Pump
ZONESUN ZS-YT6T-6PX 6 Nozzles Servo Motor Paste Filling Machine With Feeding Pump
Обычная цена
$6,099.00 USD
Обычная цена
Цена со скидкой
$6,099.00 USD
Цена за единицу
за
Стоимость доставки рассчитывается при оформлении заказа.
Не удалось загрузить сведения о доступности самовывоза
DESCRIPTION
This is a six-head filling machine with a feeding pump and a big hopper of 160L. It can easily feed the material into the hopper. Also, it adopts 6 piston pumps and servo controls, which means users can directly set the filling volume.
PARAMETER
|
Machine Model |
ZS-YT6T-6PX |
|
Voltage |
220V/110V 50-60Hz |
|
Power |
2Kw |
|
Filling Heads |
6 Heads (Customizable) |
|
Hopper |
160L (Customizable) |
|
Filling Range |
100-1000ml (Customizable) |
|
Filling Speed |
About 30-70bottles/min |
|
Air Pressure |
0.5-0.8MPa |
|
Package Size |
About 2030*900*1980mm |
|
Gross Weight |
About 401kg |
PRODUCT DETAILS
CONTROL PANEL
Servo controls – users can directly set the filling volume.
FEEDING
With a feeding pump and a large hopper of 160L, easy to feed the material.
FILLING
Pneumatic filling and servo motor, stable and efficient.
Diving nozzles, suitable for foamy liquids.
TRANSPORTING
Movable photoelectric eye, smart detecting.
High-quality conveyor, durable, with adjustable speed.
