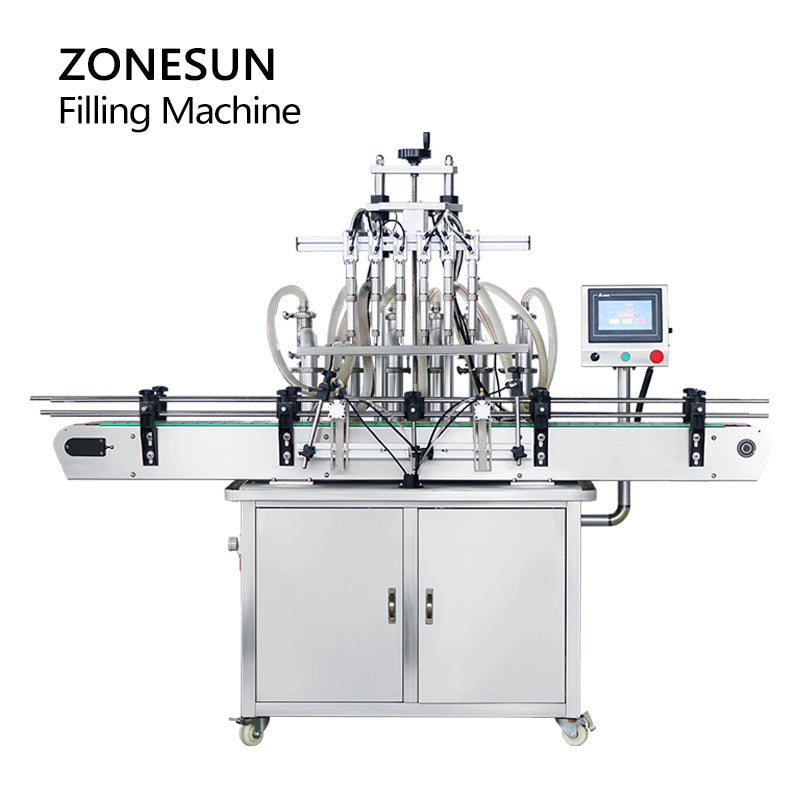

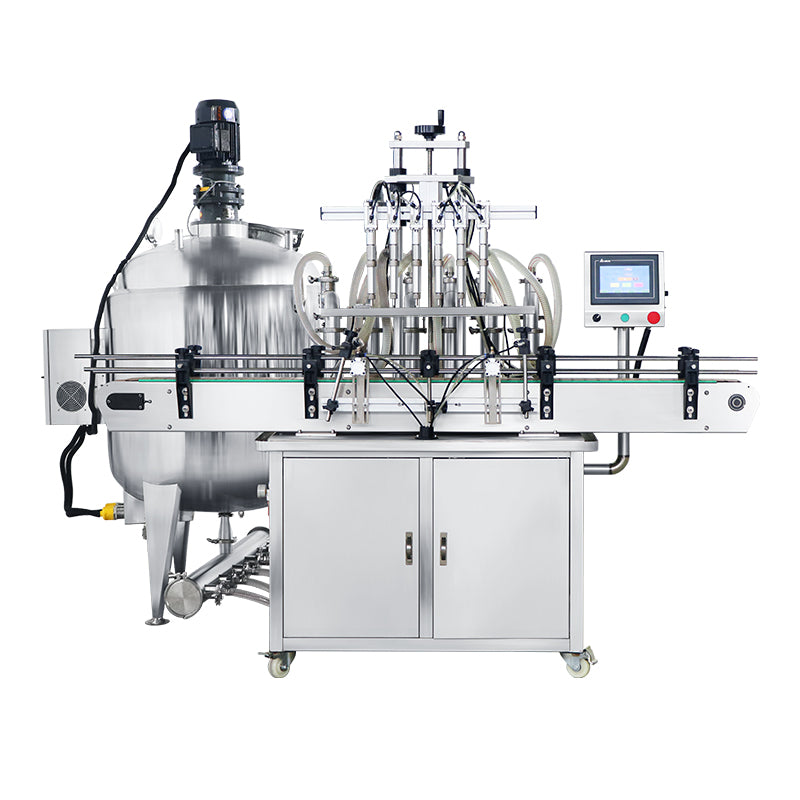

ZONESUN ZS-YT6T-6V Automatic Piston Pump Liquid Filling Machine With MIxing Tank
ZONESUN ZS-YT6T-6V Automatic Piston Pump Liquid Filling Machine With MIxing Tank
Не удалось загрузить сведения о доступности самовывоза
DESCRIPTION
This filling machine is equipped with a mixing tank. It can emulsify liquids. The filler adopts piston pumps, which is powerful for filling paste. It is widely used in the cosmetics and daily chemical industry.
PARAMETER
FILLING MACHINE |
|
|
Model |
ZS-YT6T-6Y |
|
Voltage |
110/220V 50-60HZ 800W |
|
Filling Range |
5-100ml/10-300ml/50-500ml/ 100-1000ml/500-3000ml/1000-5000ml |
|
Working Speed |
30-40bottles/min |
|
Filling Accuracy |
≤±1% |
|
Air Pressure |
0.5-0.7MPa |
|
Size Of Air Compressor Connector |
φ10mm |
|
Conveyor Length |
2050mm(standard ) / 3050mm(wider version) |
|
Conveyor Material |
Plastic(standard) / stainless steel(custom version) |
|
Package Size |
About 2110*2010*1000mm （100-1000ML） |
|
Package Weight |
About 476kg（100-1000ML） |
MIXING TANK |
|
|
Machine Model |
ZS-MB400LH |
|
Voltage |
220V 50-60Hz |
|
Tan Capacity |
400L(Can be customized) |
|
Tank Size |
Diameter: 800mm, H: 1000mm |
|
Stirring Motor |
1.1kW |
|
Rotating Speed |
40r/min |
|
Heating Power |
12kW |
|
Machine Material |
304 Stainless Steel |
|
Package Size |
About 1300*1100*2160mm |
|
Gross Weight |
About 403kg |
PRODUCT DETAILS

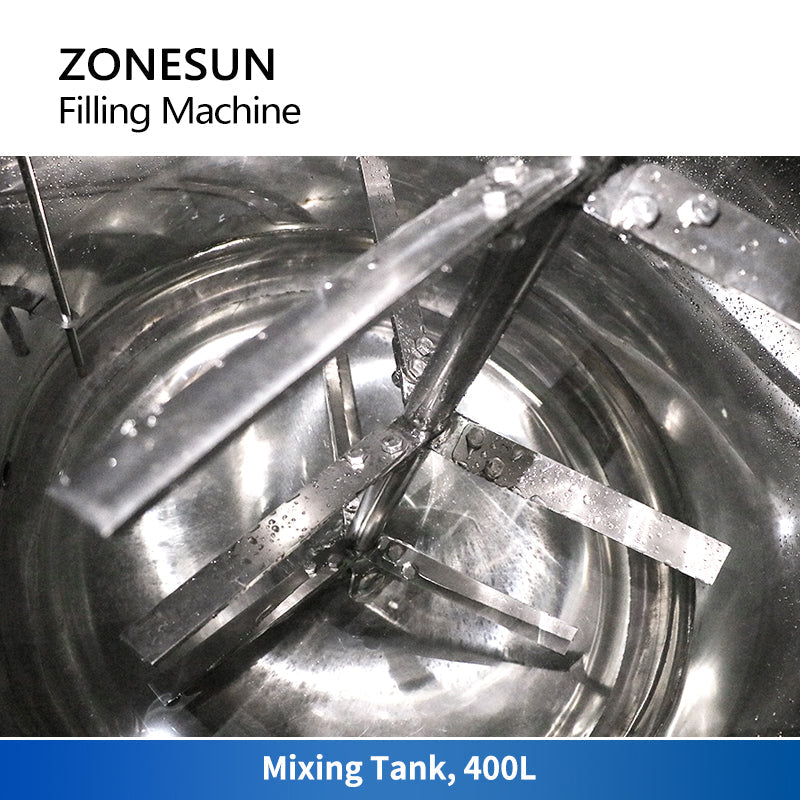

MIXING TANK
400L, customizable paddle, with heating function

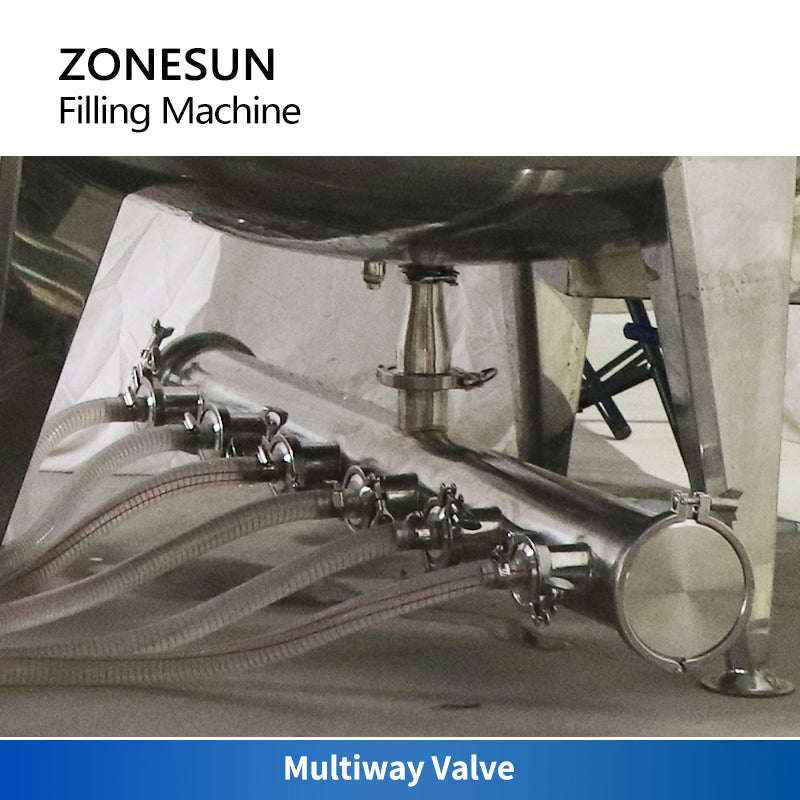

FEEDING
Multiway valve, directly connect to the hoses.

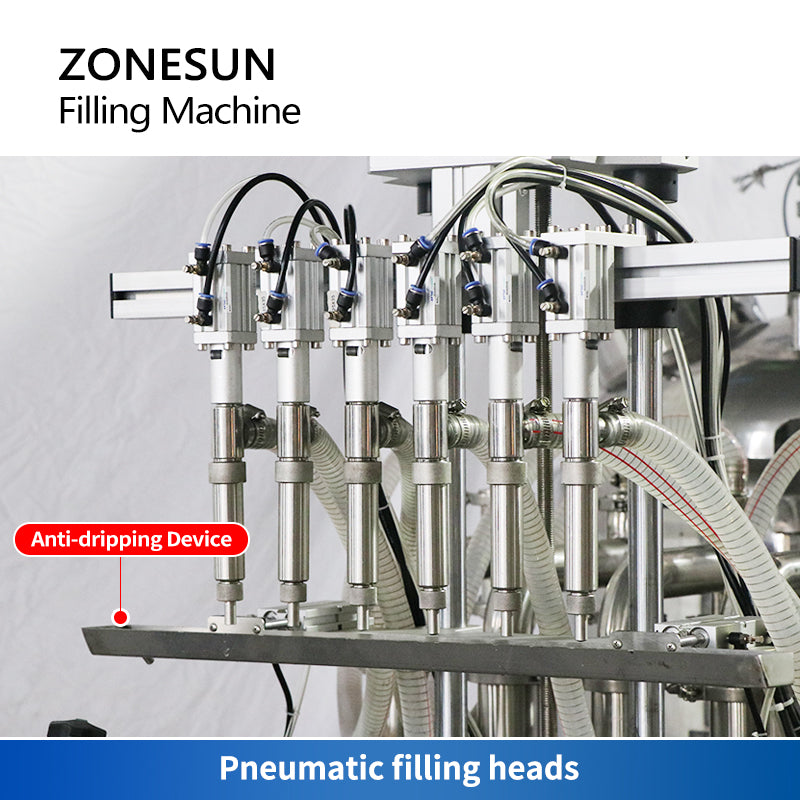

FILLING
Pneumatic filling heads, with an anti-dripping design.

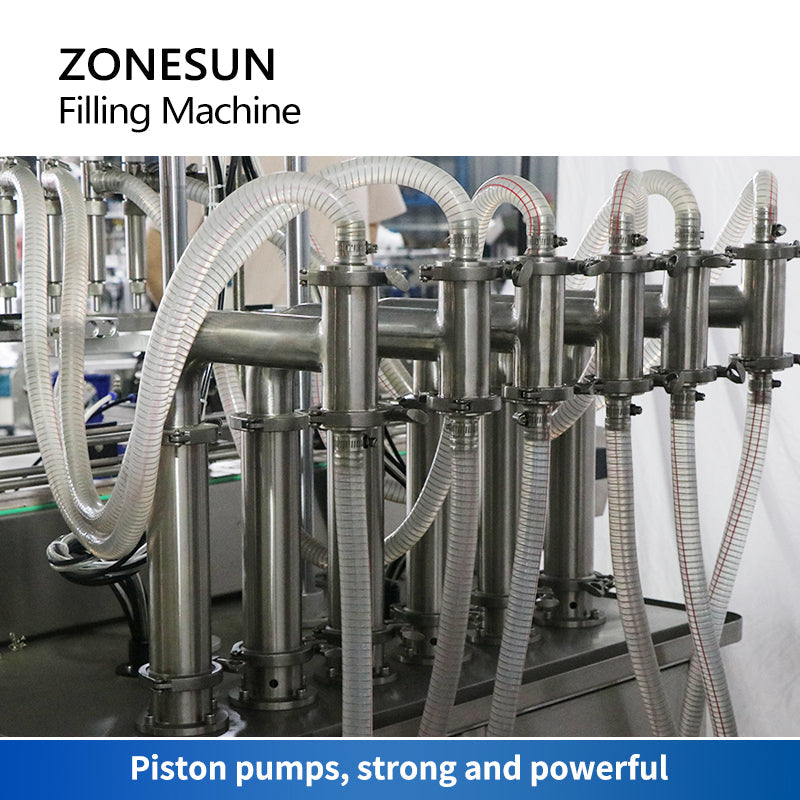

PUMP
Piston pumps, strong and powerful
