ZONESUN Full Automatic Paste Filling Screw Capping Round Bottle Labeling Machine with Unscrabler Production Line
ZONESUN Full Automatic Paste Filling Screw Capping Round Bottle Labeling Machine with Unscrabler Production Line
Couldn't load pickup availability
DESCRIPTION

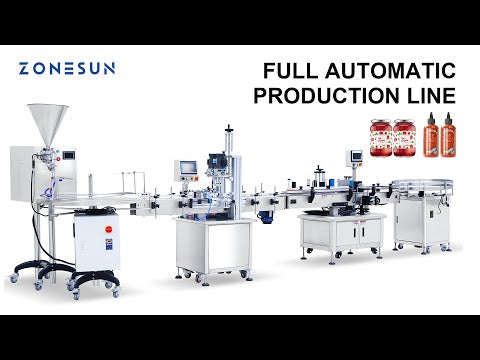

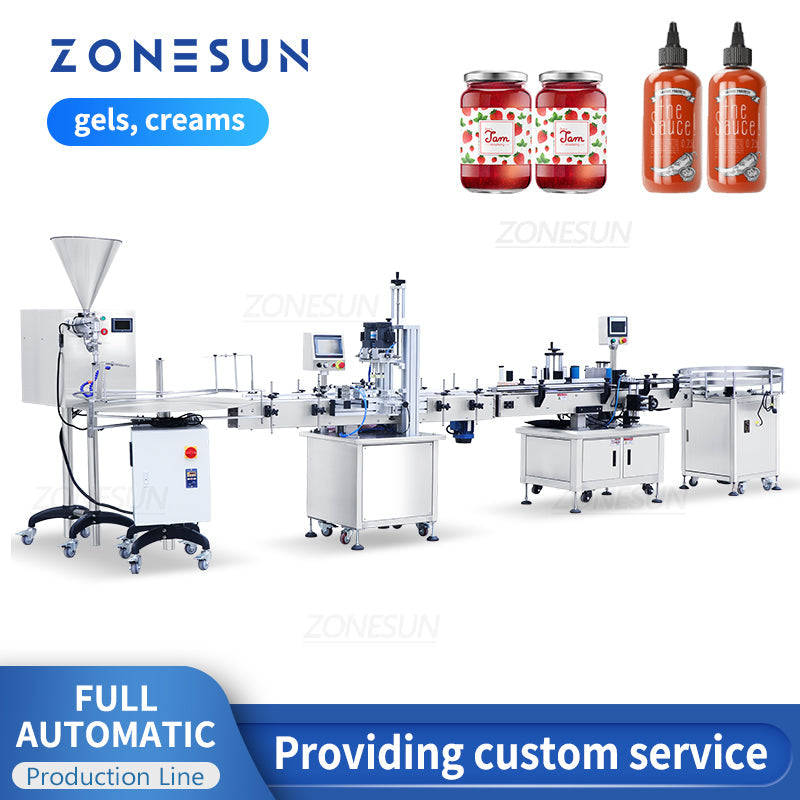

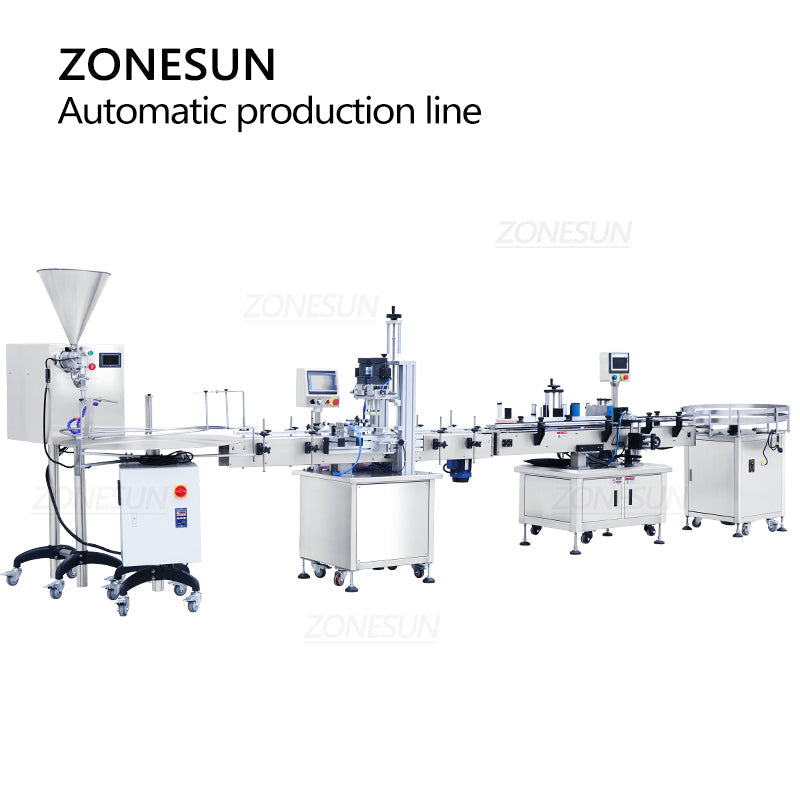

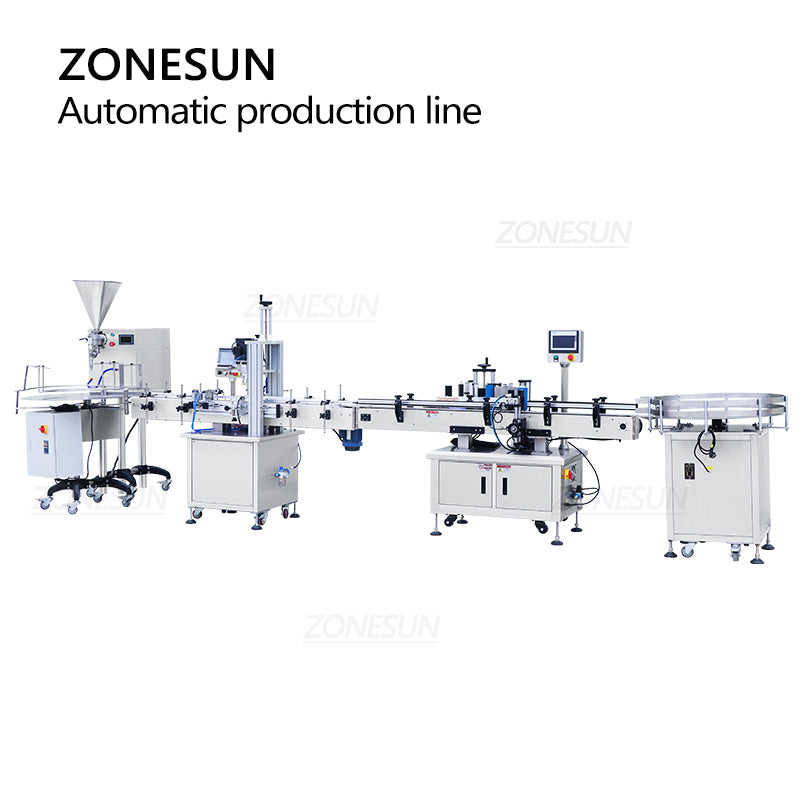

This automatic production line is specially designed for viscous gels, and creams. It includes a bottle unscrambler, a filling machine, a capping machine, and a labeling machine, which greatly improves production efficiency and saves labor. It applies to food, daily chemical, and cosmetic industries, etc.
PARAMETER
|
FILLING MACHINE |
|
|
Model |
ZS-VTRP1 |
|
Machine voltage |
110/220V 50-60HZ 1KW |
|
Filling pump |
Lobe rotor pump |
|
Filling range |
About 5-5000ml |
|
Suitable bottle size |
Diameter=50-100mm Height=50-250mm |
|
Hopper size |
25L |
|
Working speed |
20-35 bottles/min (based on filling material and filling volume) |
|
Working height |
About 850±25mm |
|
Machine size |
About 1688*1204*1800mm |
|
Machine weight |
About 200kg |
|
CAPPING MACHINE |
|
|
Model |
ZS-XG16 |
|
Machine voltage |
AC220V 50Hz/60Hz 1000W |
|
Working pressure |
0.4-0.6 MPa |
|
Working speed |
20-60 bottles/minute (depending on bottle and cap size and shape) |
|
Bottle height |
30-300mm |
|
Cap Diameter |
18-70mm |
|
Bottle Diameter |
20-160mm |
|
Size of air compressor connector |
OD 8mm |
|
Machine size |
About 1930*740*1600mm |
|
Machine weight |
About 113kg |
|
Packing SizePacking Size |
About 2000*820*1760mm |
|
Package weight |
About192.5kg |
|

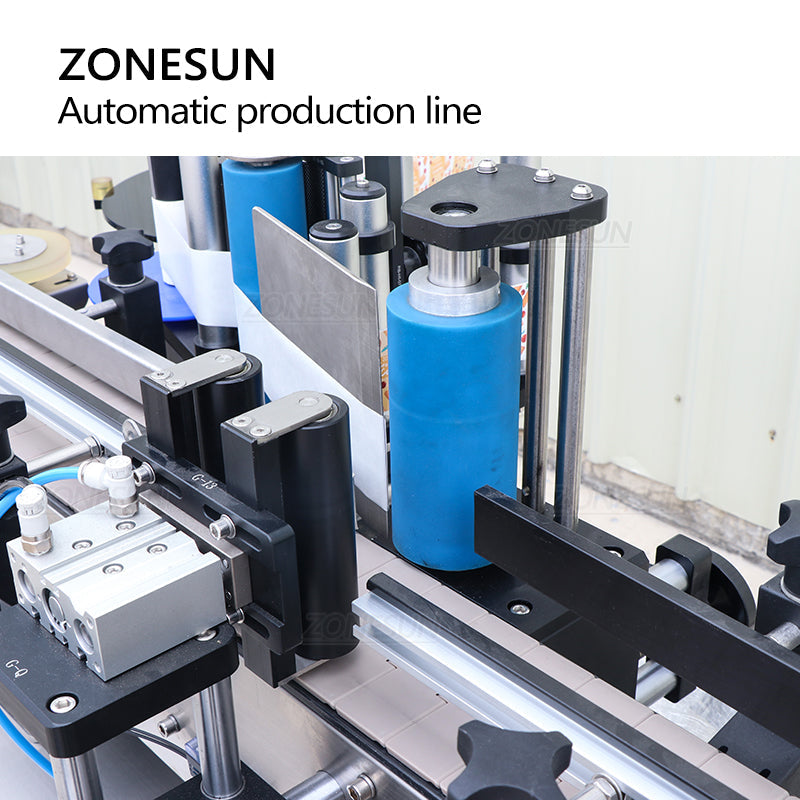

LABELING MACHINE |
|
|
Model |
ZS-TB260R |
|
Machine voltage |
AC220V 50Hz/60Hz 1000W |
|
Labeling capacity |
25-50 bottles/min(depends on bottle size) |
|
Suitable Bottle Diameter |
Φ12-100mm |
|
Label size |
(L)20-300mm (H)15-150mm |
|
Roll corediameter(mm) |
Φ76mm(3 inch） |
|
Roll outer diameter(mm) |
Φ350mm |
|
Conveyor Size |
112*2000mm(W) |
|
Machine size |
About (L)2000*(W)820*(H)1380(mm) |
|
Machine weight |
About 180kg |
|
Packing Size |
About (L)2100*(W)890*(H)1520(mm) |
|
Package weight |
About 250kg |
|
BOTTLE UNSCRAMBLER |
|
|
Model |
ZS-SP800S |
|
Voltage |
220V 50Hz200W(110V can be customized) |
|
Bottle specifications |
Square bottle/round bottle |
|
Conveying speed |
0-20 revolutions per minute(adjustable) |
|
Turntable diameter |
(L)20-300mm (H)15-150mm |
|
Roll corediameter(mm) |
800 mm |
|
Dimension |
About 550*550*990mm |
|
Package size |
About 1050*1000*1130mm |
|
N.W./G.W. |
About 93kg/120kg |
