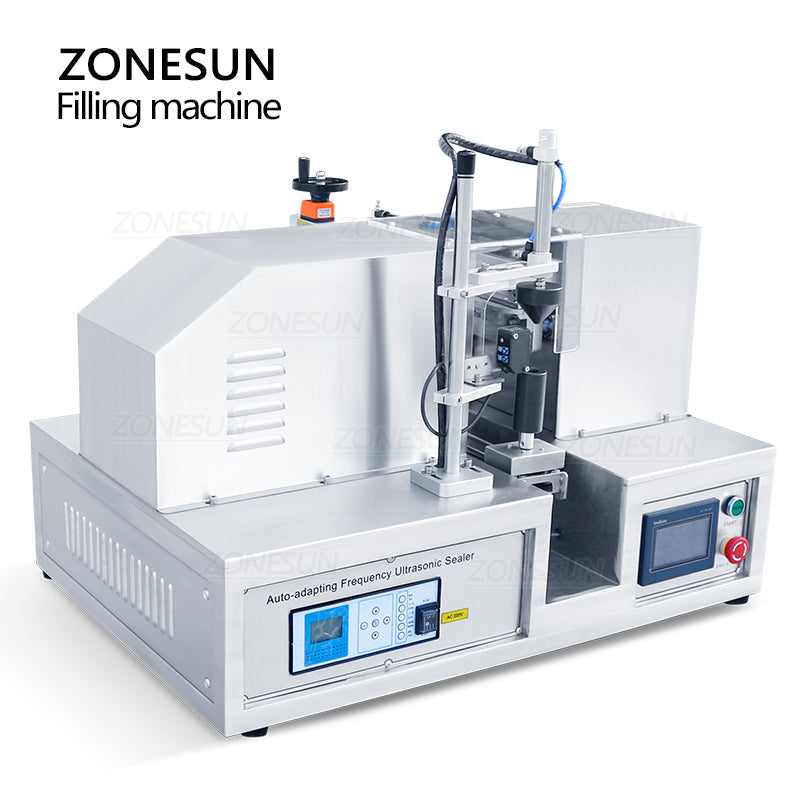

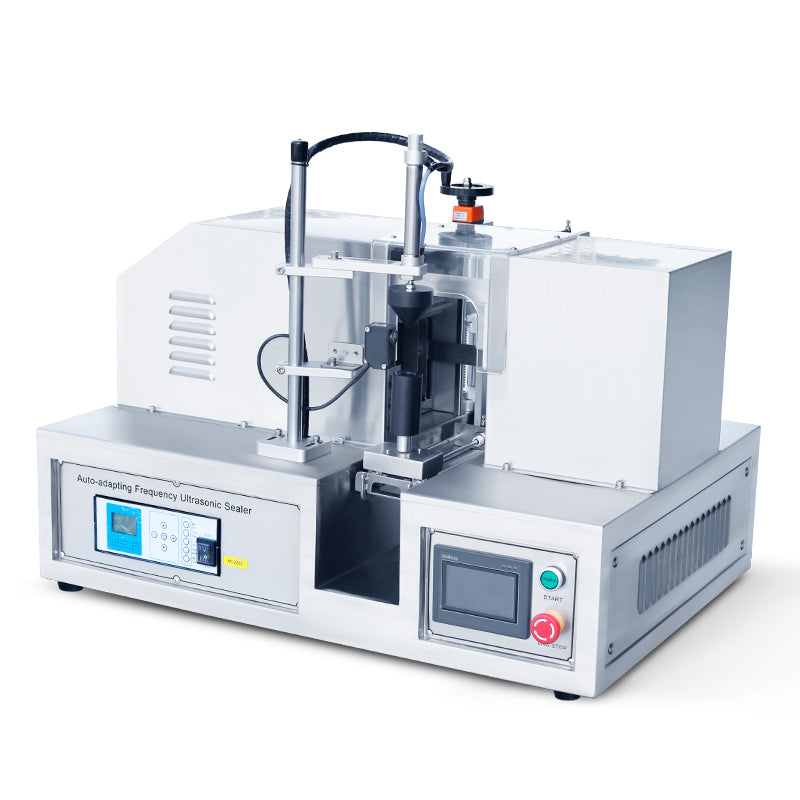

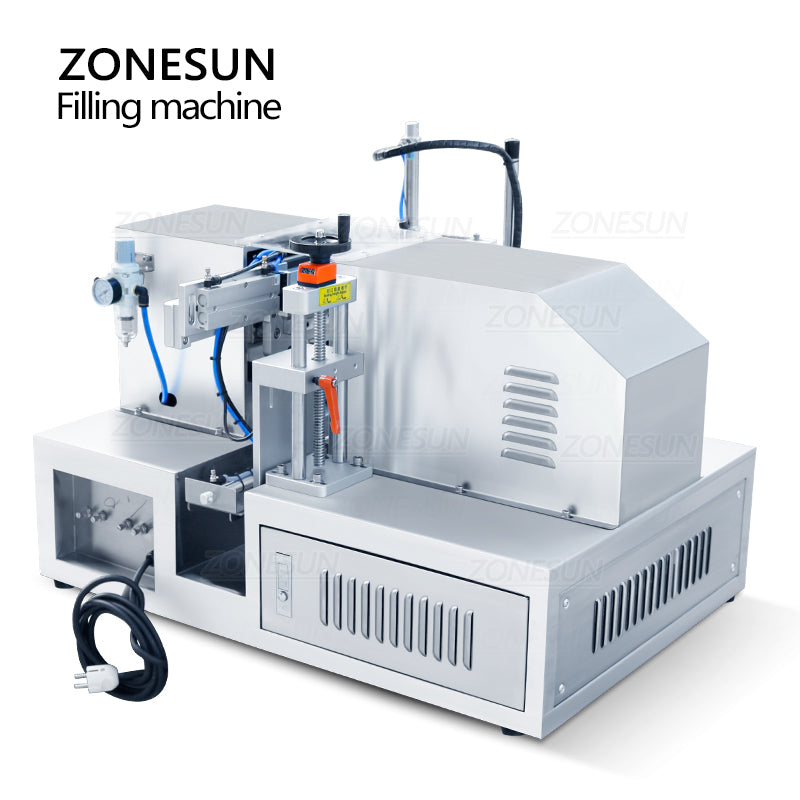

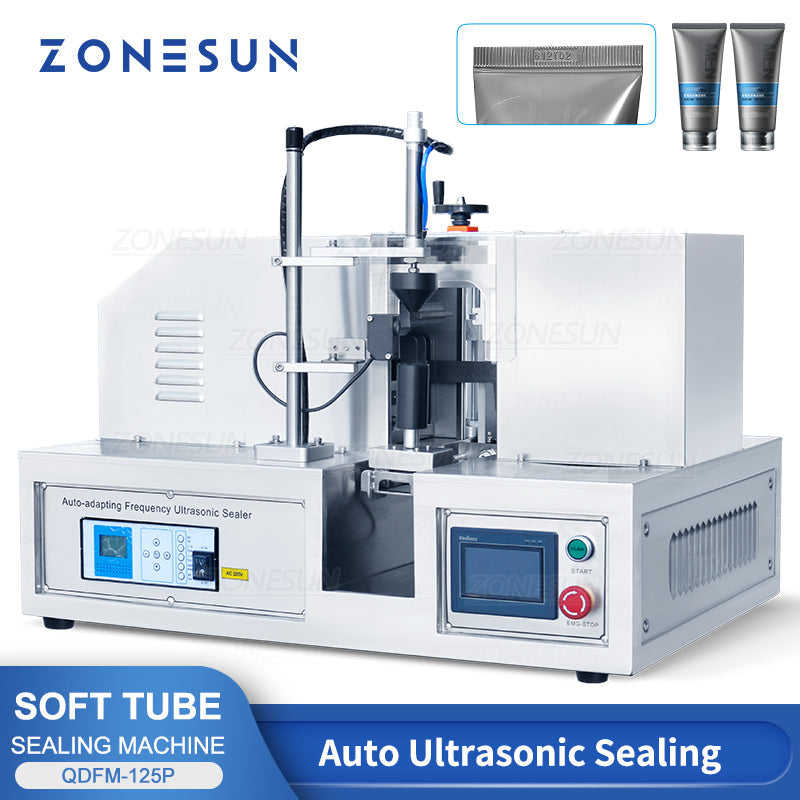

ZONESUN QDFM-125P Ultrasonic Soft Tube Sealing Machine with Date Coder
ZONESUN QDFM-125P Ultrasonic Soft Tube Sealing Machine with Date Coder
Couldn't load pickup availability
DESCRIPTION

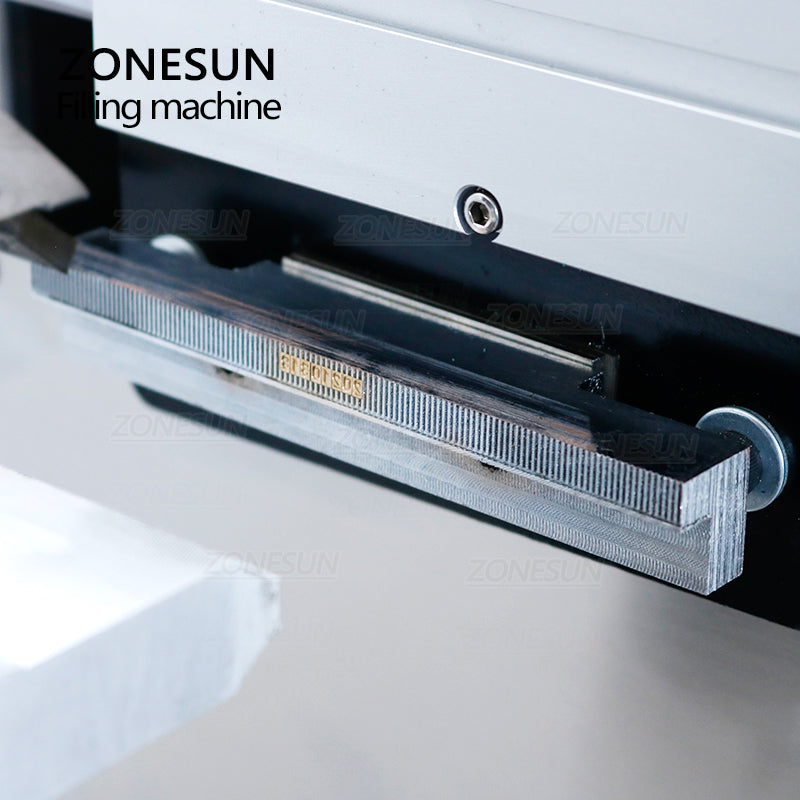

This is a tube sealing machine. It adopts ultrasonic waves to seal the plastic, aluminum-plastic, and soft compound tubes. It is available to stamp an 8-digit date on the seal with a set of number dies. It is widely used in the daily chemical, food, and cosmetics industries.
PARAMETER
Machine Model |
QDFM-125P |
Voltage |
220V/110V 50-60Hz |
Power |
2.6kW |
Sealing Height |
50-220mm |
Sealing Width |
15-50mm (Max 60mm can be customized) |
Sealing Speed |
10-13pcs/min |
Sealing Way |
Ultrasonic Sealing |
Air Pressure |
0.5MPa |
Frequency |
20KHz |
Application |
Plastic Tube/Aluminum-plastic |
Machine Body |
304 Stainless Steel |
Machine Weight |
About 86.5kg |
Machine Size |
About 855*600*500mm(L*W*H) |
Package Weight |
About 110KG |
Package Size |
About 960*720*830mm(L*W*H) |
