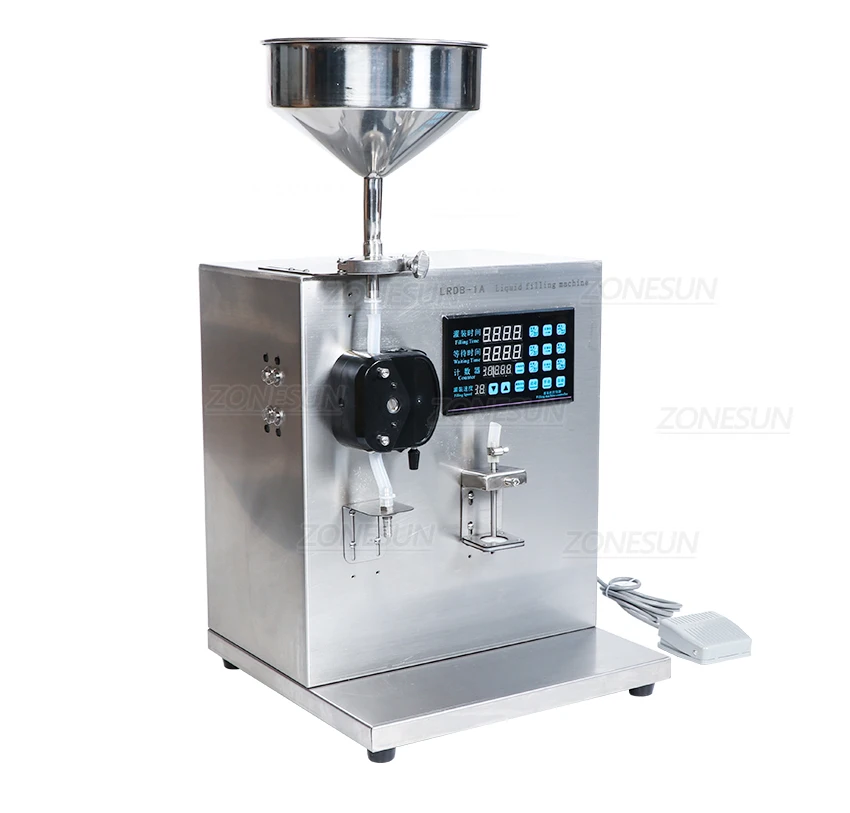

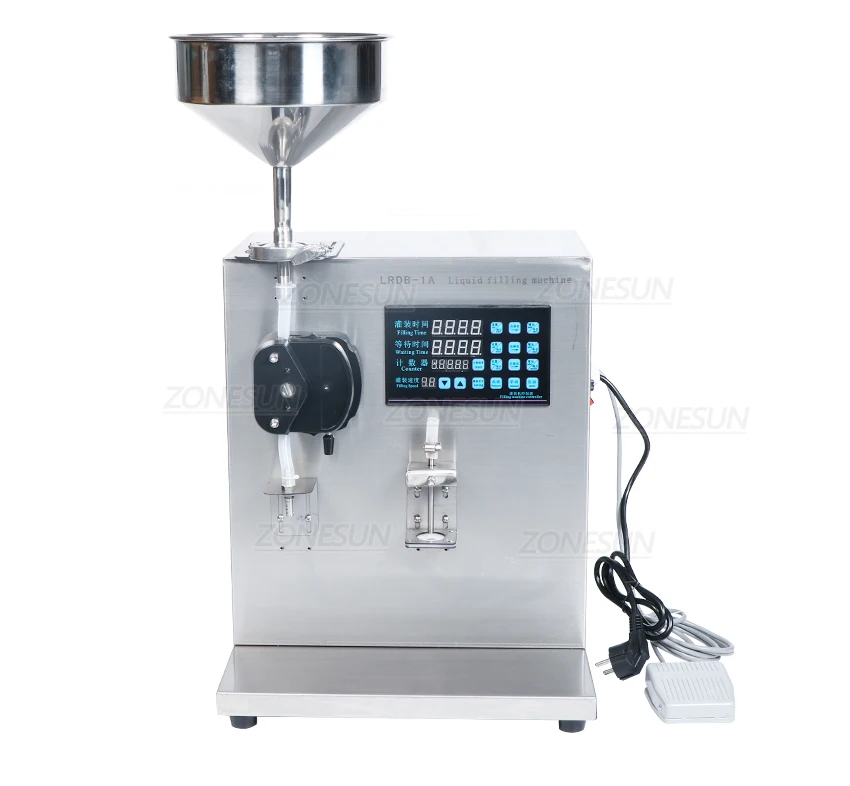

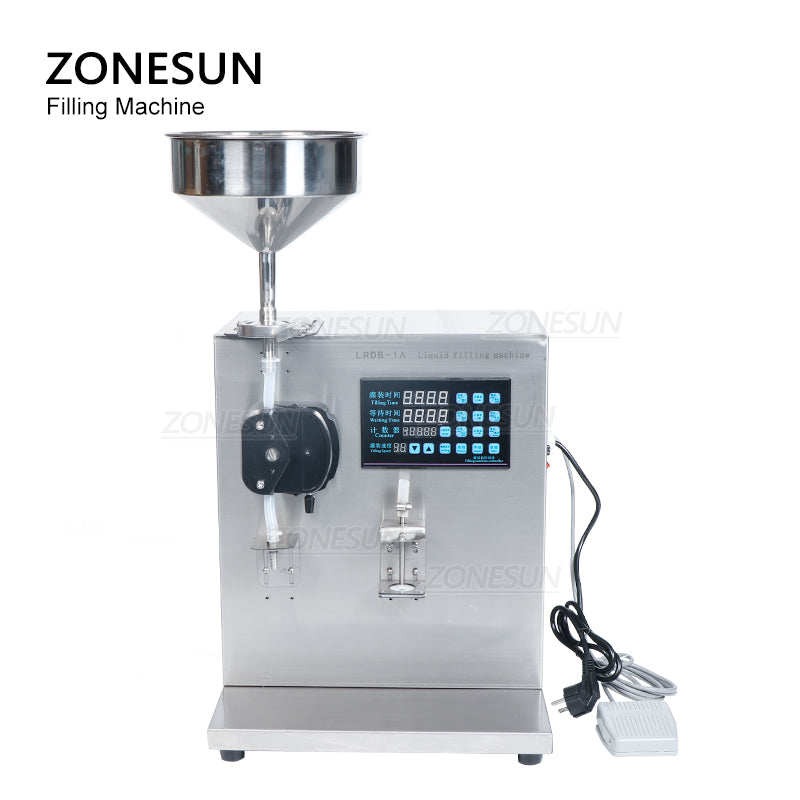

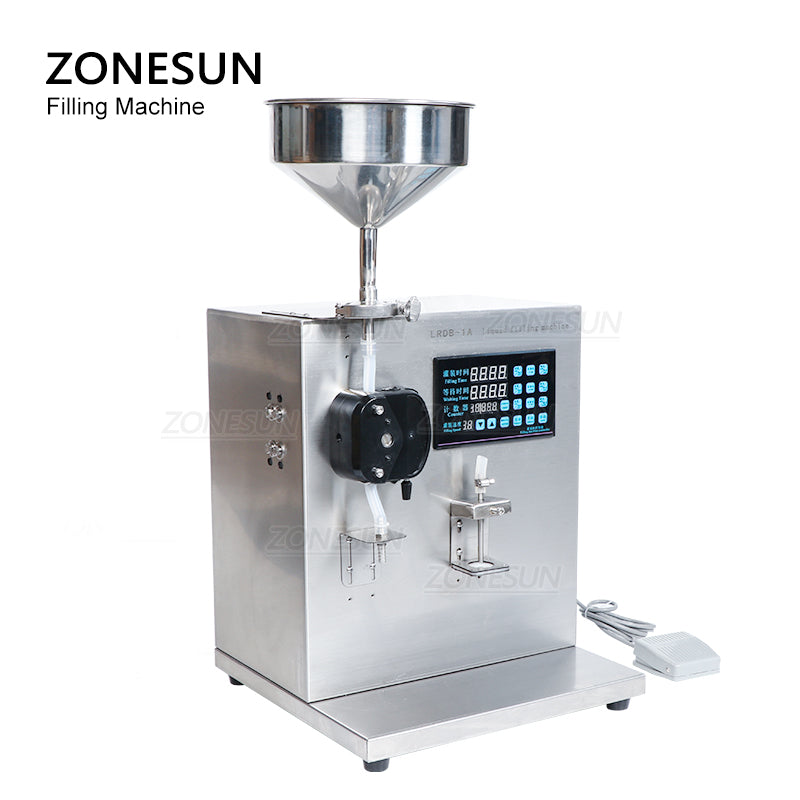

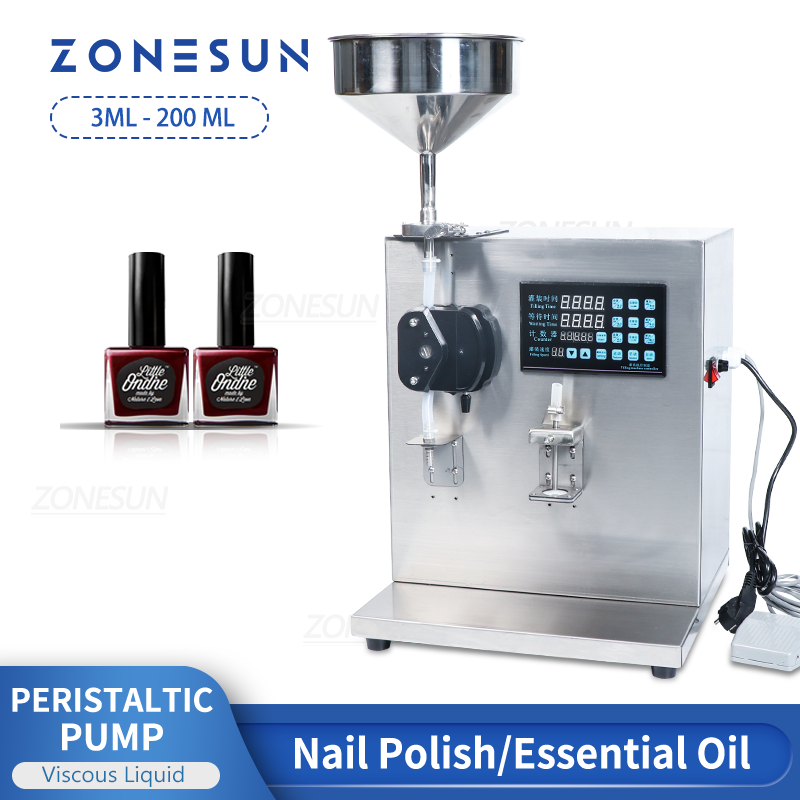

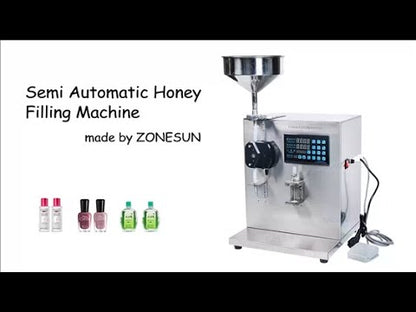

ZONESUN ZS-NP1 3-200ml Semi Automatic Peristaltic Pump Liquid Filling Machine
ZONESUN ZS-NP1 3-200ml Semi Automatic Peristaltic Pump Liquid Filling Machine
Couldn't load pickup availability
DESCRIPTION

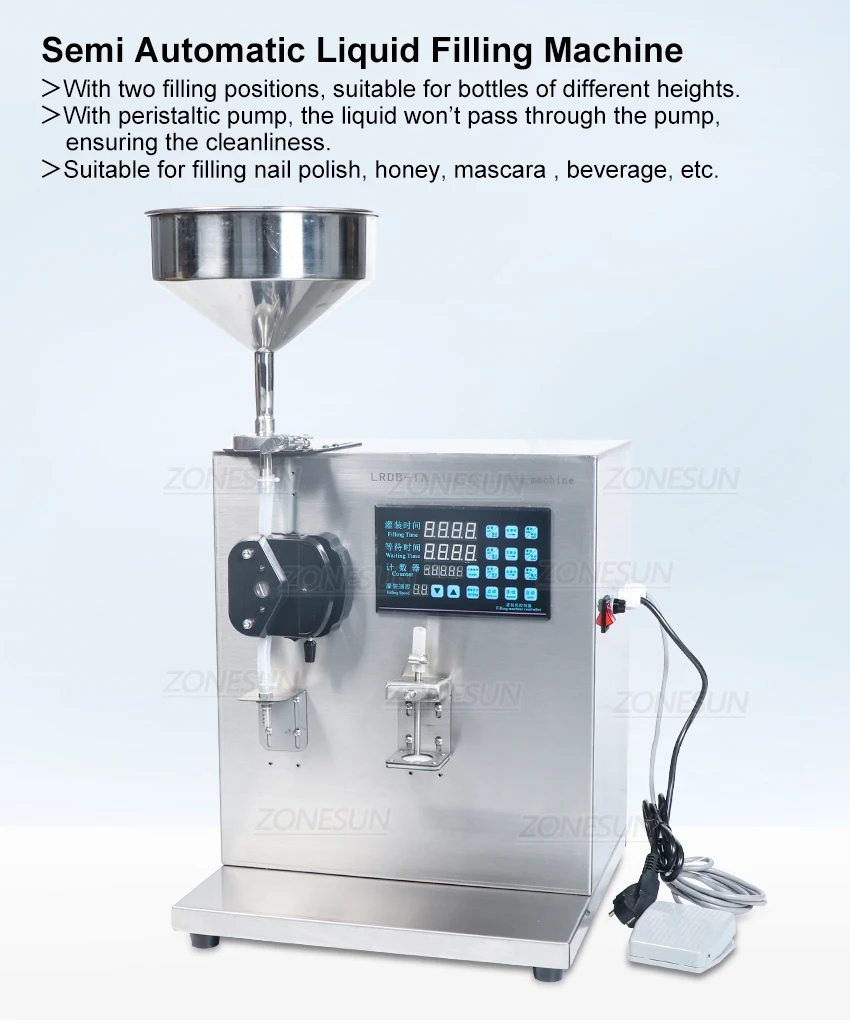

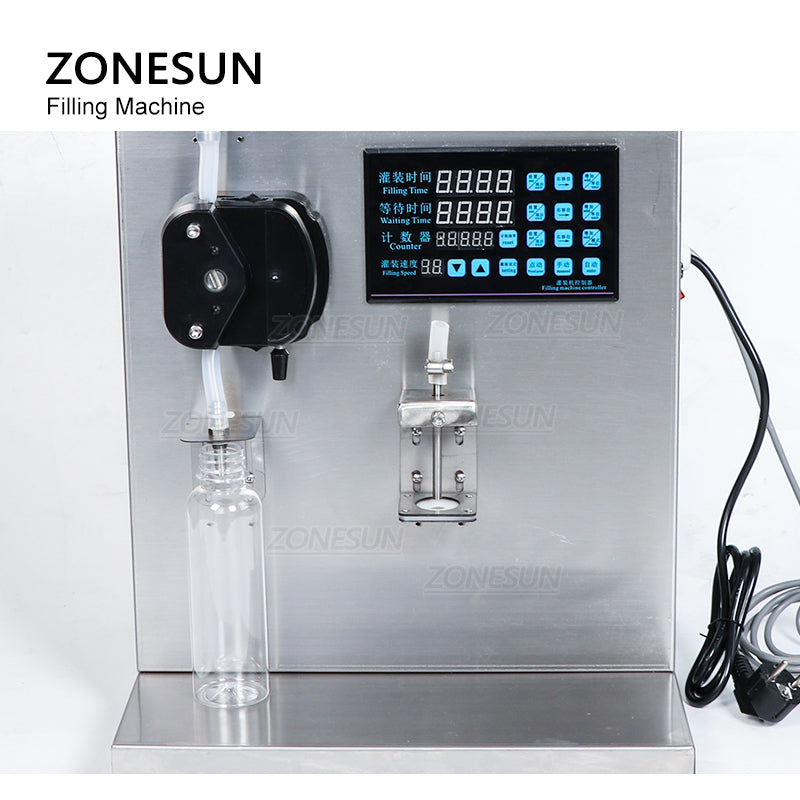

1.With peristaltic pump, the liquid will not pass through the pump, ensuring the cleanliness.
2. The filling nozzle has anti-dripping function, making it more accurate to fill liquid.
3. Two working modes: Automatic mode or manual mode. Operator can fill the bottles by pressing the pedal switch.

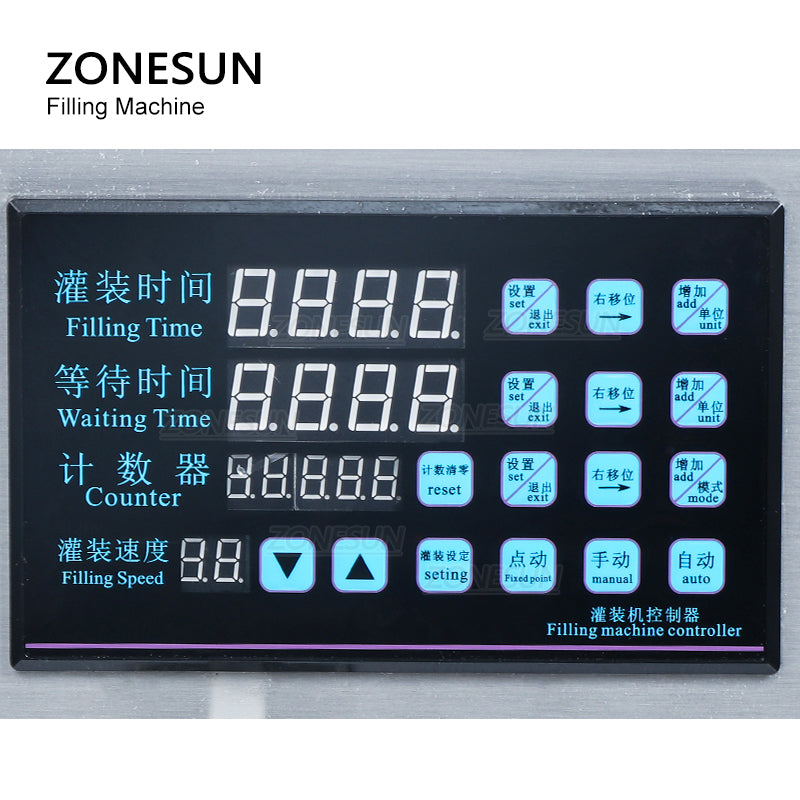

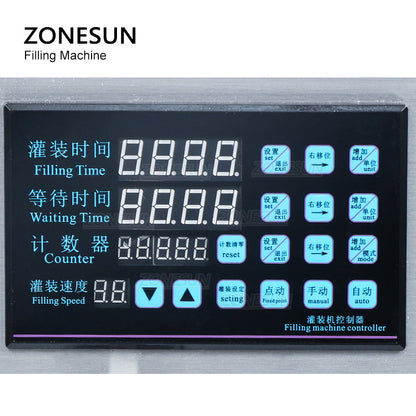

4. With simple control panel, operator can set the filling time and filling speed. Easy to operate.
PARAMETER
|
Machine Model |
ZS-NP1 |
|
Machine Power |
AC 220V/110V 50-60Hz 80W |
|
Machine Pump |
Peristaltic Pump |
|
Max Flow Rate |
2L/min(based on water) |
|
Filling Range |
3-20ml(Viscous Liquid) 3-200ml(Fluid Liquid) |
|
Filling Speed |
5-400 bottles/min(depend on bottle size and liquid) |
|
Filling Accuracy |
±1% |
|
Suitable Bottle Height |
≤100mm |
|
Suitable Bottle Diameter |
50mm |
|

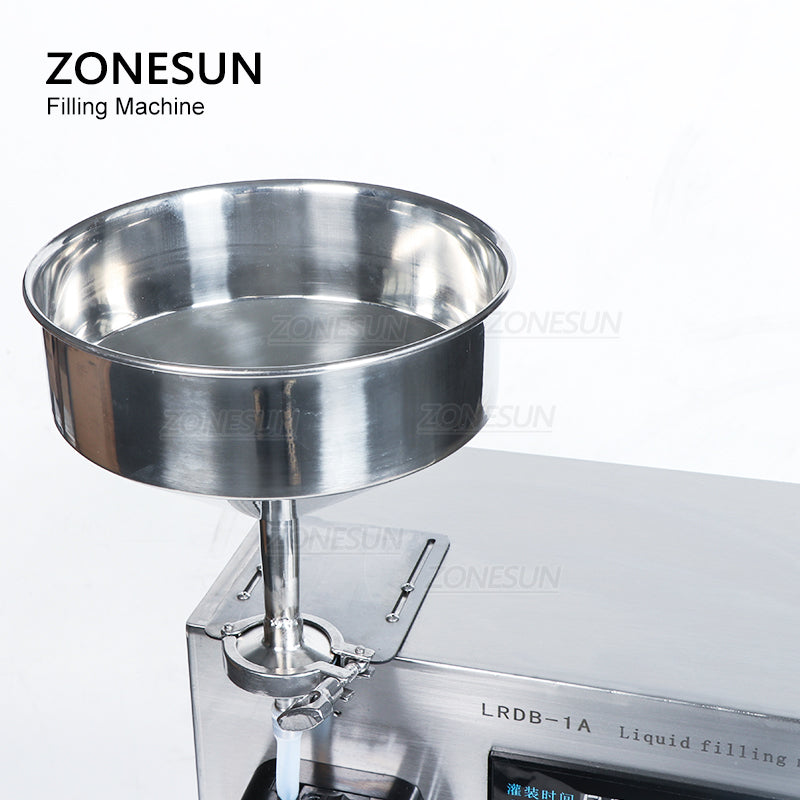

Height of Hopper |
230mm |
|
Diameter of Filling Nozzle |
Φ6mm(Left Ordinary Nozzle) Φ5mm(Right Hang Bottle Nozzle) |
|
Delay Range |
0.01s -999.9s |
|
Count Range |
1-59999 times |
|
Machine Size |
360mm*350mm*420mm |
|
Machine Weight |
9.63kg |
|
Package Size |
460mm*460mm*520mm |
|
Package Weight |
12.5kg |
APPLICATION
This machine is suitable for filling viscous liquid like nail polish, honey, hand sanitizer, etc. Also it can be used to fill water, beverage, perfume and so on. It can be widely used in cosmetic, food, pharmaceutical industries.
