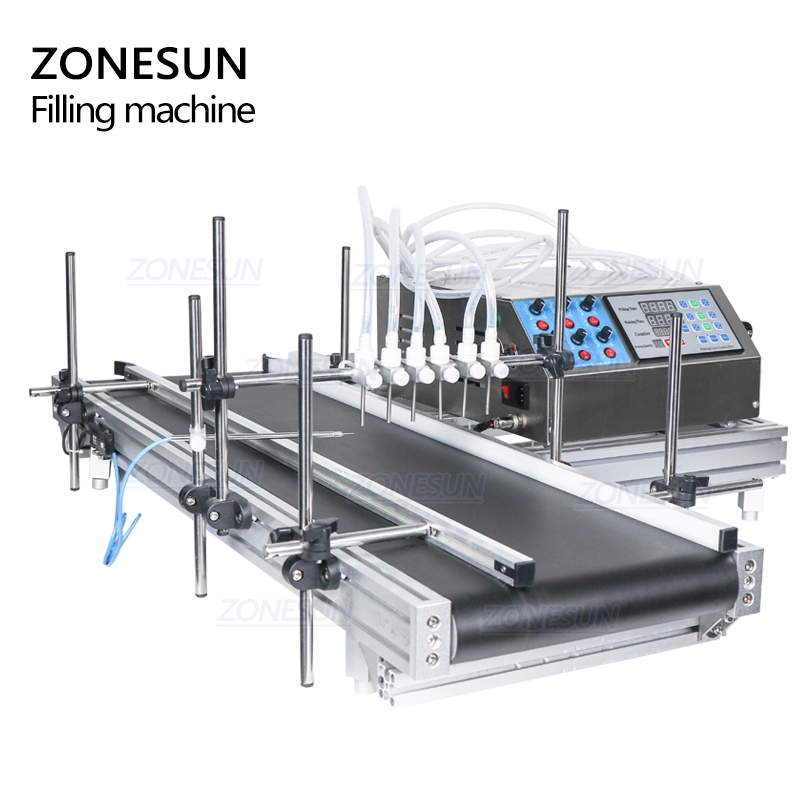

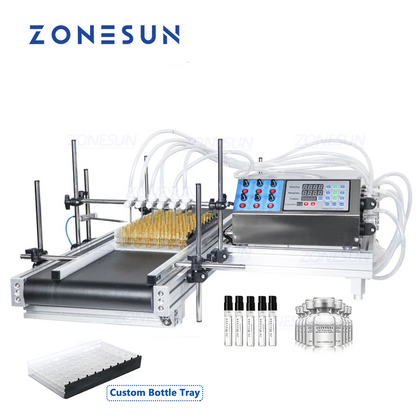

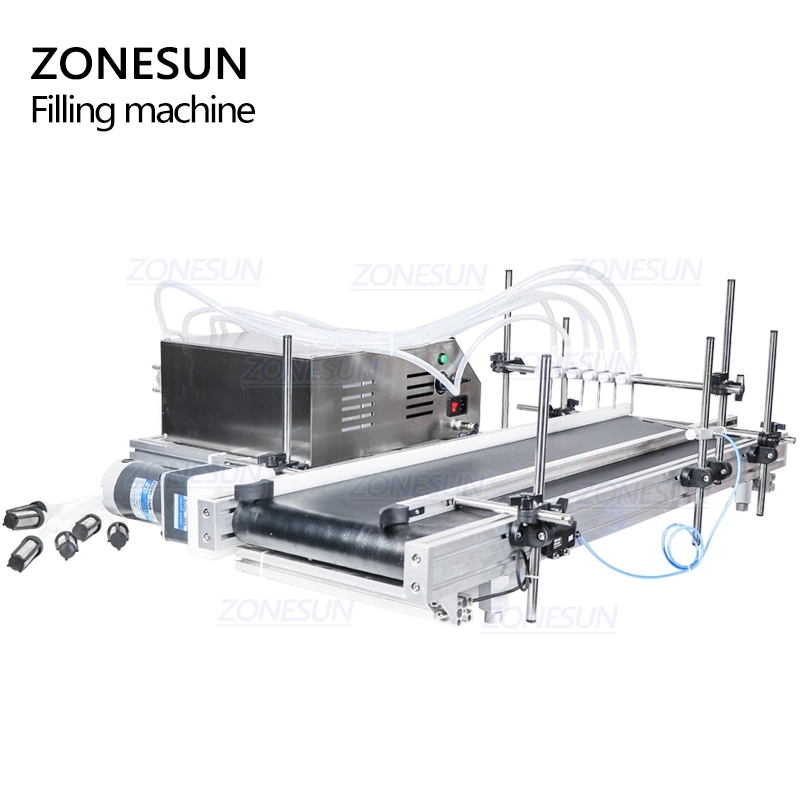

ZONESUN ZS-DTPP6B Desktop 6 Heads Peristaltic Pump Liquid Filling Machine With Conveyor
ZONESUN ZS-DTPP6B Desktop 6 Heads Peristaltic Pump Liquid Filling Machine With Conveyor
Couldn't load pickup availability
Notice
1.We default shipping the machine whose filling range is 5-50ml.
2.If you want the one whose filling range is 0.3-5ml,
[1] Please remark when placing the order. Or we'll ship the 5-50ml one.
[2]The pump and appearance of the0.3-5ml machine is different from the one shown on the page. Please contact us to confirm it. Thank you!
Parameter
|
Machine model |
ZS-DTPP6B |
|
Power supply |
AC110V/220V 50Hz-60Hz 60W*6 |
|
Filling Range |
A. 5-50ml (default) B.0.3-5ml |
|
Maximum flow |
650ml/min for each nozzle (based on water ) |
|
Filling nozzles |
6(we can customize nozzles based on your demands) |
|
Working speed |
40-50bottles/min(based on 50ml-water) |
|
Filling accuracy |
≤±1% (For water) |
|
Diameter of filling nozzle |
4mm |
|
Delay range |
0.01-999.9s |
|
Conveyor size |
1080*350mm(L*W) |
|
Machine size |
About 320*440*300mm(Without conveyor belt) |
|
Net weight |
About 31kg |
Description

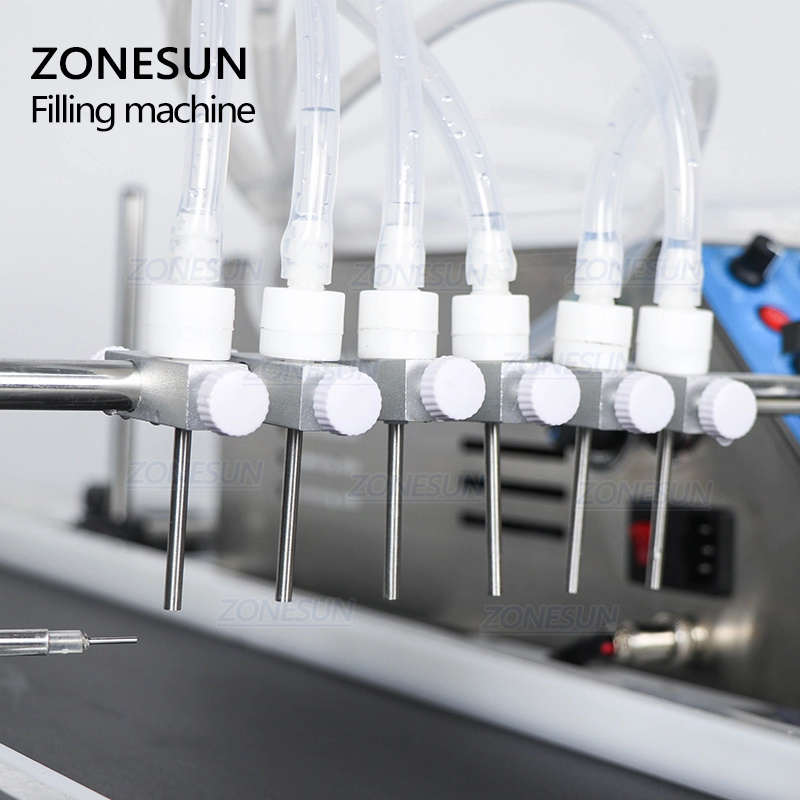

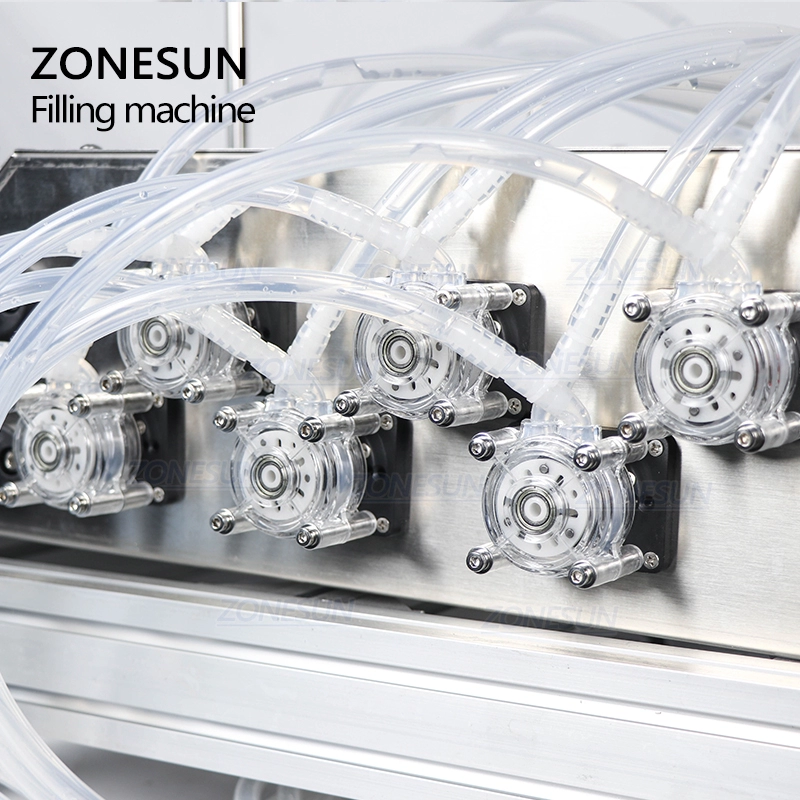

This desktop automatic filling machine is suitable for small volume liquid like solvent, essential oil, reagent, etc. The six nozzles can be controlled separately, easy to operate. With peristaltic pump, the liquid won't pass through the pump, ensuring its cleanliness. This machine can be widely used in medicine, daily chemical, cosmetic, catering industries. Help to improve work efficiency.
Attention

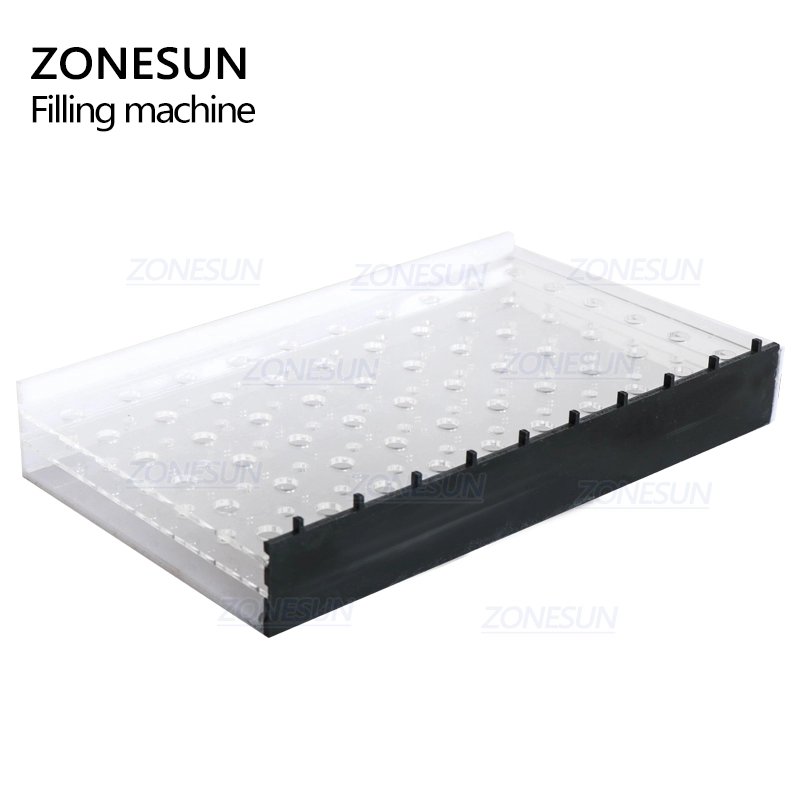

The bottle tray can be customized according to bottle's size. If you need, please contact us. Thank you!
