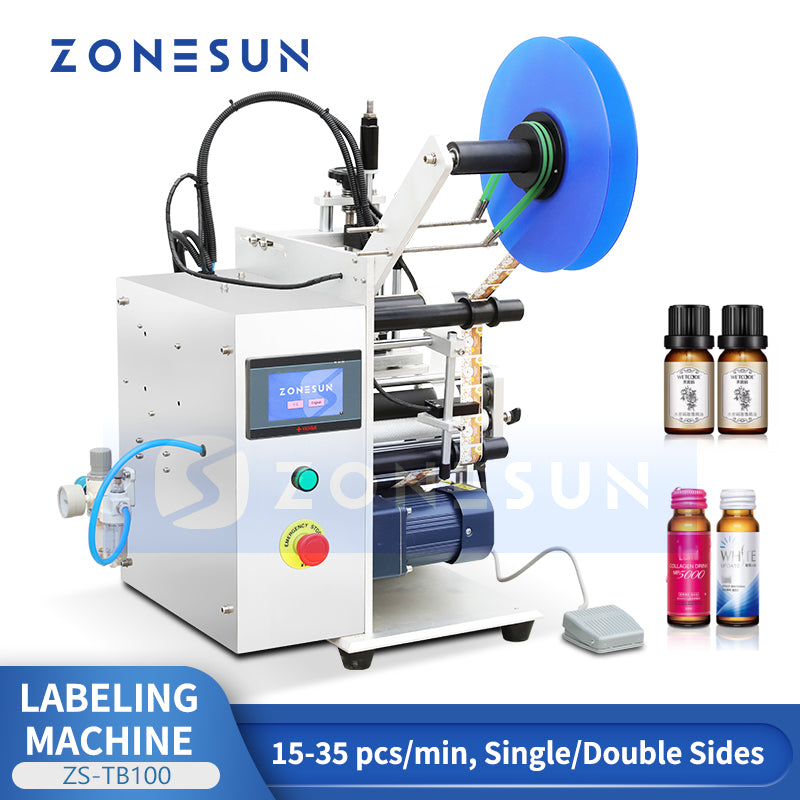

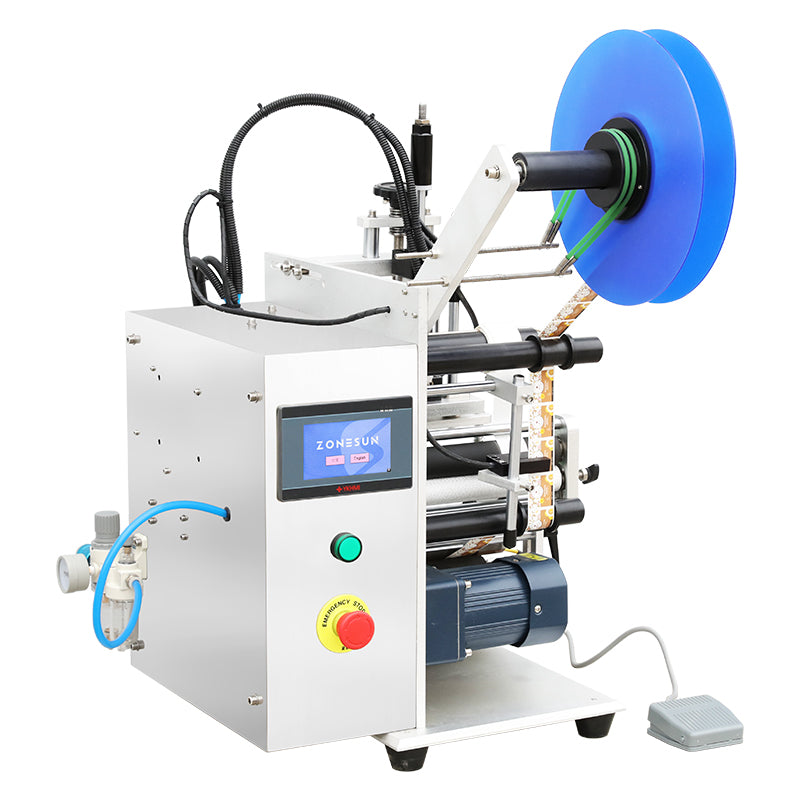

ZONESUN ZS-TB100 Semi Automatic Round Bottle Single Double Sides Labeling Machine
ZONESUN ZS-TB100 Semi Automatic Round Bottle Single Double Sides Labeling Machine
Couldn't load pickup availability
Parameter
|
Machine Model |
ZS-TB100S1 |
ZS-TB100S2 |
ZS -TB100S3 |
|
Main Feature |
Standard Version |
Automatic Discharge |
Without Control Panel |
|
Power Supply |
110V/220V 50-60HZ |
||
|
Working Speed |
15-35pcs/min |
20-40 or 15-35 pcs/min |
15-35pcs/min |
|
Labeling Accuracy |
±1mm |
||
|
Air Pressure |
0.4-0.6MPa |
||
|
Label Outputting Direction |
Right |
Left |
Right |
|
Labeling Object Diameter |
φ10-120mm |
φ10-30mm orφ10-120mm |
φ10-120mm |
|
Labeling Object Height |
≤250mm |
s250mm |
≤250mm |
|
Suitable Label Size |
15-170mm(W) |
15-170mm(W) |
150-170mm(W) |
|
Label Roll OD |
φ220mm |
||
|
Label Roll ID |
φ75mm |
||
|
Size of Air Compressor Connector |
OD8mm |
||
|
Machine Size |
About 410*475*720mm |
||
|
Package Size |
About 505*465*630mm |
||
|
Net weight/Gross weight |
About 32kg/34kg |
||
Description

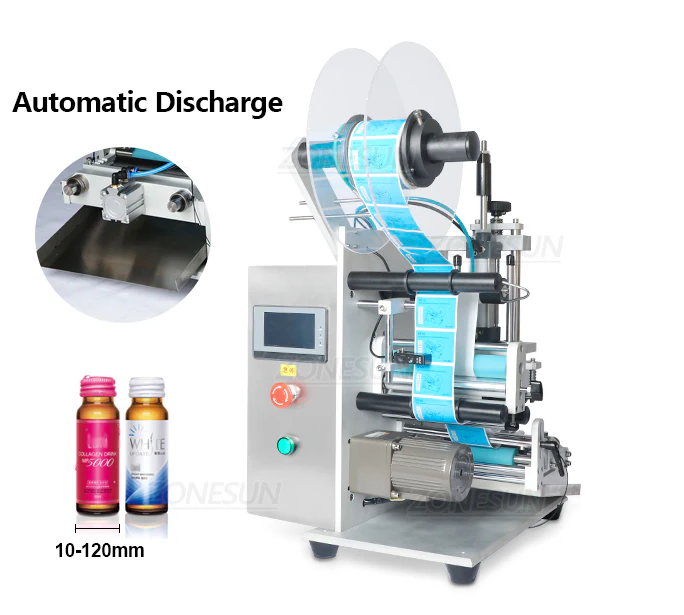

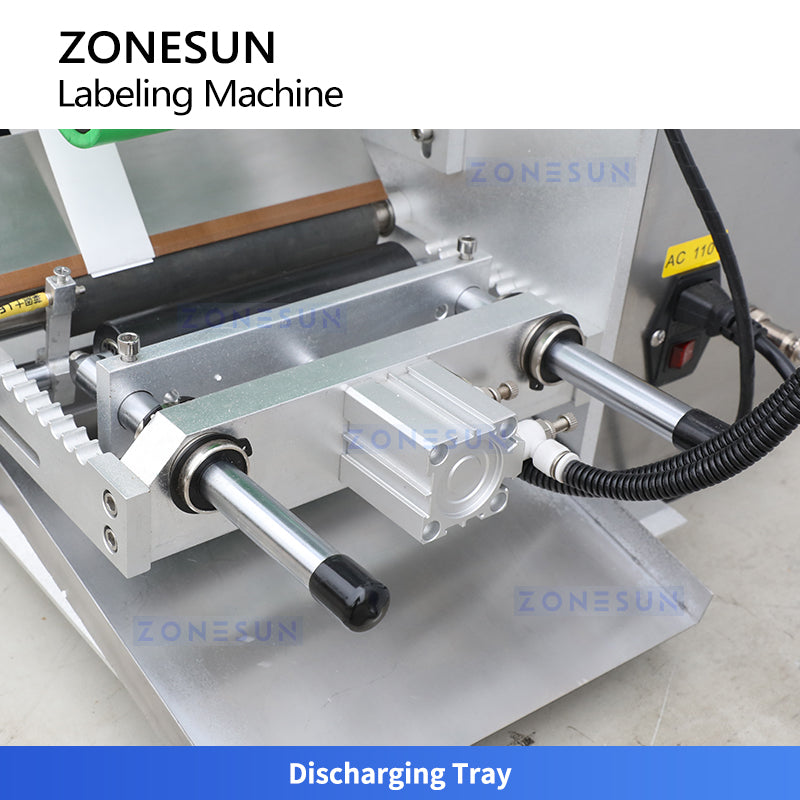

This semi automatic labeling machine is suitable for labeling products of small diameters, such as electronic cigarette, pen, penicillin bottles, reagent bottles, etc. It can be used for single side or double sides labeling. The ZS-TB100S2 machine is with automatic discharging function, helping to collect bottles after labeling. The machine can be widely used in pharmaceutical, cosmetic, beverage, daily chemical industries.
Attention
This machine can be euipped with a date coder, which can be used to print production date or batch on products. Please contact us if you need this.
