ZONESUN ZS-CPL Automatic Carton Sealing Packaging Machine
ZONESUN ZS-CPL Automatic Carton Sealing Packaging Machine
Couldn't load pickup availability
DESCRIPTION
The horizontal case packer is designed for day in, day out operation. This cost-effective machine makes use of a combination of servo and air cylinder motion control to erect, load, and seal your product in one compact system. Having the option of using regular slotted cases, half-slotted cases, trays, or wraparound cases gives you flexibility and adaptability for future use.
PARAMETER
|
Model |
ZS-CPL |
|
Power supply |
3Phase,220v/380v,50/60HZ,5kw |
|
Air pressure |
6kg/cm2, 450ml/min |
|
Machine size |
5500-7500*1600*2500mm |
|
Suitable bottle type |
All kinds of bottles/cans |
|
Packing speed |
18-30 cartons/min |
|
Feeding bottle height |
1100mm¡À50mm |
|
Grab quantity |
3-6 sets |
|
Weight |
200kg |
ATTENTION |
|
|
1. This is a fully custom machine, which means we need the information about your products. 2. The parameter varies for different products. 3. All images are for illustration purposes only and actual products may vary due to product?enhancement or change. |
|
?
?
?
PRODUCT DETAILS
?
ROBOT GRIPPER
?
Vacuum sucker, no damage to products, applicable to various bottles, jars, and tins.
LIFTING MECHANISM
?
Double sprockets, stable and durable.
?
ORGANIZING MECHANISM
?
Dividing lanes to arrange bottles neatly, efficient and labor-saving.?
?
DETECTION
?
Smart sensing for the coming products, automatically stops when there is a lack of material.?
?

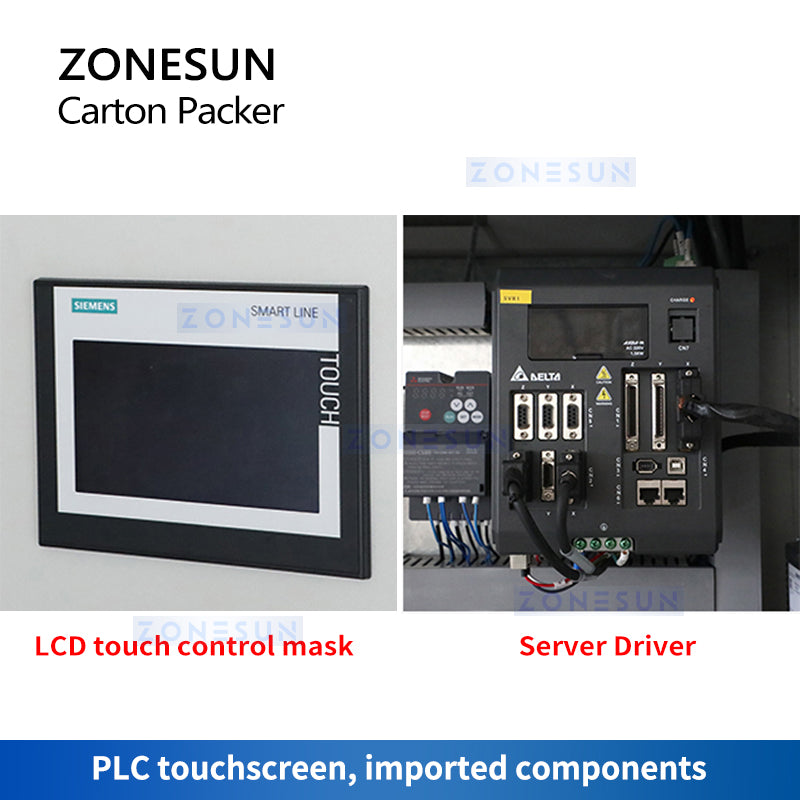

CONTROLS
?
PLC touchscreen, imported components, smart and intuitive.?
?
