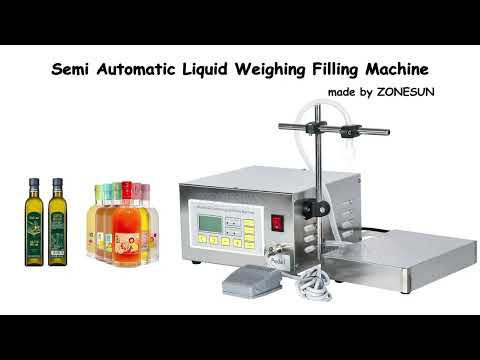

ZONESUN ZS-DP641W 30-6000ml Semi Automatic Diaphragm Pump Liquid Weighing Filling Machine
ZONESUN ZS-DP641W 30-6000ml Semi Automatic Diaphragm Pump Liquid Weighing Filling Machine
Couldn't load pickup availability
Parama
Parameter
|
Machine Model |
ZS-DP641W |
|
Machine Power |
220V/110V 80W |
|
Machine Pump |
Diaphragm Pump |
|
Max Flow Rate |
6L/min |
|
Filling Range |
30mL-6L |
|
Weighing Range |
30g-10kg |
|
Repetitive Error |
±5g |
|
Filling Nozzle Diameter |
8mm |
|
Hose Diameter |
7mm(ID)/11mm(OD) |
|
Hose Length |
2m(inlet)/1.4m(outlet) |
|
Max Suction Distance |
3m |
|
Max Head of Delivery |
2m |
|
Liquid Temperature |
＜55℃ |
|
Machine Weight |
4.5kg |
|
Machine Size |
300mm*310mm*200mm |
|
Package Weight |
5.5kg |
|
Package Size |
400mm*370mm*200mm |
Description

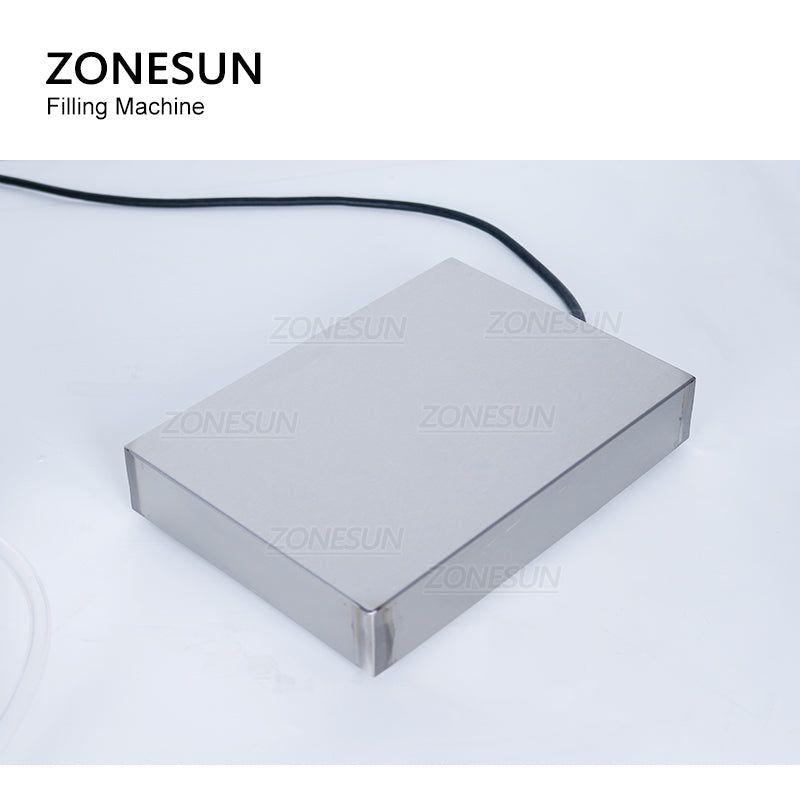

This semi automatic weighing filling machine is suitable for filling low-viscosity liquid that is without particle, such as beverage, perfume, essential oil. With electronic scale, it can fill liquid more accurately. It is equipped with a food-grade diaphragm pump, which ensures the quality of the liquid. It can be widely used in pharmaceutical, beverage, food, cosmetic industries.
eter
|
Machine Model |
ZS-DP641W |
|
Machine Power |
220V/110V ??80W |
|
Machine Pump |
Diaphragm Pump |
|
Max Flow Rate |
6L/min |
|
Filling Range |
30mL-6L |
|
Weighing Range |
30g-10kg |
|
Repetitive Error |
¡À5g |
|
Filling Nozzle Diameter |
8mm |
|
Hose Diameter |
7mm(ID)/11mm(OD) |
|
Hose Length |
2m(inlet)/1.4m(outlet) |
|
Max Suction Distance |
3m |
|
Max Head of Delivery |
2m |
|
Liquid Temperature |
£¼55¡æ |
|
Machine Weight |
4.5kg |
|
Machine Size |
300mm*310mm*200mm |
|
Package Weight |
5.5kg |
|
Package Size |
400mm*370mm*200mm |
?
Description
This semi automatic weighing filling machine is suitable for filling low-viscosity?liquid that is without particle, such as beverage, perfume, essential oil. With electronic scale, it can fill liquid more accurately. It is equipped with a?food-grade diaphragm pump, which ensures the quality of the liquid. It can be widely used in pharmaceutical, beverage, food, cosmetic industries.
?
