ZONESUN ZS-DPYT200L 5-500ml Automatic 2 Heads Liquid Filling Machine With Longer Conveyor
ZONESUN ZS-DPYT200L 5-500ml Automatic 2 Heads Liquid Filling Machine With Longer Conveyor
Couldn't load pickup availability
Feature

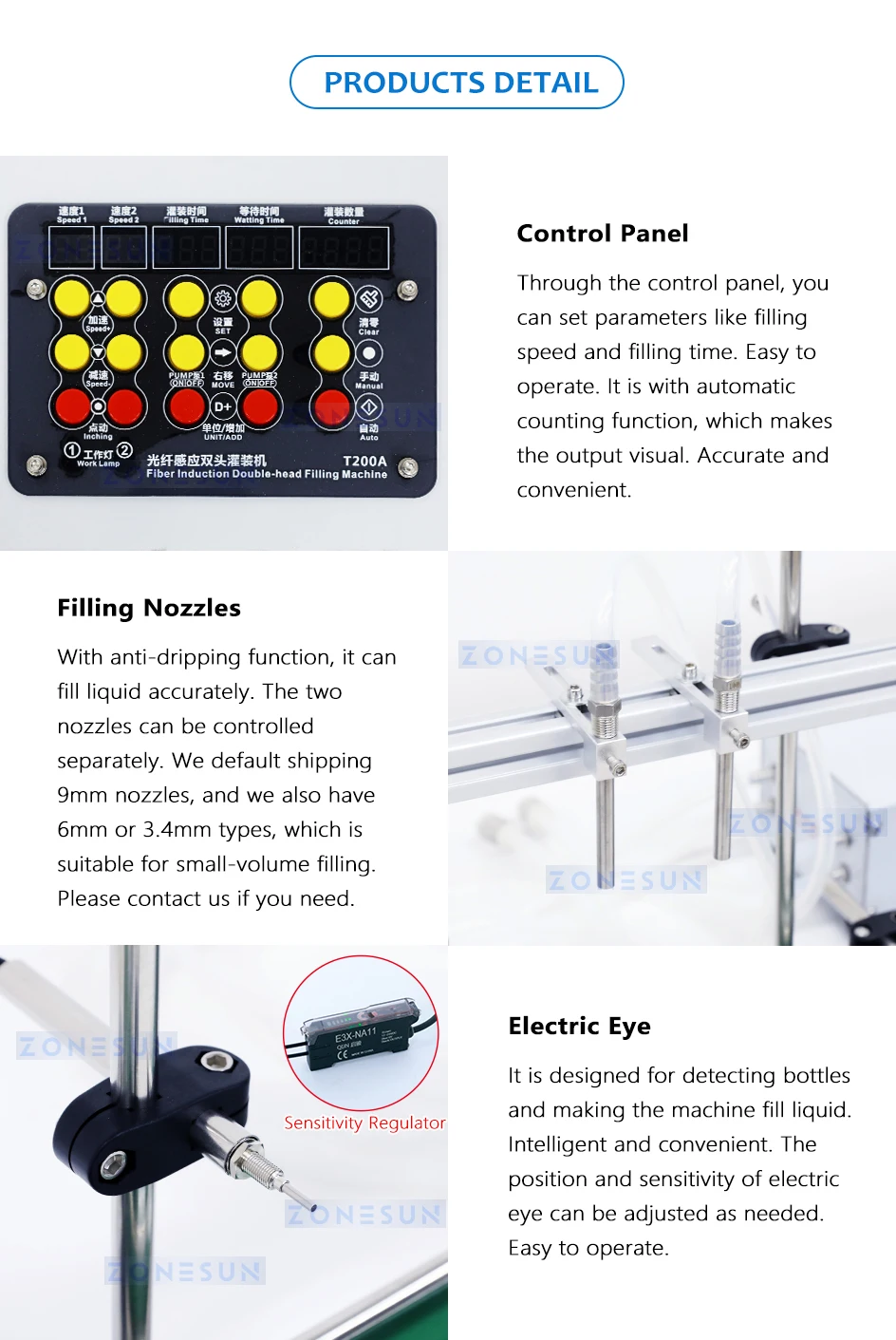

1.The filling speed of two nozzles can be controlled separately, easy to operate.
2.The conveyor belt is lengthened, whose length is 1200mm, greatly improving work efficiecy. It is also with waterproof function.
3.With digital control panel, it is easy to set parameters like filling time.
4.With intelligent electric eye, it can detect bottles accurately.

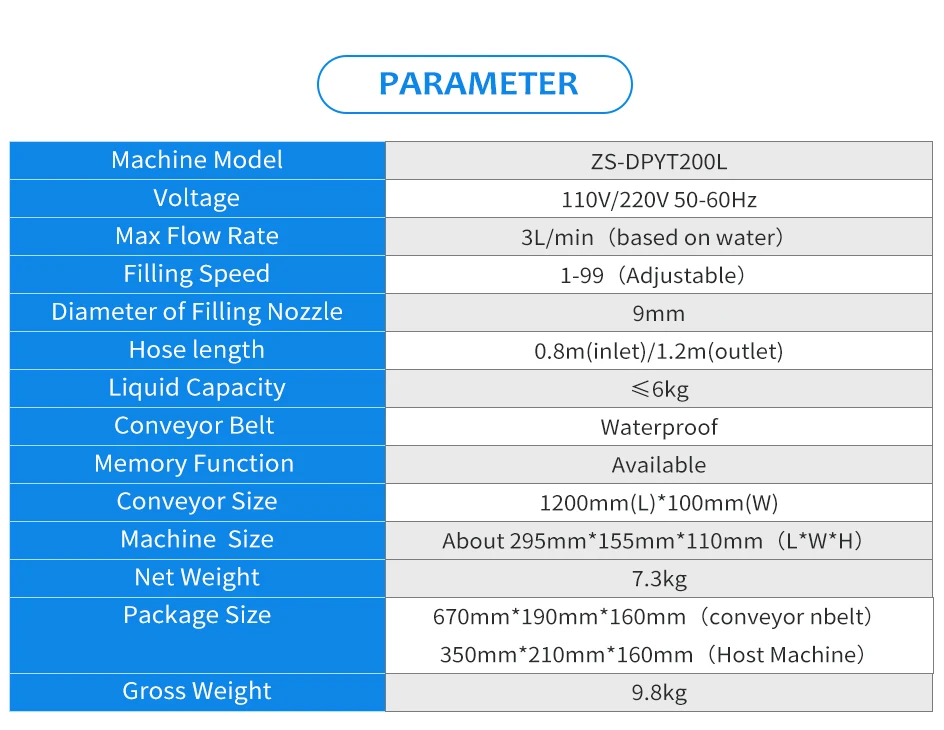

Parameter
|
Machine Model |
ZS-DPYT200L |
|
Voltage |
110V/220V 50-60Hz |
|
Filling Range |
5-500mL |
|
Max Flow Rate |
3L/min (based on water) |
|
Filling Speed |
1-99 (Adjustable) |
|
Filling Time |
0.1-999s |
|
Applicable Bottle Size |
Diameter: 0-100mm Height: 0-300mm |
|
Diameter of Filling Nozzle |
OD 9mm(Can choose 6mm or 3.4mm) |
|
Hose Length |
0.8m(inlet)/1.2m(outlet) |
|
Hose Diameter |
7mm(ID)/10mm(OD) |
|

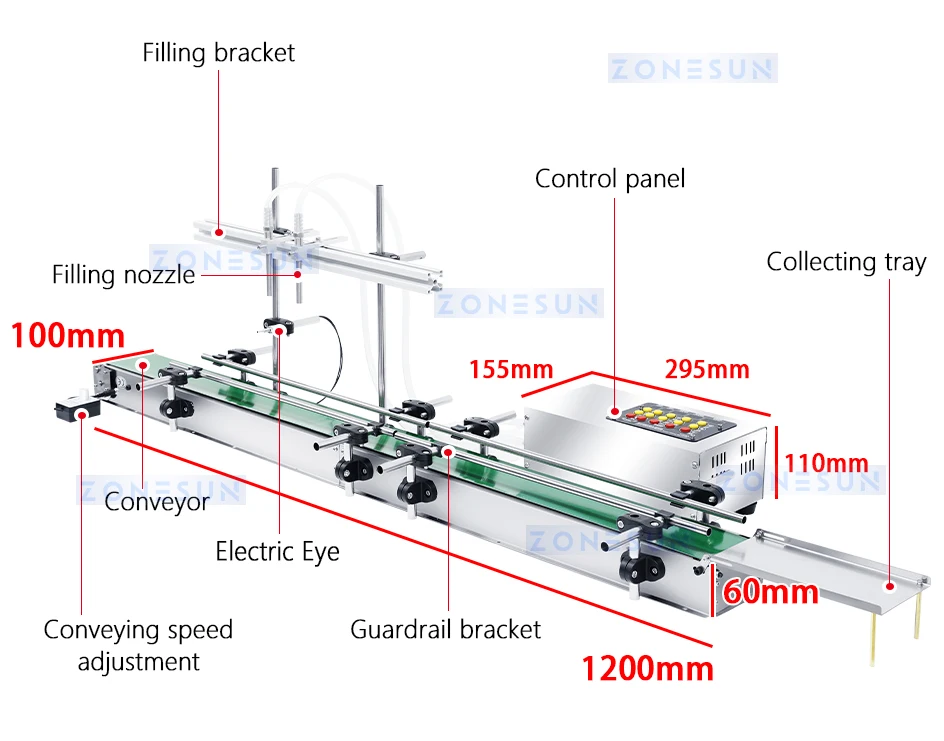

Conveyor Size |
1200mm(L)*100mm(W) |
|
Liquid Temperature |
Max 60℃ |
|
Conveyor Belt |
Waterproof |
|
Memory Function out of power |
Available |
|
Machine Size |
About 295mm*155mm*105mm |
|
Net Weight |
7.3kg |
|
Package Size |
670*200*170mm(conveyor belt) 350*200*160mm(host machine) |
|
Gross Weight |
8kg |
Application
This machine is suitable for filling low-viscosity liquid which is without particles, such as essential oil, juice, milk, etc. It is in small size, which is an ideal choise for indivisual workshop.
