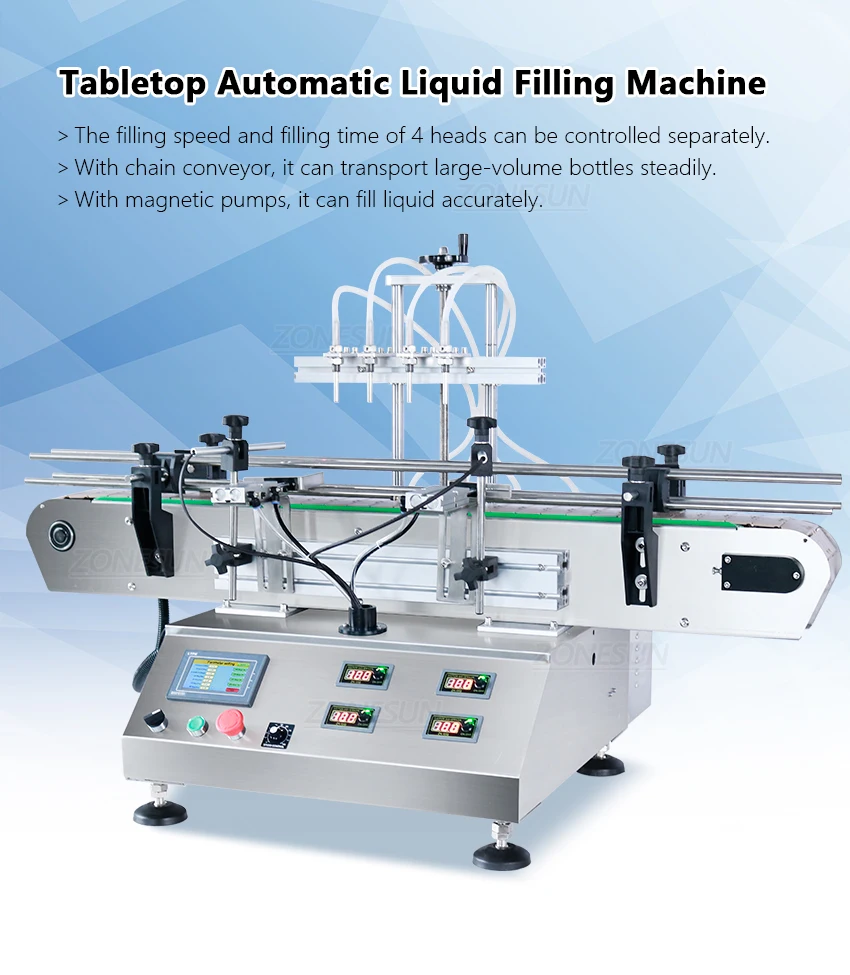

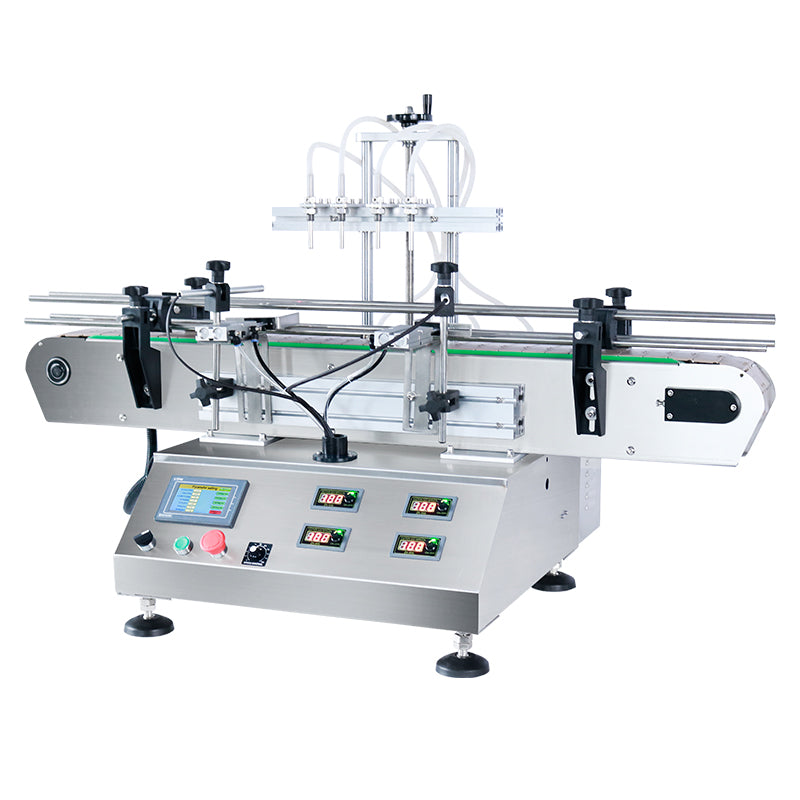

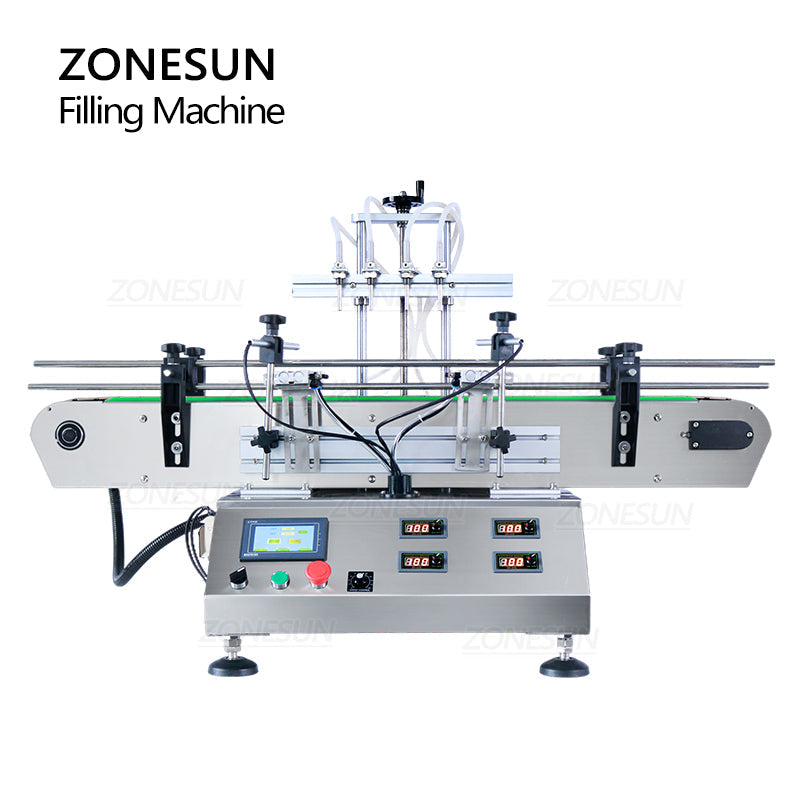

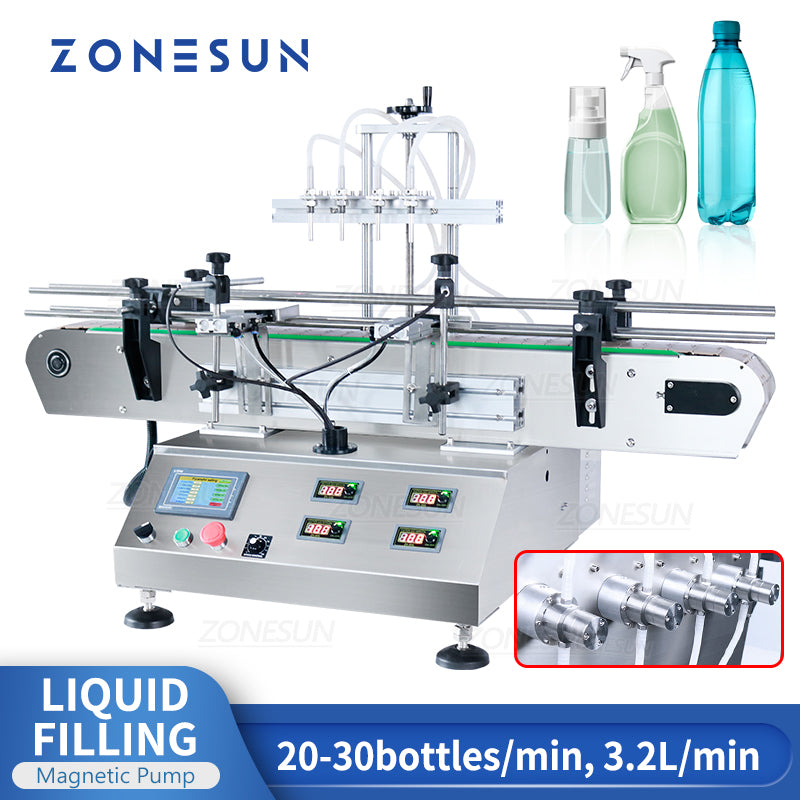

ZONESUN ZS-DTMP4C Desktop 4 Nozzles Magentic Pump Liquid Filling Machine
ZONESUN ZS-DTMP4C Desktop 4 Nozzles Magentic Pump Liquid Filling Machine
Couldn't load pickup availability

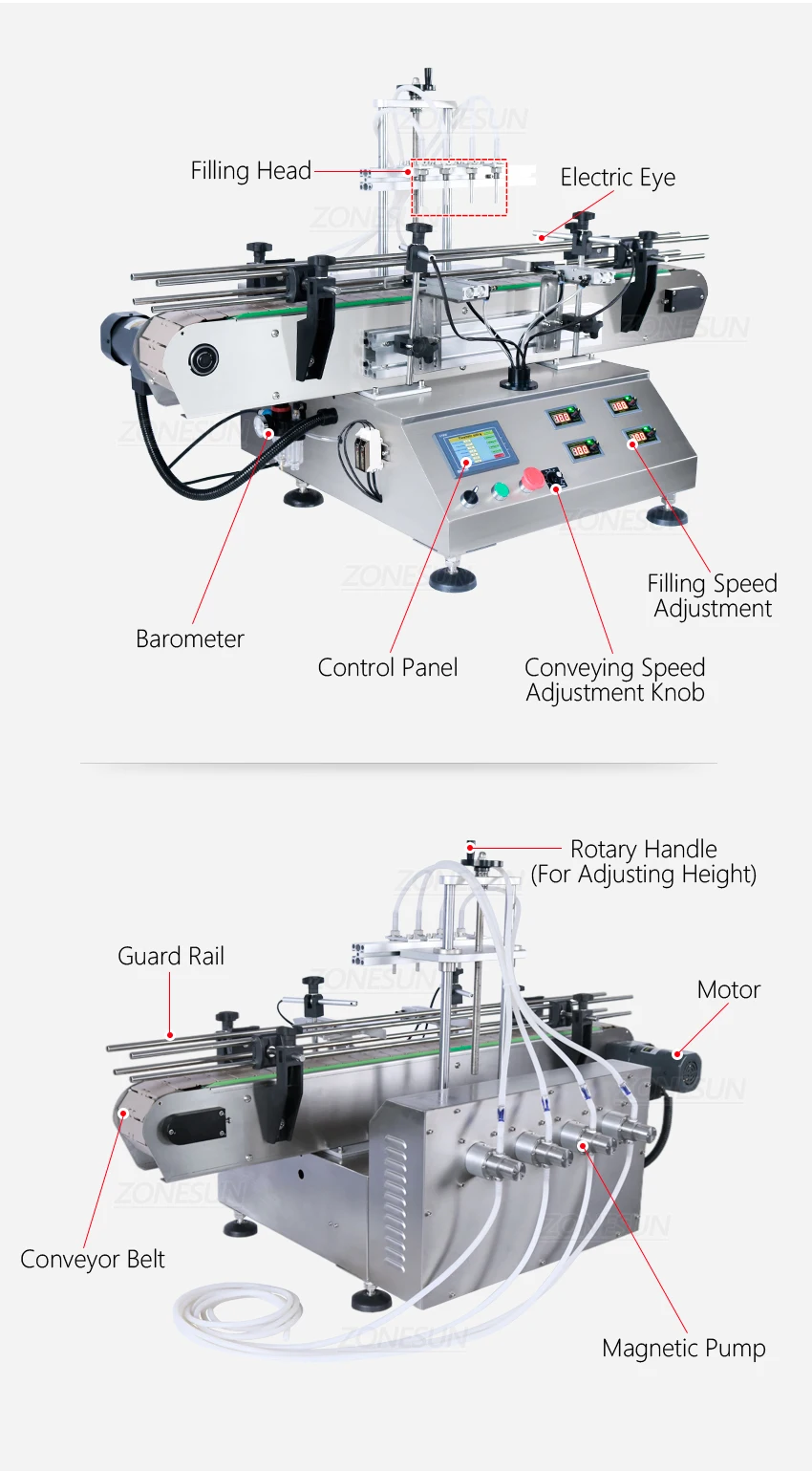

Feature

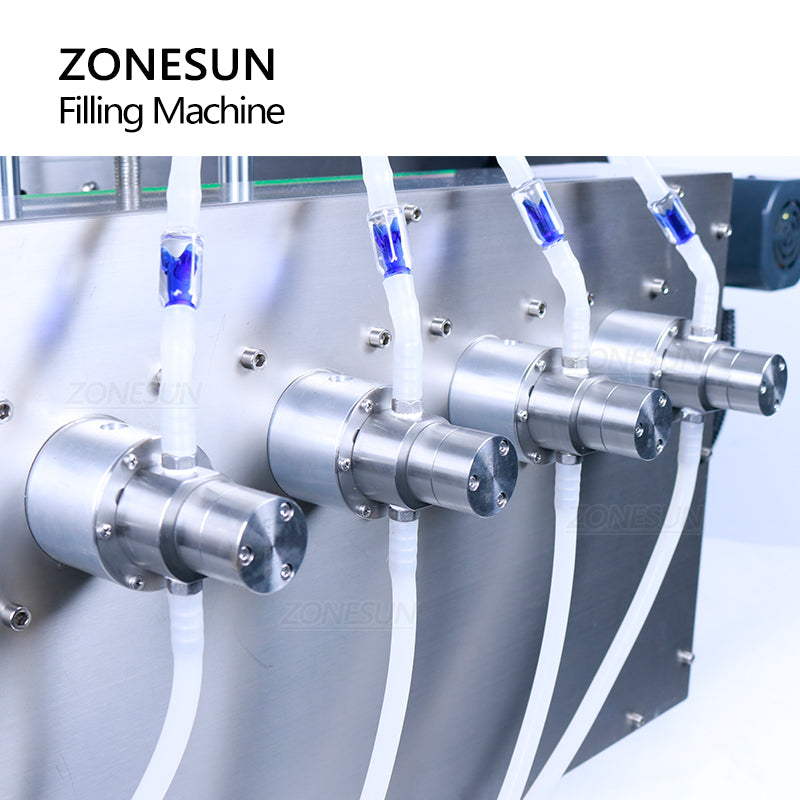

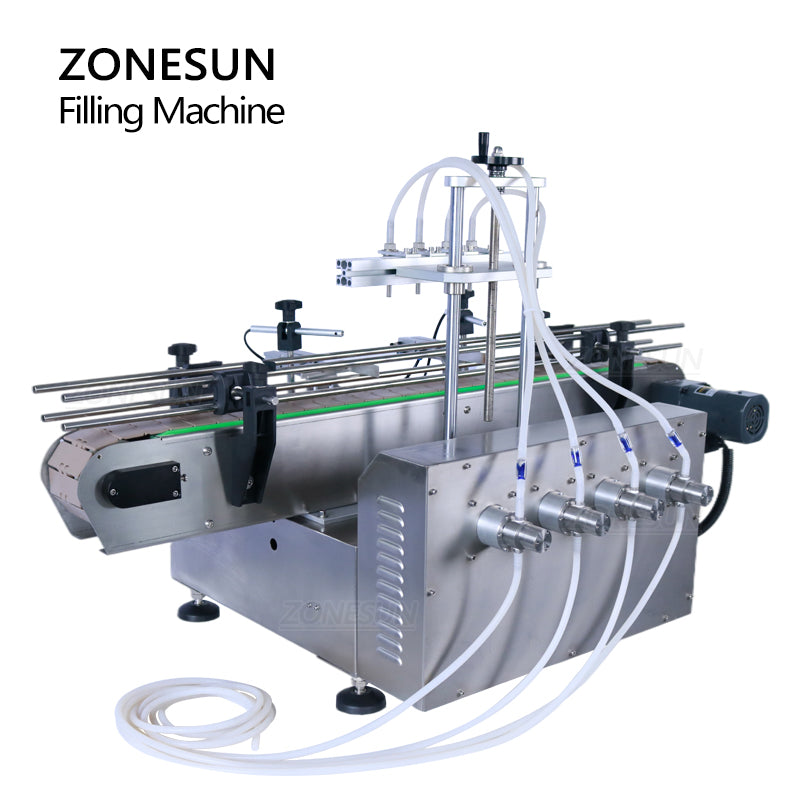

1.With magnetic pump, it has the advantage of high temperature resistance and corrosion resistance. Durable and reliable.

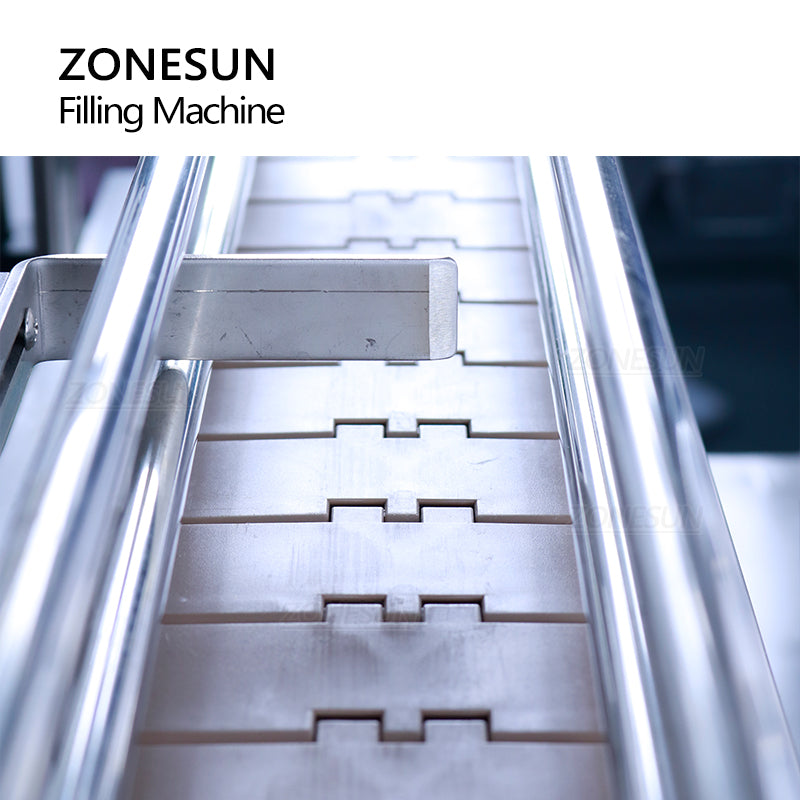

2.With high-quality chain conveyor belt, it can transport large-volume containers smoothly and steadily.

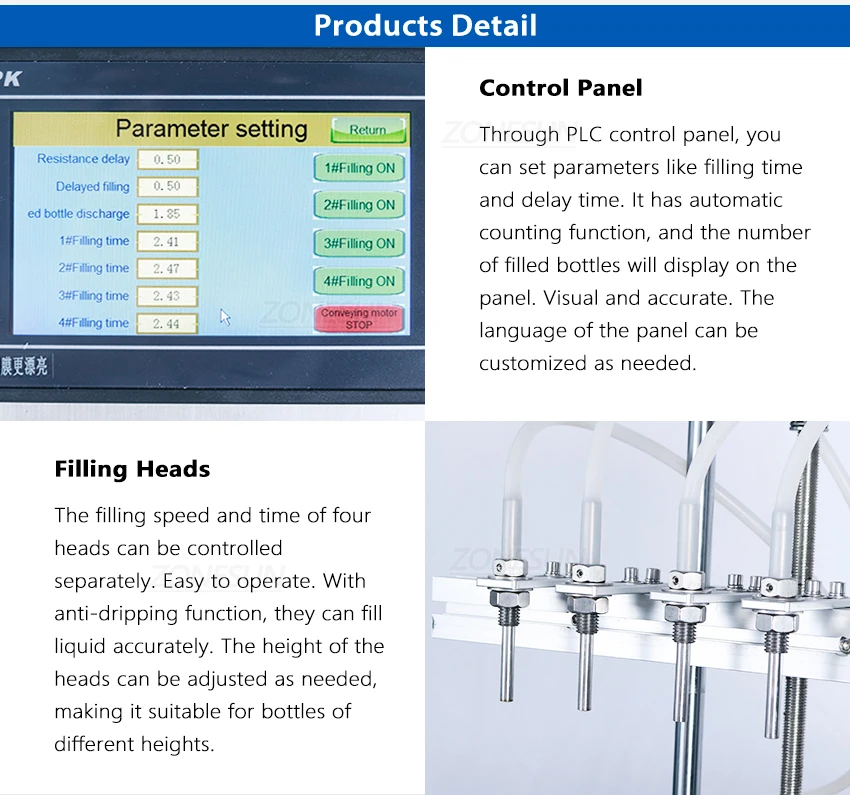

3.With PLC control panel, it is easy to set the working parameters.

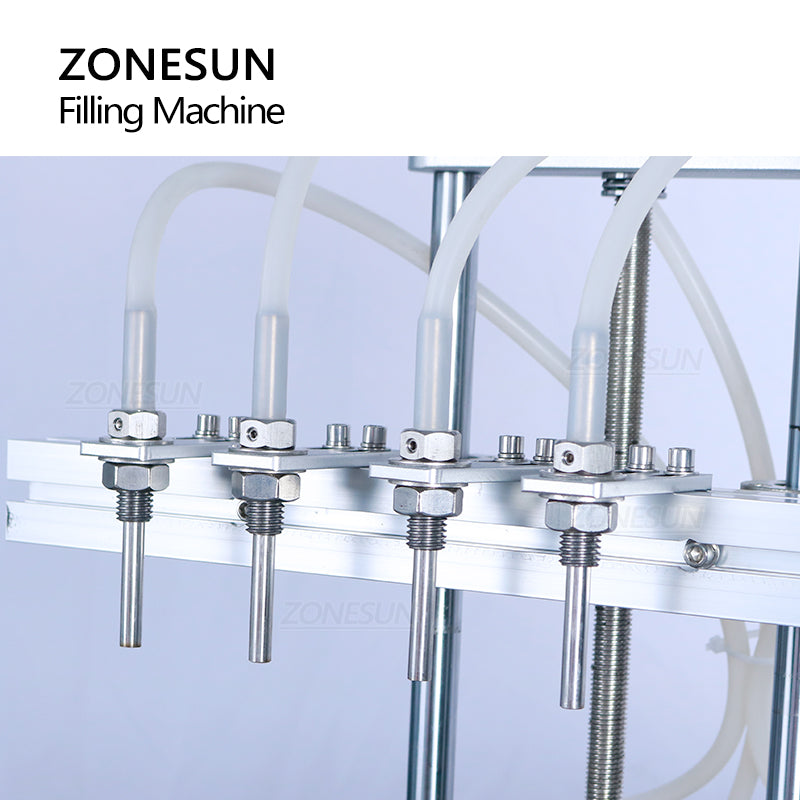

4.The filling speed of four nozzles can be controlled separately.
5.With electric eye, it can detect bottles accurately and control the machine to work, intelligent and efficient.

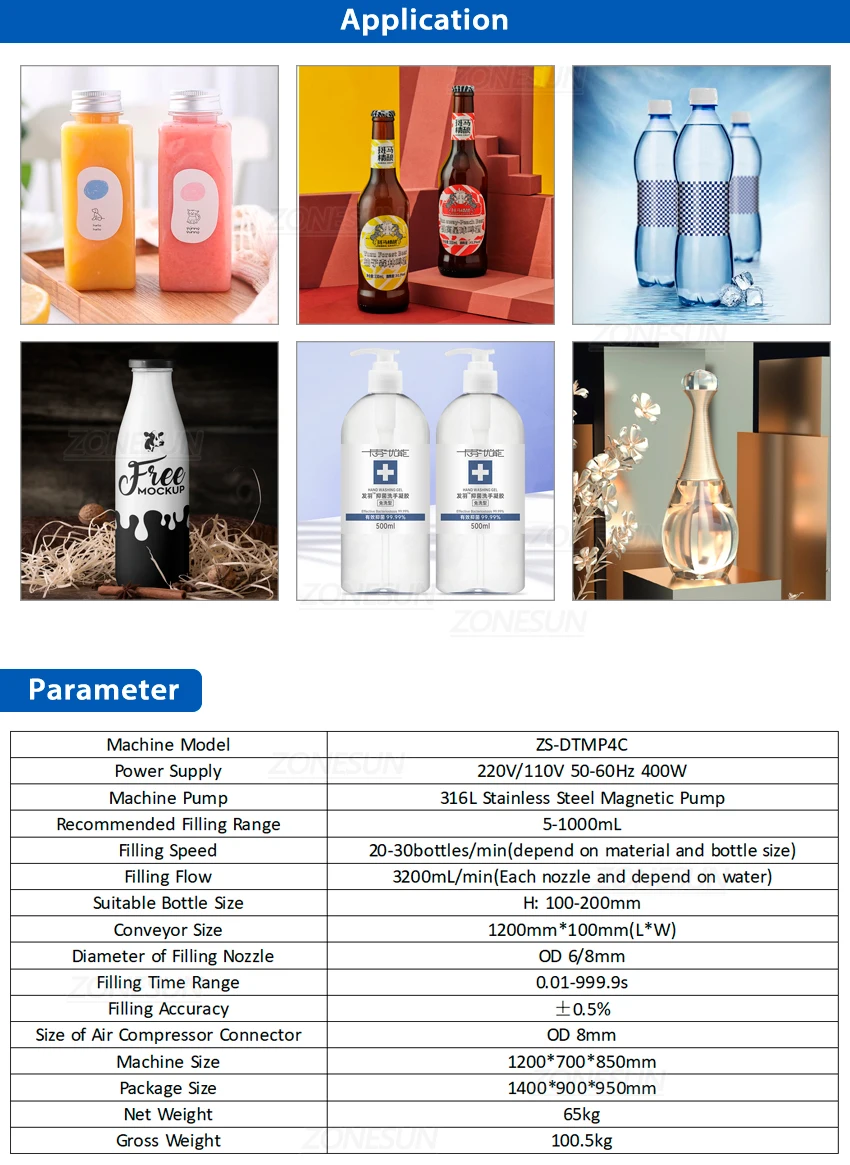

Parameter
|
Machine Model |
ZS-DTMP4C |
|
Power Supply |
220V/110V 50-60Hz 400W |
|
Machine Pump |
316L Stainless Steel Magnetic Pump |
|
Recommended Filling Range |
5-1000mL |
|
Filling Speed |
20-30bottles/min(depend on material and bottle size) |
|
Filling Flow |
3200mL/min(Each nozzle and depend on water) |
|
Suitable Bottle Size |
H: 100-200mm |
|
Conveyor Size |
1200mm*100mm(L*W) |
|
Diameter of Filling Nozzle |
OD 6/8mm |
|
Filling Time Range |
0.01-999.9s |
|
Filling Accuracy |
±0.5% |
|
Size of Air Compressor Connector |
OD 8mm |
|
Machine Size |
1200*700*850mm |
|
Package Size |
1400*900*950mm |
|
Net Weight |
65kg |
|
Gross Weight |
100.5kg |
Application
This machine is suitable for filling low-viscosity liquid, such as juice, drink, essential oil, ink, lotion, etc. It can be used in small production line, which can be connected with desktop capping machine and labeling machine, improving working efficiency. The machine can be widely used in medicine, beverage, cosmetic industries.
