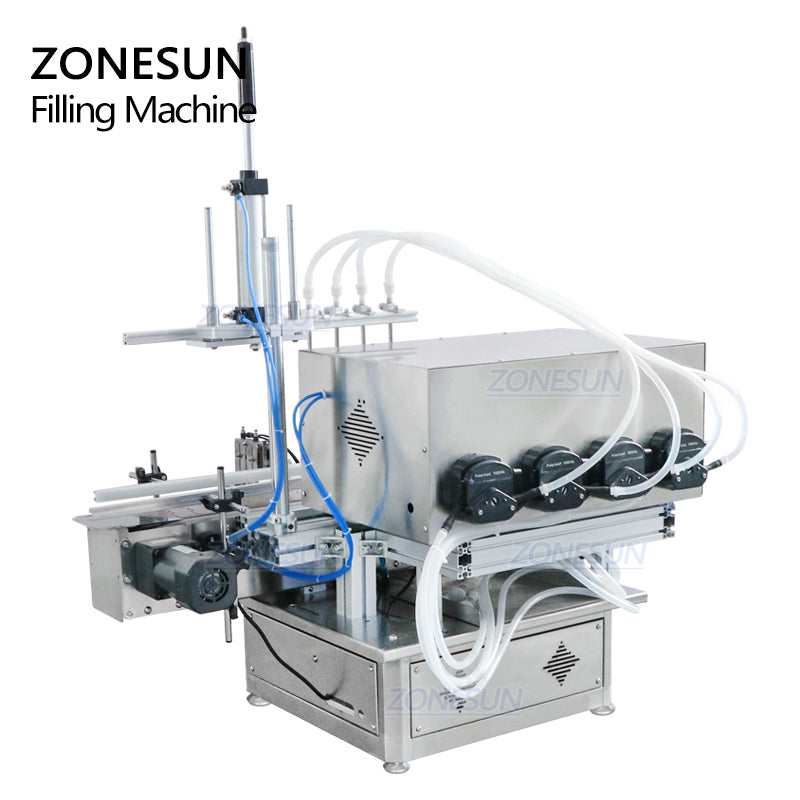

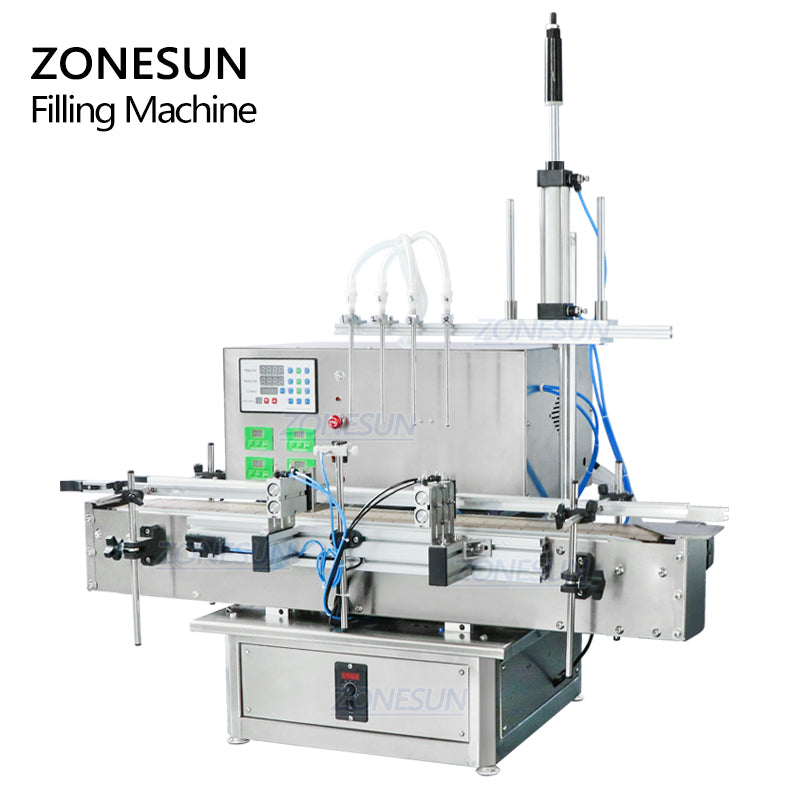

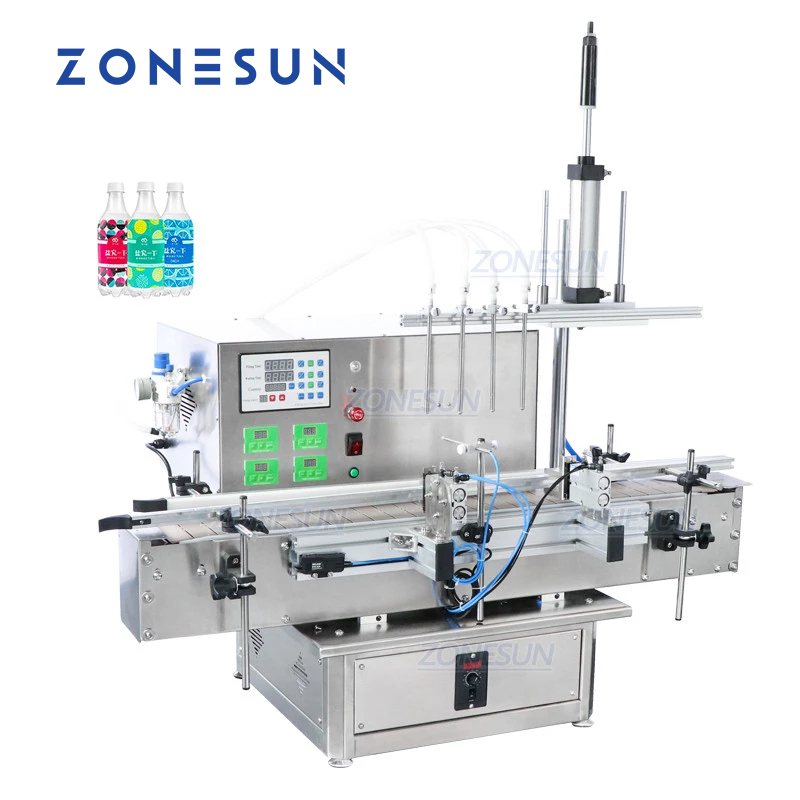

ZONESUN ZS-DTPP4D Desktop 4 Diving Nozzles Peristaltic Pump Liquid Filling Machine
ZONESUN ZS-DTPP4D Desktop 4 Diving Nozzles Peristaltic Pump Liquid Filling Machine
Couldn't load pickup availability
Feature

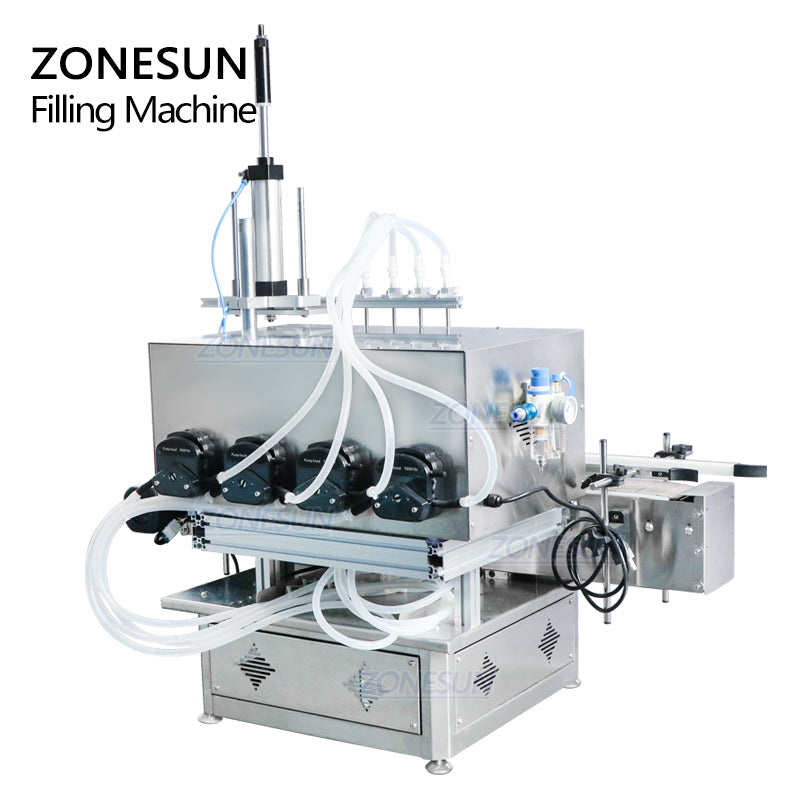

1.Equipped with peristaltic pumps, the liquid won't pass through the pumps, ensuring its quality.

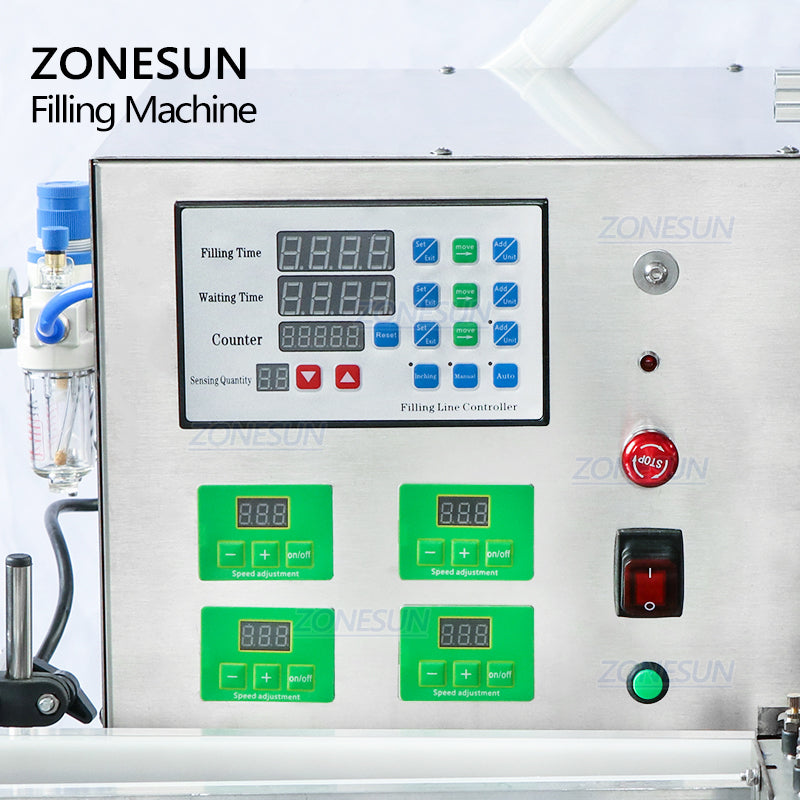

2.The filling speed of four nozzles can be controlled separately. Easy to operate.
3.With electric eye, it can detect bottles accurately and control the machine to work, intelligent and efficient.
4.With high-quality conveyor belt, it can transport bottles stably, improving work efficiency.
5.It is in small size and can work automatically, saving labor cost.
6.This machine can work with desktop capping machine and labeling machine, realizing automated production.
Parameter
|
Machine model |
ZS-DTPP4D |
|
Power supply |
AC110V/220V 50Hz-60Hz 60W(Each Pump) |
|
Filling Range |
2500ml/min |
|
Maximum flow |
2500m/min for each nozzle (based on water ) |
|
Filling nozzles |
4(we can customize the nozzles based on your demands) |
|
Working speed |
30-50 bottles/min(based on bottles and liquids) |
|
Air pressure |
0.3-0.4MPa |
|
Filling accuracy |
≤±1% (For water) |
|

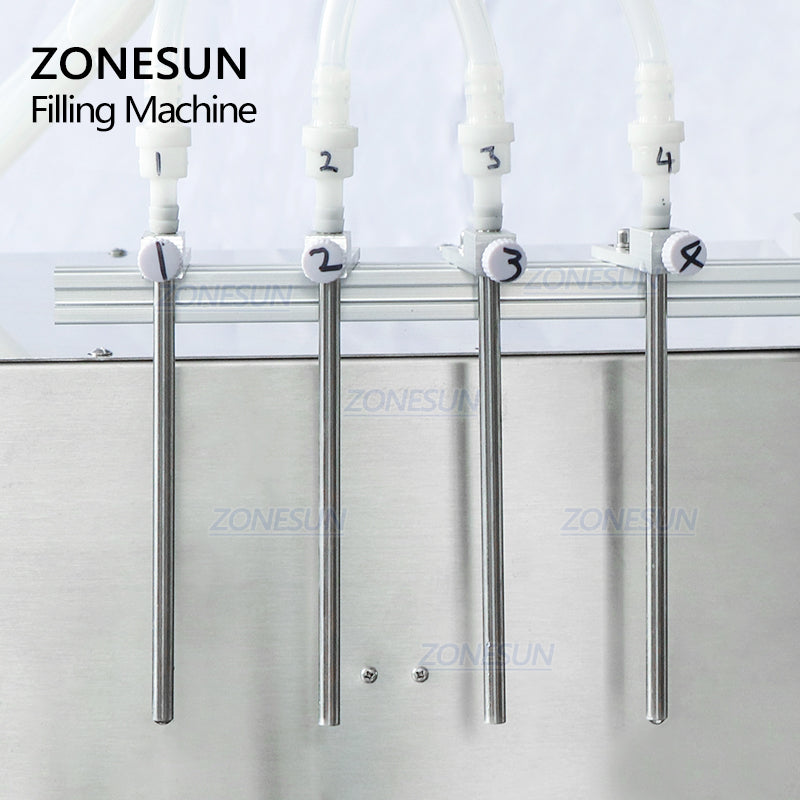

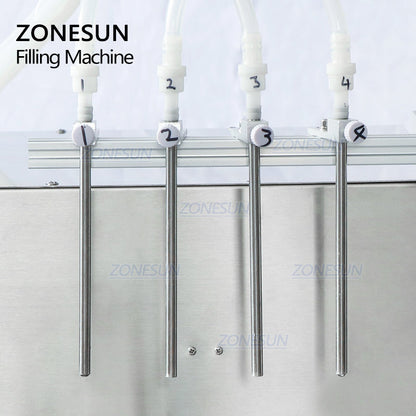

Diameter of filling nozzle |
6/8mm |
|
Delay range |
0.01-999.9s |
|
Belt length |
1m |
|
Size of air compressor connector |
OD8mm |
|
Package size |
About 1150*770*840mm |
|
Package weight |
About 110kg |
Application
This machine is suitable for filling low-viscosity liquid, such as juice, milk, water, essential oil, perfume, etc. With diving nozzles, it can be used for foamy liquid. The machine can be widely used in pharmaceutical, beverage, cosmetic industries.
