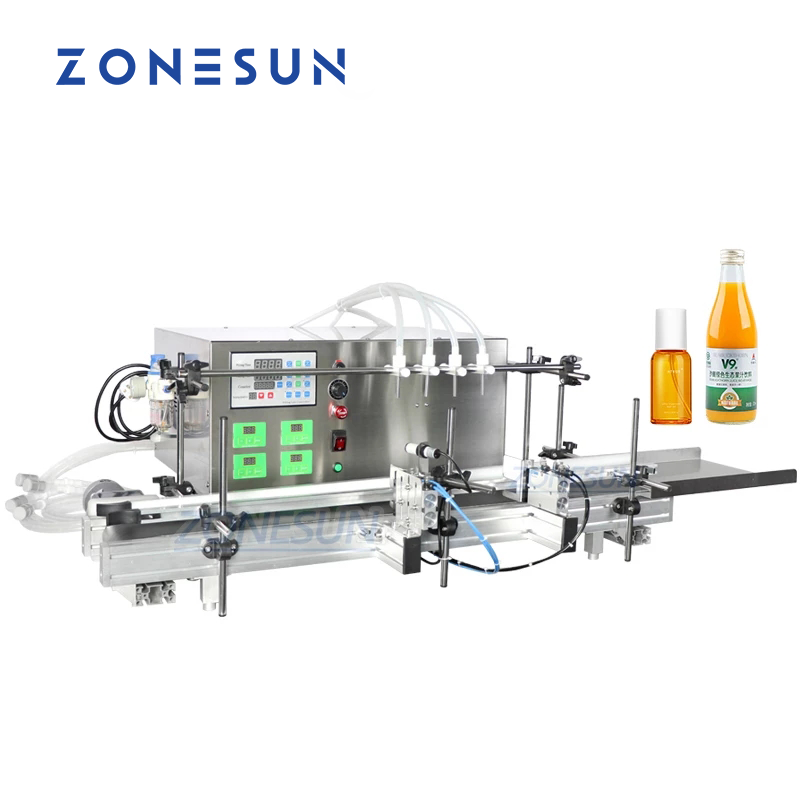

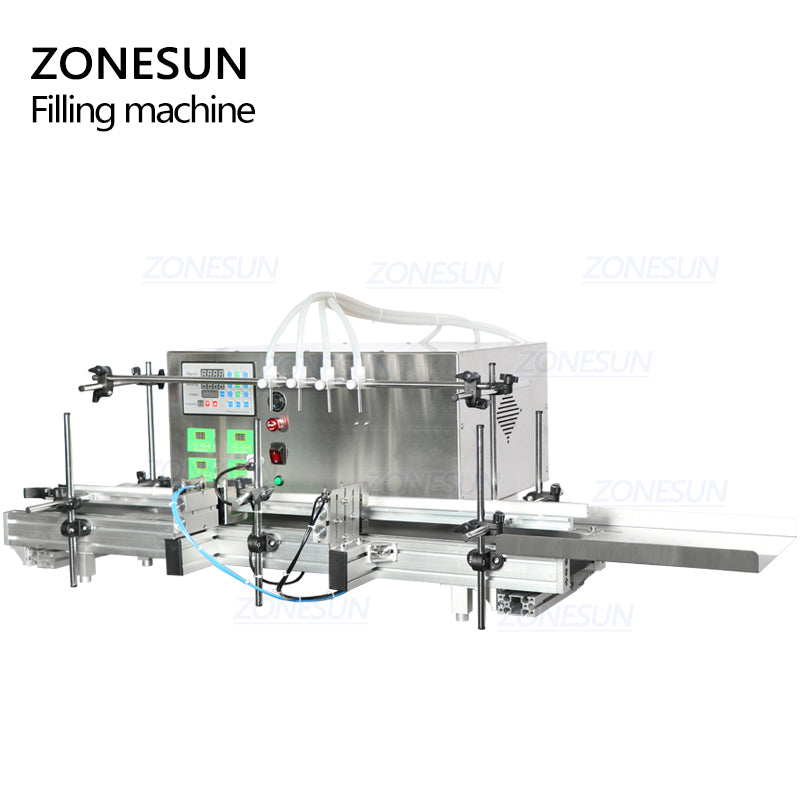

ZONESUN ZS-DTPP4F Desktop 4 Nozzles Automatic Peristaltic Pump Liquid Filling Machine

ZONESUN ZS-DTPP4F Desktop 4 Nozzles Automatic Peristaltic Pump Liquid Filling Machine

Regular price $2,899.00 USD
Regular price Sale price $2,899.00 USD
Sale Sold out
Shipping calculated at checkout.
Plug

Feature

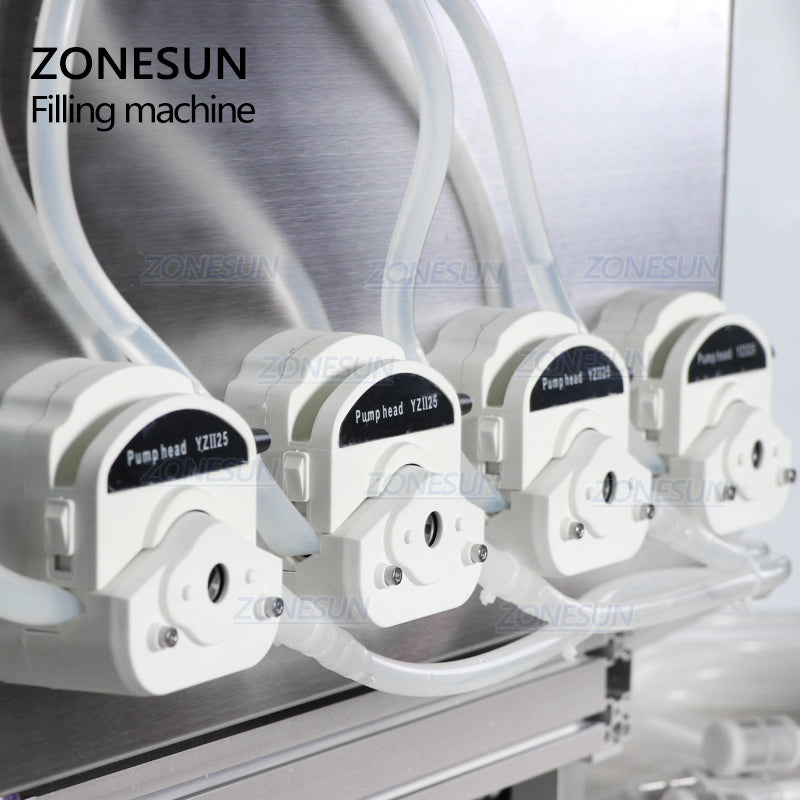

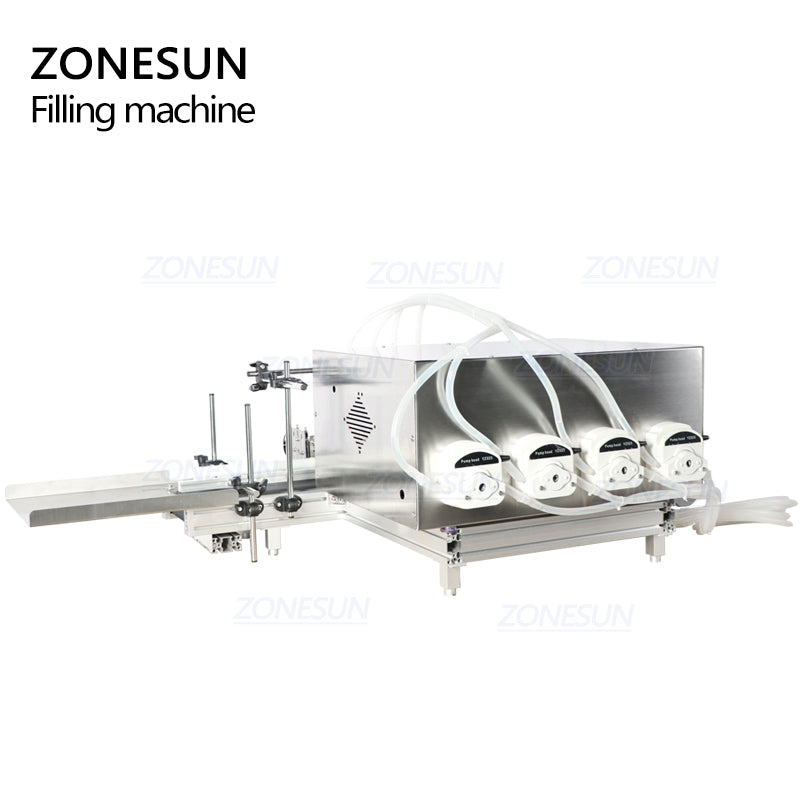

1.Equipped with peristaltic pumps, the liquid won't pass through the pumps, ensuring its quality.

2.The filling speed of four nozzles can be controlled separately. Easy to operate.

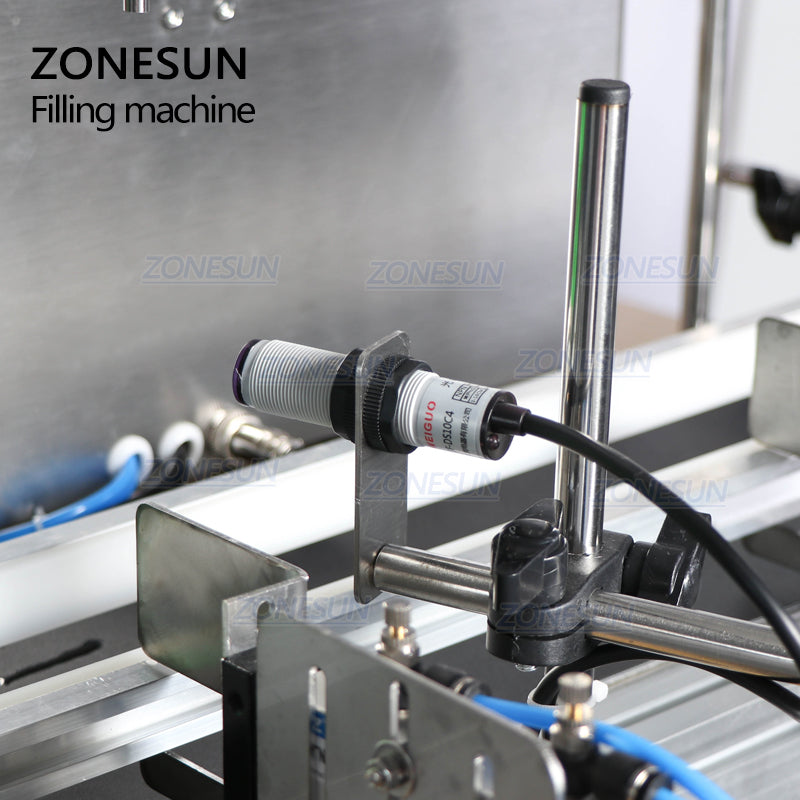

3.With electric eye, it can detect bottles accurately and control the machine to work, intelligent and efficient.

4.With high-quality conveyor belt, it can transport bottles stably, improving work efficiency.

5.It is in small size and can work automatically, saving labor cost.

6.This machine can work with desktop capping machine and labeling machine, realizing automated production.

Parameter

Machine model

ZS-DTPP4F

Filling nozzle

4

Voltage

AC110V/220V 50Hz-60Hz

Power

60W(Each Pump)

Recommended filling volume

110V 10-500ml 220V 10-1000ml

Maximum flow

4000ml/min for each nozzle (based on water )

Filling nozzles

4(we can customize the nozzles based on your demands)

Working speed

30-50 bottles/min(based on bottles and liquids)

Air pressure

0.3-0.4mpa

Filling accuracy

≤±1%( for water)

Dimension of fling nozzle

standard 8mm and 6mm

Delay range

0.01s - 999.9s

Belt length

1.0 m

Size of air compressor connector

OD8mm

Suitable bottle height

<220mm(Can be customized,max height 300mm)

Machine size

About 650*430*400mm

Machine weight

About 55.5kg

Package size

About 1115*770*440mm

Package weight

About 73kg


Application

This desktop machine is suitable for filling low-viscosity liquid, such as eye drop, essential oil, juice, soy milk, etc. Equipped with peristaltic pumps, the liquid won't pass through the pump, ensuring its cleanliness. The machine can be widely used in cosmetic, beverage, medicine industries.
