ZONESUN ZS-GP261W 150-18000ml Semi-automatic Gear Pump Liquid Weighing Filling Machine
ZONESUN ZS-GP261W 150-18000ml Semi-automatic Gear Pump Liquid Weighing Filling Machine
Couldn't load pickup availability
Parameter
|
Machine Model |
ZS-GP261W |
|
Machine Power |
220V/110V 550W |
|
Machine Pump |
Gear Pump |
|
Max Flow Rate |
18L/min |
|
Filling Range |
150mL-18L |
|
Weighing Range |
150g-100kg |
|
Repetitive Error |
≤±10g |
|

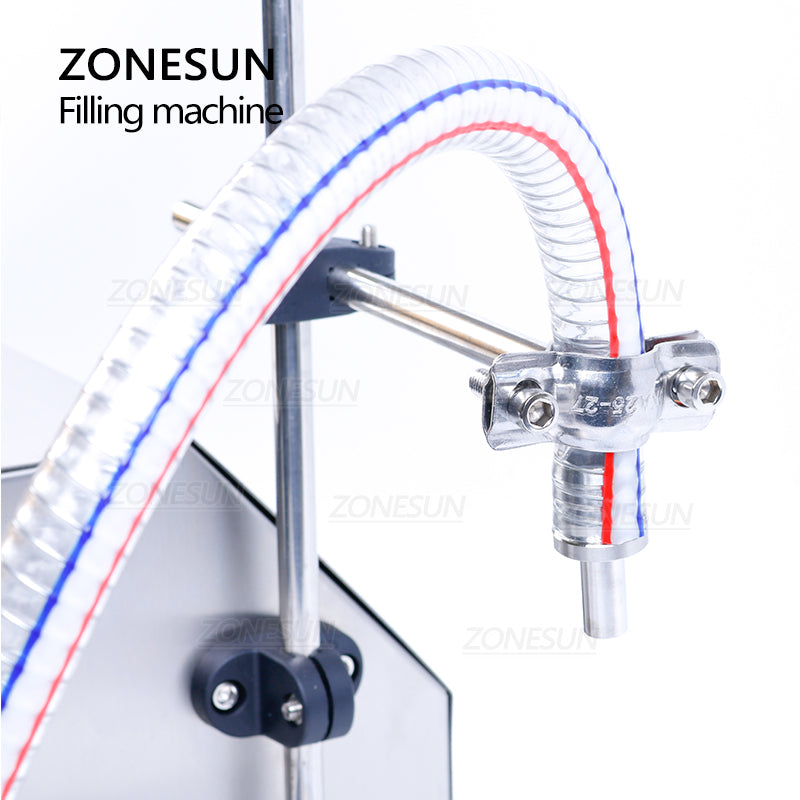

Filling Nozzle Diameter |
Φ12mm&Φ19mm |
|
Hose Diameter |
19mm(ID)/25mm(OD) |
|
Hose Length |
3m(inlet)/1m(outlet) |
|
Max Suction Distance |
4m |
|
Suitable Liquid Temperature |
＜90℃ |
|
Memory Function without Electricity |
Available |
|

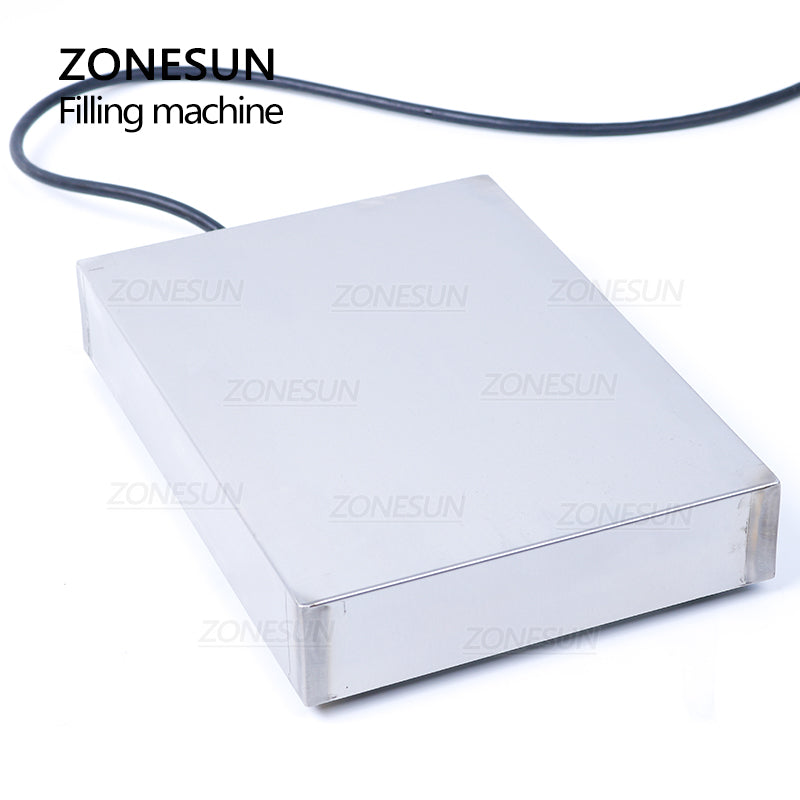

Weighing Device Size |
250mm*180mm*42mm |
|
Machine Weight |
14.5kg |
|
Machine Size |
350mm*343mm*250mm(L*W*H) |
|
Package Weight |
16kg |
|
Package Size |
500mm*410mm*320mm (machine) 400mm*370mm*200mm(weighing device) |
Description

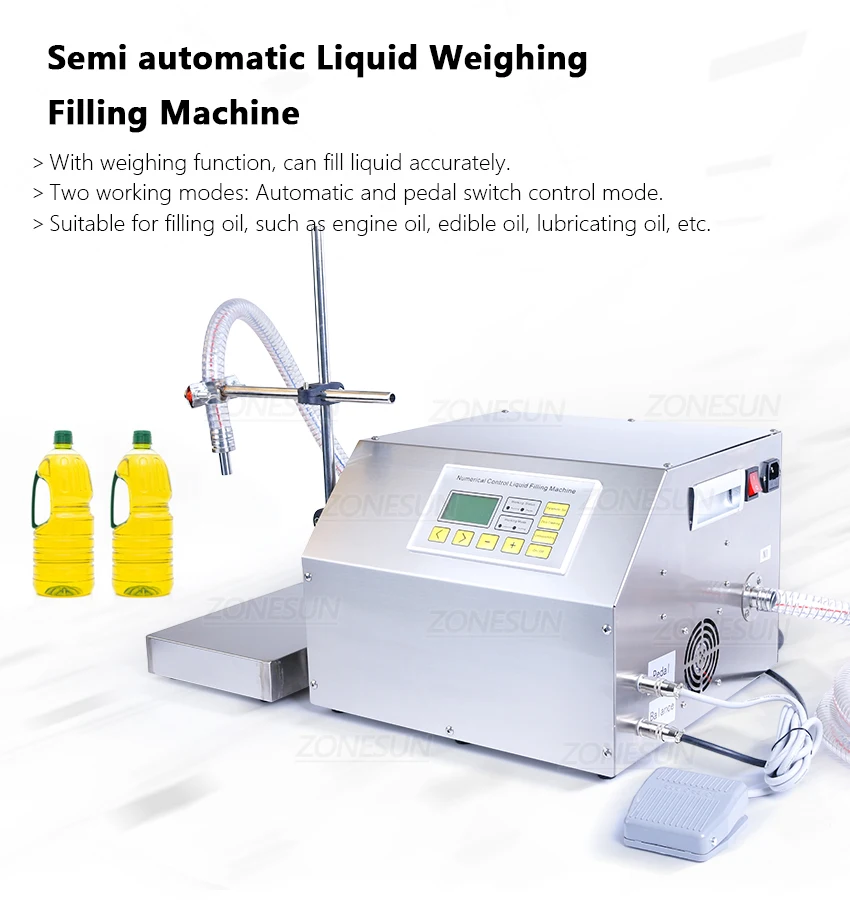

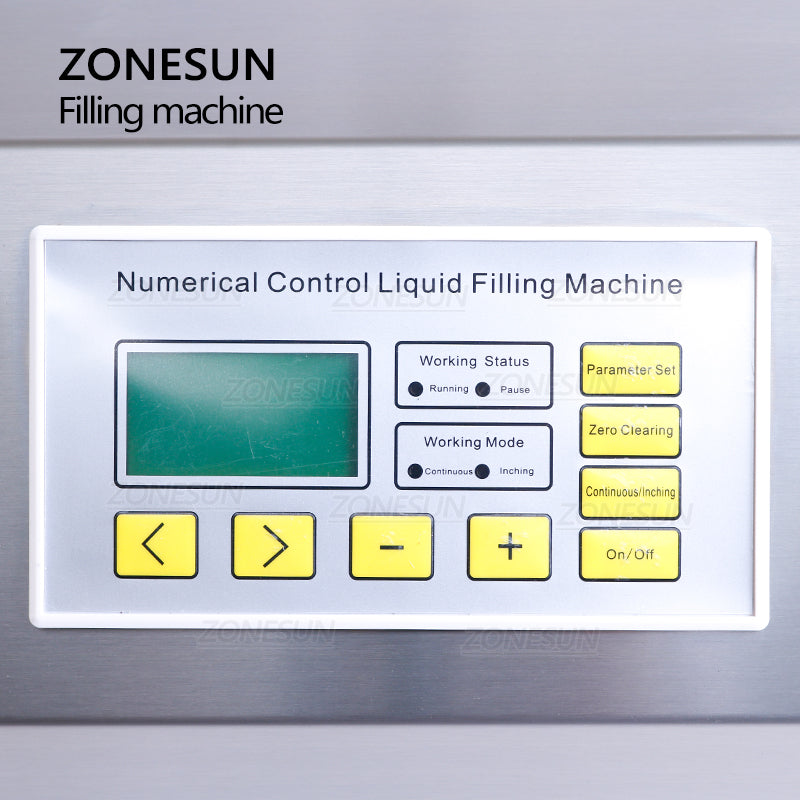

This gear pump filling machine is suitable for oil, like edible oil, engine oil, hydraulic oil, etc. With weighing funtion, it can fill oil accurately. Operator just needs to set filling weight on the panel, which is easy to operate. It can fill 18L/min, improving work efficiency. The machine can be widely used in catering, cosmetic, chemical industries.
