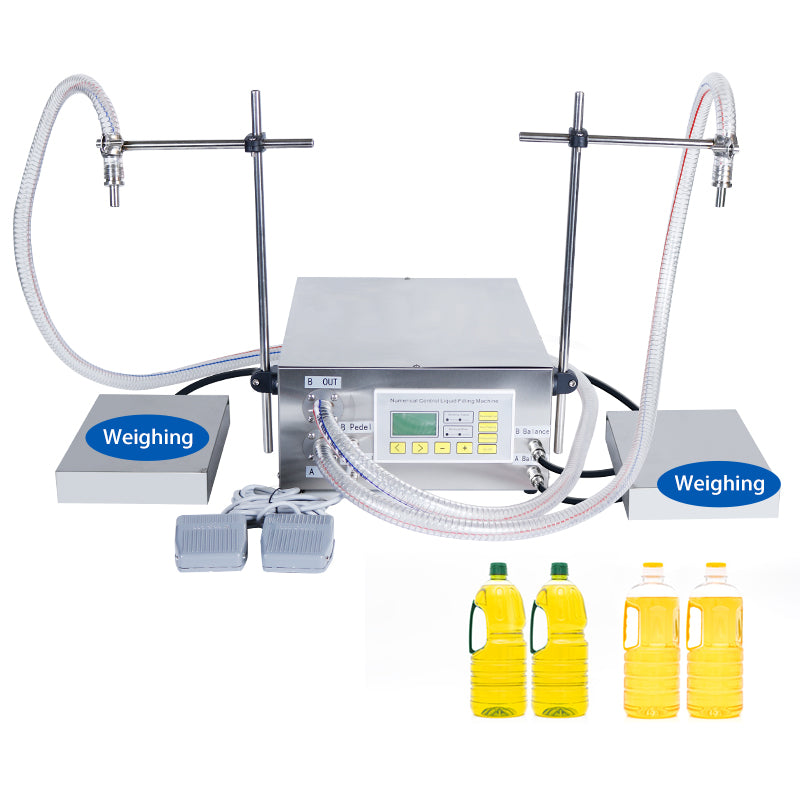

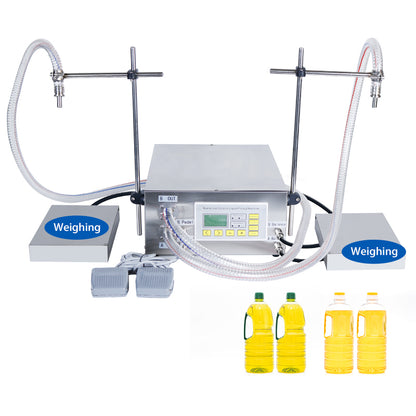

ZONESUN ZS-GP632 50-8000ml 2 Nozzles Gear Pump Liquid Weighing Filling Machine
ZONESUN ZS-GP632 50-8000ml 2 Nozzles Gear Pump Liquid Weighing Filling Machine
Couldn't load pickup availability
Parameter
|
Machine Model |
ZS-GP632 |
|
Machine Power |
220V/110V 50-60Hz 420W |
|
Machine Pump |
Gear Pump |
|
Max Flow Rate |
8L/min *2 |
|
Weighing Range |
50g-100kg |
|
Filling Range |
50mL-8L |
|
Filling Head Diameter |
Φ12mm&Φ19mm |
|
Hose Diameter |
19mm(ID)/25mm(OD) |
|
Hose Length |
2.2m(inlet)/1.6m(outlet) |
|
Repetitive Error |
±10g |
|
Memory Function without Electricity |
Available |
|
Weighing Device Size |
250*180*42mm |
|
Machine Size |
335mm*450mm*170mm (L*W*H) |
|
Machine Weight |
16kg |
|
Package Weight |
18.5kg |
|
Package Size |
560mm*400mm*280mm(machine) 300mm*290mm*160mm(weighing device) |
Description
This gear pump weighing filling machine is suitable for filling oil, like edible oil, engine oil, lubricating oil. It has inching working mode and automatic working mode, easy to operate. With weighing device, it can fill oil more accurately. It can be widely used in food, daily chemical, cosmetic industries.
