ZONESUN ZS-YT4T-4D 2/4/6 Diving Nozzles Liquid Filling Machine Water Filler
ZONESUN ZS-YT4T-4D 2/4/6 Diving Nozzles Liquid Filling Machine Water Filler
Couldn't load pickup availability
Feature

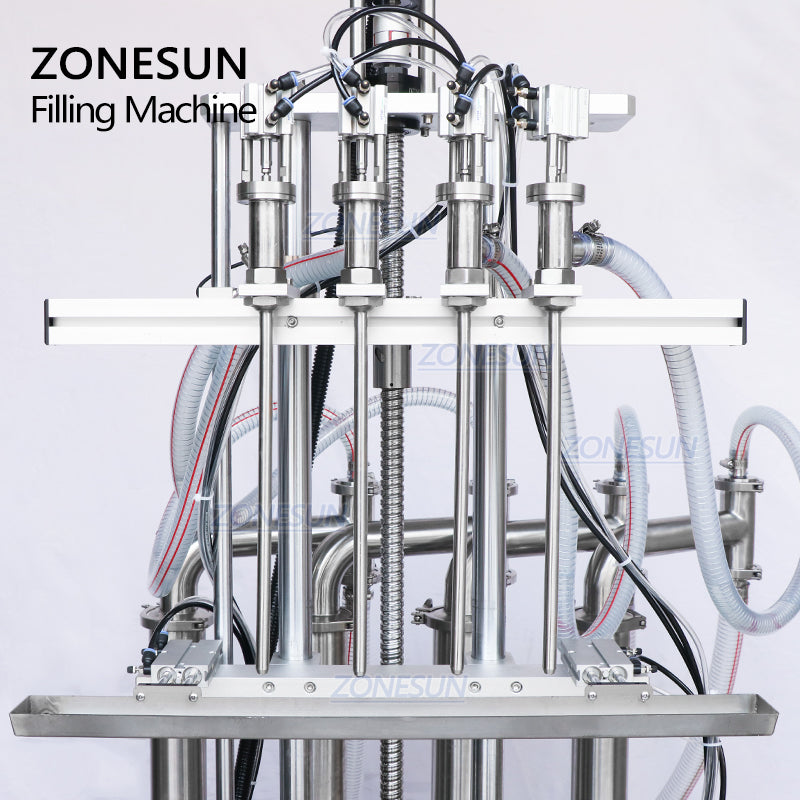

1.With diving heads, the machine can be used for foamy liquid.
2.The four nozzles can be controlled separately. Easy to operate.

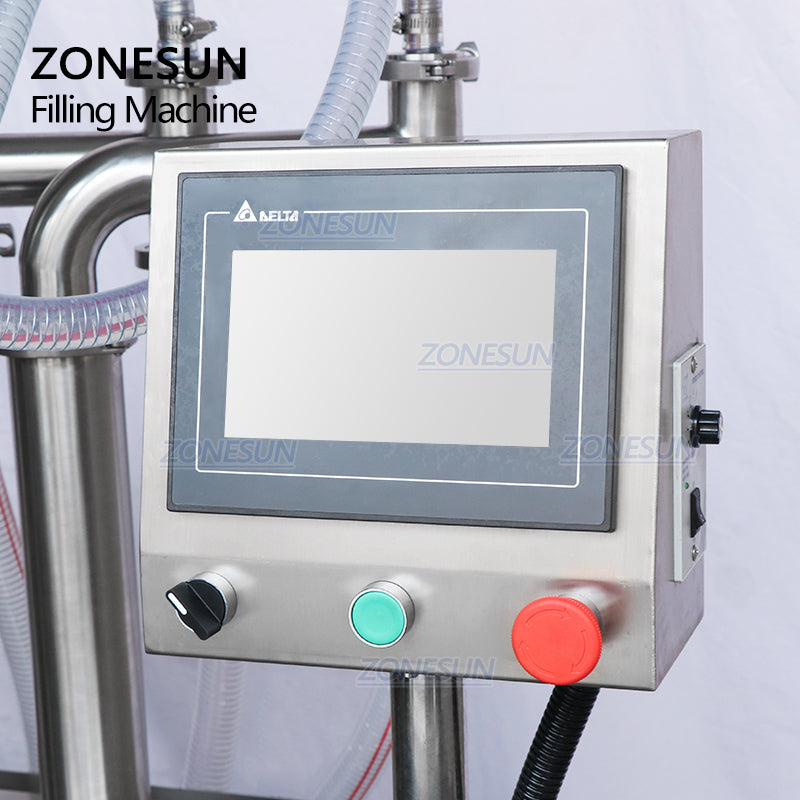

3.With PLC control panel, it is easy to set working parameters like filling speed.
4.With chain conveyor belt, it can transport containers smoothly and stably. Improve work efficiency.
5.With high-quality electric eye, it can detect bottles precisely and control the machine to fill liquid. Save labor cost.
6.Made of stainless steel, it is in good design and durable.
Parameter
|
Model |
ZS-YT2T-2D |
ZS-YT4T-4D |
ZS-YT6T-6D |
ZS-YT8T-8D |
|
Voltage |
110/220V 50-60HZ 600W |
|||
|
Filling Range |
5-100ml/10-300m/50-500ml/100-1000ml/500-3000ml/1000-5000ml |
|||
|
Working Speed(based on water) |
10-30botles/min |
20-35bottles/min |
30-40bottles/min |
35-45bottles/min |
|
Filling Nozzle Type |
Lifting Filling Nozzle(Suitable for foamy liquid) |
|||
|
Filling Accuracy |
≤士1% |
|||
|
Air Pressure |
0.5-0.7MPa |
|||
|
Conveyor length |
2050mm(standard) |
|||
|
Conveyor material |
Plastic (standard)/stainless steel (custom version) |
|||
|
Size of air compressor connector |
OD 10mm |
|||
|
Machine weight |
220kgs |
262kgs |
300kgs |
500kgs |
|
Dimension |
210x86x146cm |
202*102*205cm |
320x86x146cm |
250x110x160cm |
Application
This machine can be used for foamy liquid or normal liquid like juice, shampoo, mineral water, etc. It can work with automatic capping machine and labeling machine, realizing automated production. The machine can be widely used in pharmaceutical, beverage, daily chemical industries.
Attention
This machine will be shipped by sea. If you want a faster shipping, please contact us. Thank you!
