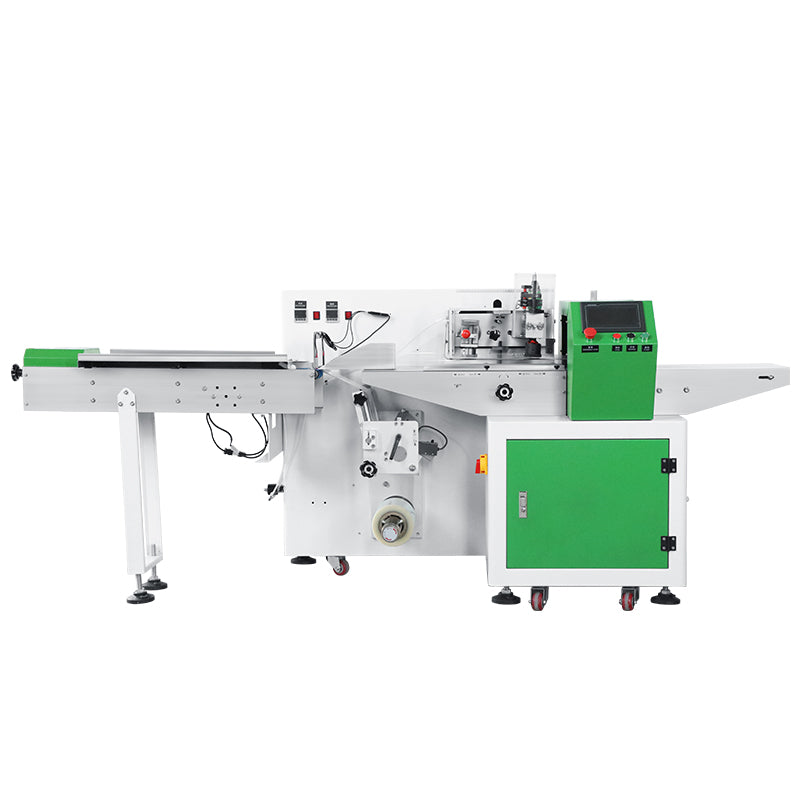

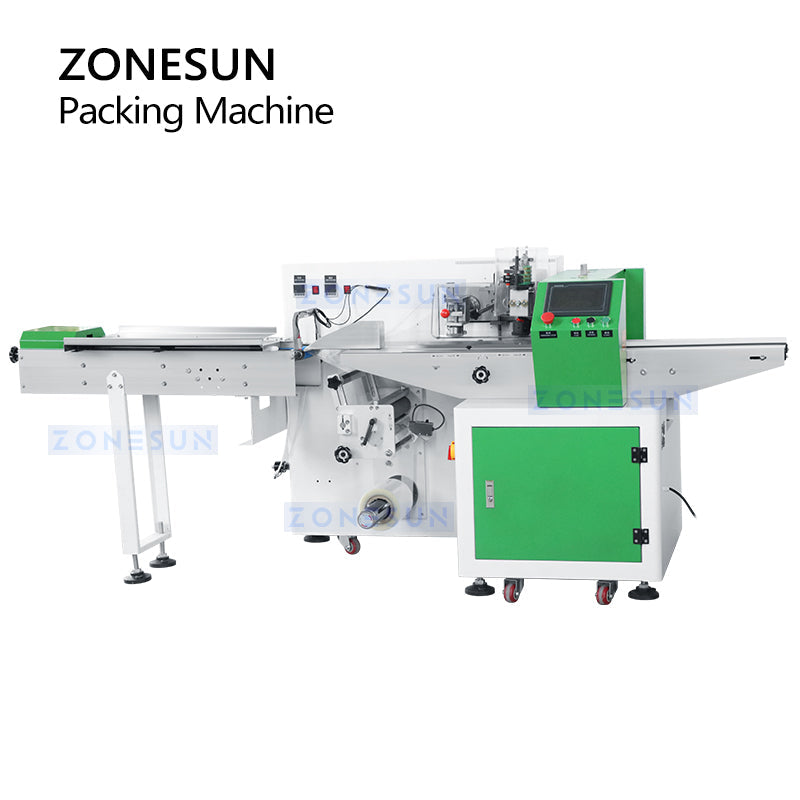

ZONESUN ZS-ZB350X Horizontal Flow Wrapping Machine
ZONESUN ZS-ZB350X Horizontal Flow Wrapping Machine
Couldn't load pickup availability
DESCRIPTION
This is a horizontal flow wrapper. It performs three tasks in one fluid, and continuous motion, including infeed and spacing of items, wrapping the film around the items, and then sealing and discharging the finished products. It is widely used in the product packaging industry.
PARAMETER
|
Type |
ZS-ZB350X |
|
Power |
110/220/380V,50/60Hz,2.4KW |
|
Film width |
1.Max:350mm (Customizable) |
|
Bag length |
90-6000mm (Customizable) |
|
Bag width |
30-160mm (Customizable) |
|
Product height |
Max:55mm (Customizable) |
|
Film roll diameter |
Max:320mm |
|
Middle side sealing |
Top side sealing |
|
Packaging rate |
30-120bag/min |
|
Packaging materials |
OPP, OPP/CPP, KOP/CPP, Alu-film, bubble wrap |
|
Machine size |
Approx. 3836*890*1079mm |
|
Machine weight |
Approx. 350Kg |
|
Packing Size |
Approx. 1600*1020*1250mm (Machine) 1590*210*510mm (Conveyor) |
|
Package Weight |
Approx. 378kg (Machine) 36kg (Conveyor) |
PRODUCT DETAILS
CONTROL PANEL
PLC, touchscreen, user-friendly HMI, separate thermometer for sealing.
FILM FEEDING
Automatically feed the film and measure the length.
The max width of the film roll for this model is 350mm. Contact us for other options.
SENSING
Photoelectric eye, smart detecting
With servo controls, it can automatically measure the bagging length.
SEALING
The sealing pattern for this model is back line sealing only. It is applicable to many materials, such as OPP, OPP/CPP, KOP/CPP, Alu-film, and bubble wrap.
