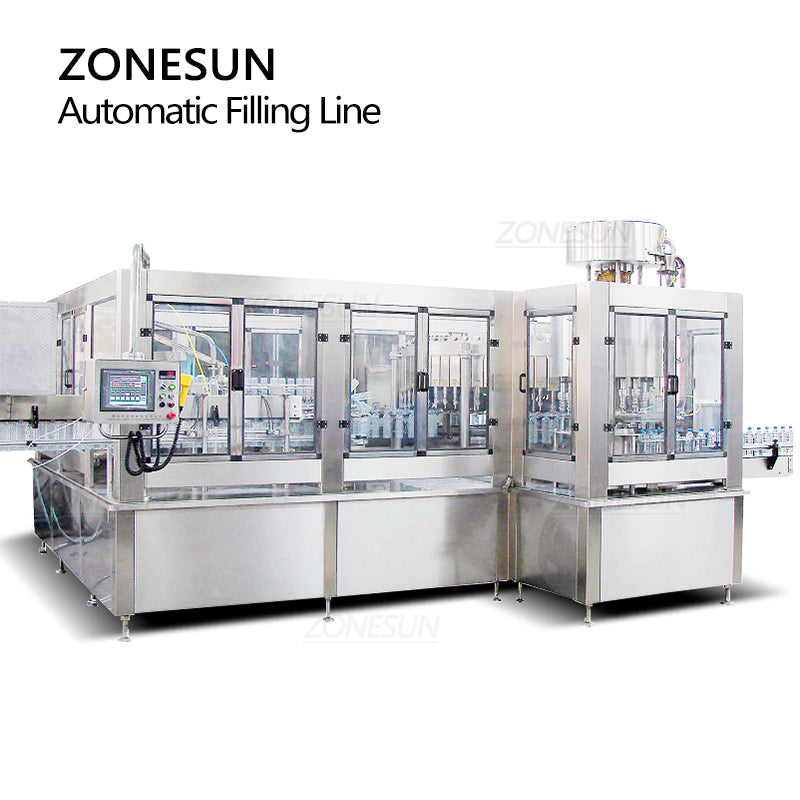

ZONESUN ZS-AFM Autoamtic PET Bottled Drinking Water Filling Machine
ZONESUN ZS-AFM Autoamtic PET Bottled Drinking Water Filling Machine
Couldn't load pickup availability
DESCRIPTION
The all-in-one filling machine is used to fill water or drinks into plastic or glass bottles. Washing, filling, and sealing can be carried out on the same machine. The design of the machine is scientific and reasonable.
PARAMETERS
|
Model |
ZS-AFM 14-12-5 |
|
Output Capacity |
5000BPH on 500ml PET Bottle |
|
Rinsing/Filling / Capping heads Quantity |
14 pcs/12 pcs/5 pcs |
|
PET bottle size |
Bottle Diameter Φ50~495mm Bottle Highness:160~310mm, Bottle neck: 28mm, for Bottle Volume 250-2000ml |
|
Suitable to fill |
Water & Non-carbonated drink |
|
Washing Water Required |
1500 liter per hour |
|
Washing Pressure |
0.25Mpa |
|
Required |
380V AC60HZ 3-phase, (other power supply is available) |
|
Working Power |
24V DC |
|
Control Panel Power |
0.7MPa |
|
Compressed Air Pressure (for caps arranger) |
0.6m3/min |
|
Compressed Air Consumption (for caps arranger) |
2360*1770*2700 |
|
Machine Dimension |
3500kg approximately |
|
Model |
Capacity/500ml |
Bottle size |
Weight (KG) |
Dimensions (mm) |
|
ZS-AFM 8-8-3 |
1000-3000bph |
200-1500ml |
2500 |
2300*1550*2500 |
|
ZS-AFM 14-12-5 |
3500-4500bph |
200-2000ml |
3500 |
2516*2016*2700 |
|
ZS-AFM 16-16-5 |
7000-8000bph |
200-2000ml |
5500 |
3000*2200*2800 |
|
ZS-AFM 24-24-8 |
10000-14000bph |
200-2000ml |
8000 |
4150*2600*2900 |
|
ZS-AFM 32-32-8 |
15000-18000bph |
200-2000ml |
10000 |
4550*2750*2900 |
|
ZS-AFM 40-40-10 |
18000-24000bph |
200-2000ml |
12000 |
5450*3300*2900 |
