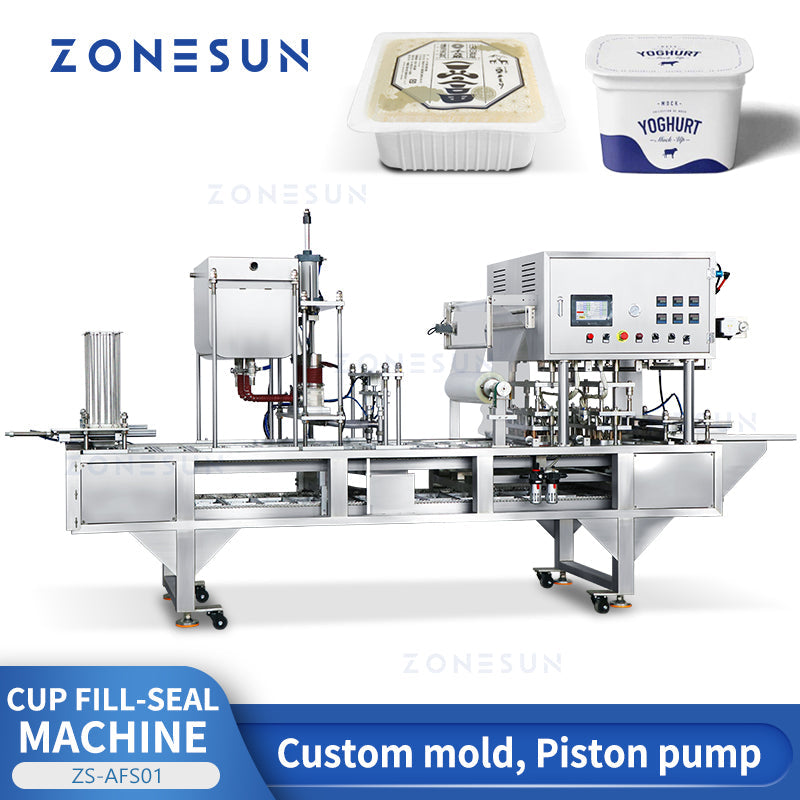

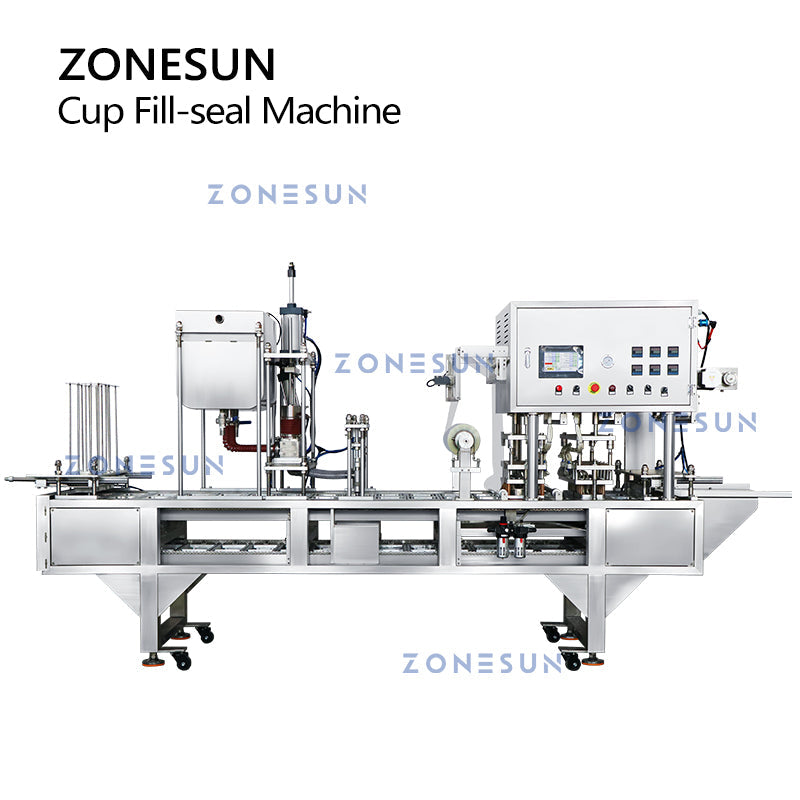

ZONESUN ZS-AFS01 Automatic 2 Nozzles Piston Pump Liquid Heating Filling Cup Sealing Machine
ZONESUN ZS-AFS01 Automatic 2 Nozzles Piston Pump Liquid Heating Filling Cup Sealing Machine
Regular price
$11,899.00 USD
Regular price
Sale price
$11,899.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
DESCRIPTION
This is a custom machine for a buyer from America. It is used to fill paraffin wax into cups and seal them. It adopts a mold conveyor to transport the cups and cyclic heating for filling. Whatever your packaging needs are, you can rely on ZONESUN.
PARAMETER
Model |
ZS-AFS01 |
Power |
About 8KW |
Voltage |
380V/50hz |
Filling pump |
Piston Pump |
Filling heads quantity |
2 |
Working speed |
About 10-30pieces/min (Based on liquid and filling volume) |
Air consumption |
0.7 m³/min |
Machine size |
About 3600*968*1595mm |
Packing size |
About 3800*970*2020mm |
Package weight |
About 1000kg |
PRODUCT DETAILS
CONTROL PANEL
PLC controls, color display touchscreen.
Barometer and thermostats, all-in-one.
Easy learning and user-friendly.

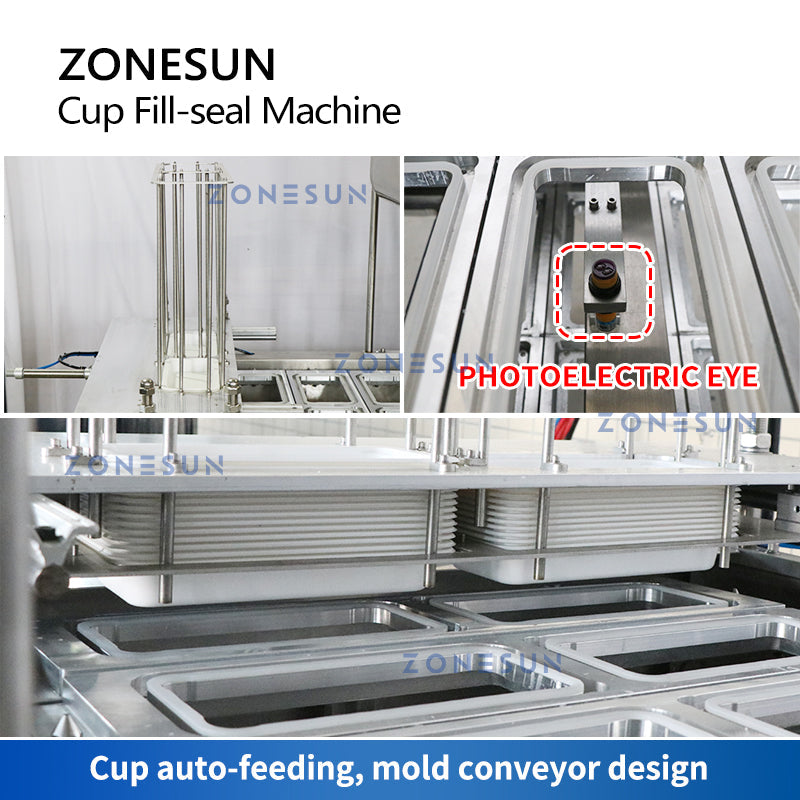

CUP FEEDING
Custom holder, mold conveyor design.
Smart detecting, auto feeding.

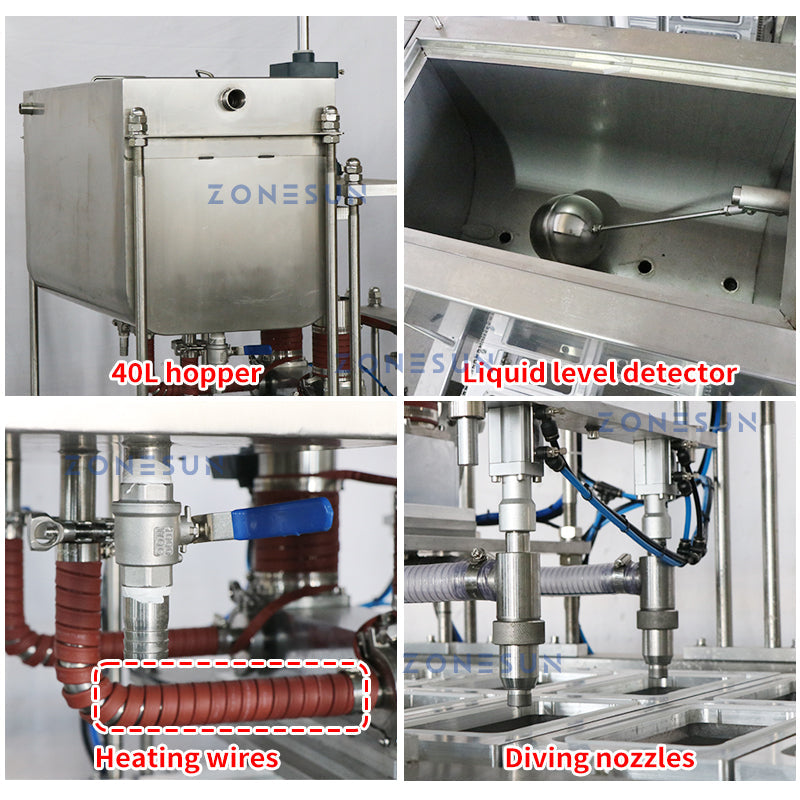

FILLING
Large hopper of 40L, interlayer heating, with a liquid level detector.
Heating wires, piston pump, diving nozzles.

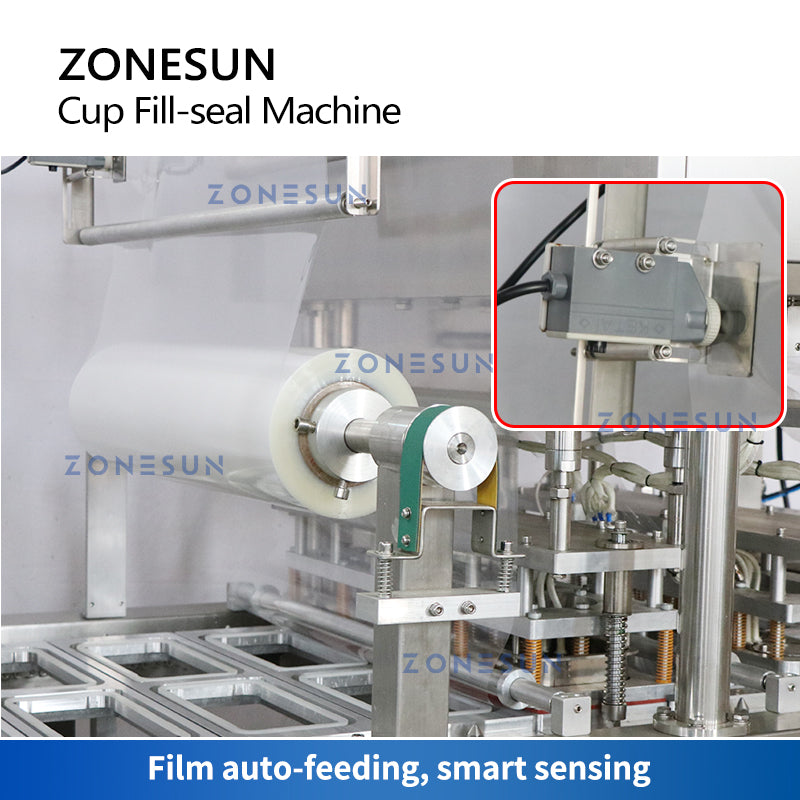

FILM FEEDING
Auto-feeding, smart sensor, no waste of the film.
SEALING
Heat sealing and cutting, customizable for cups of different sizes.
Auto-erecting the finished products, labor-saving.
