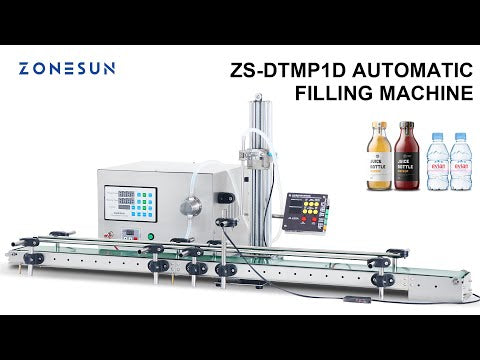

ZONESUN ZS-DTMP1D Single Diving Nozzle Magnetic Pump Liquid Filling Machine With Conveyor
ZONESUN ZS-DTMP1D Single Diving Nozzle Magnetic Pump Liquid Filling Machine With Conveyor
Couldn't load pickup availability
DESCRIPTION

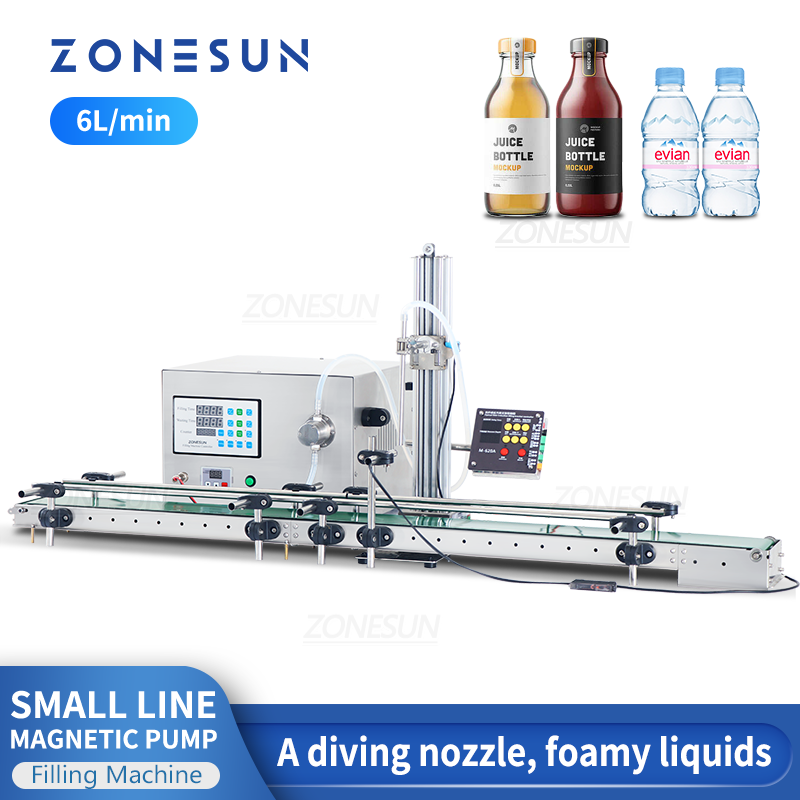

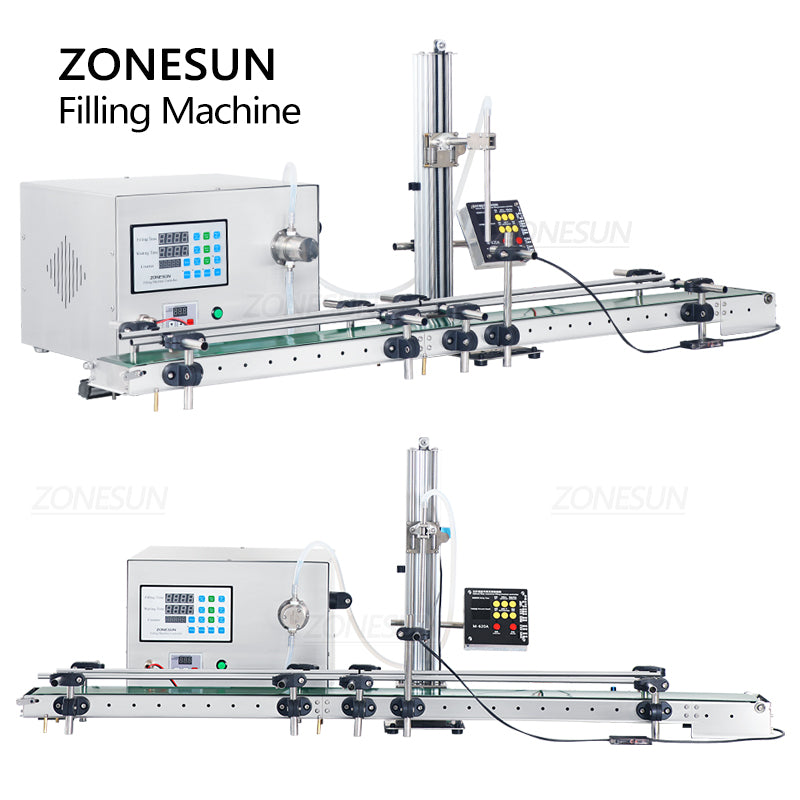

This is a small line composed of a filler and a conveyor. It is equipped with a 316 magnetic pump and is suitable for filling corrosive liquids like insecticide solutions. The magnetic pump has the advantage of high accuracy, which is ideal for filling small volume products like perfume, and essential oil. It is widely used in beverage, cosmetics, food, and daily chemical industries.
PARAMETER
|
Model |
ZS-DTMP1D |
|
Voltage |
220V/110V 185W |
|
Pump |
316L Stainless Steel Magnetic Pump |
|
Filling Range |
10-600ml |
|
Max Flow Rate |
6L/min (based on water) |
|
Filling Speed |
About 8-15bottles/min (depend on 110ml water) |
|
Bottle Height |
40mm-210mm |
|
Bottle Body Diameter |
≤80mm |
|
Bottle Opening Diameter |
>15mm |
|
Nozzle Diameter (OD) |
10mm |
|
Conveyor Size |
1200mm*100mm(L*W) |
|
Conveyor Load |
6kg |
|
Machine Weight |
About 13.5kg |
|
Machine Size |
About 350*300*265mm |
PRODUCT DETAILS

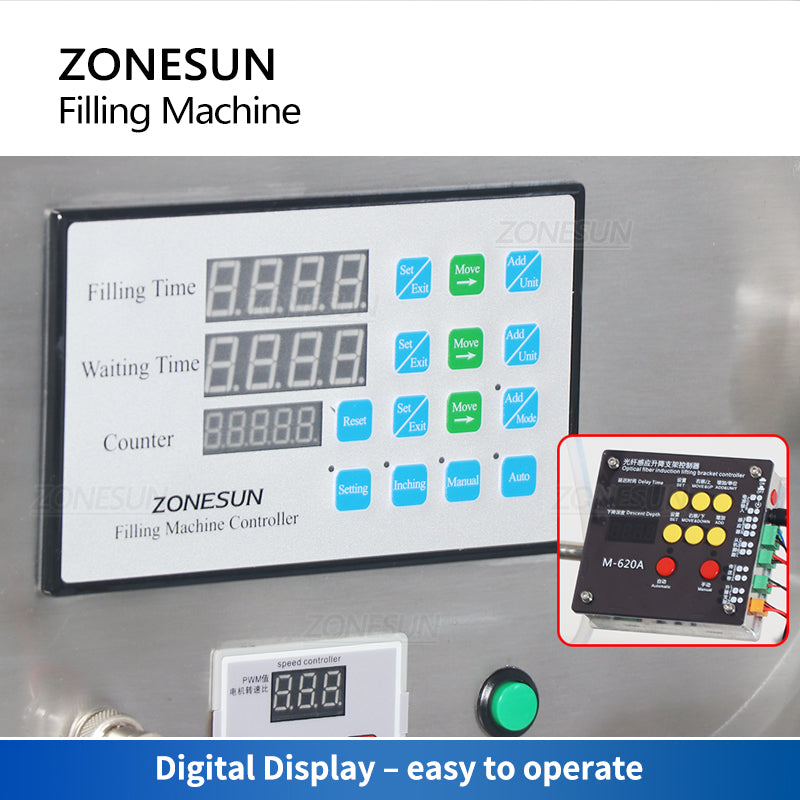

Digital display, easy to set the parameters and operate the machine.

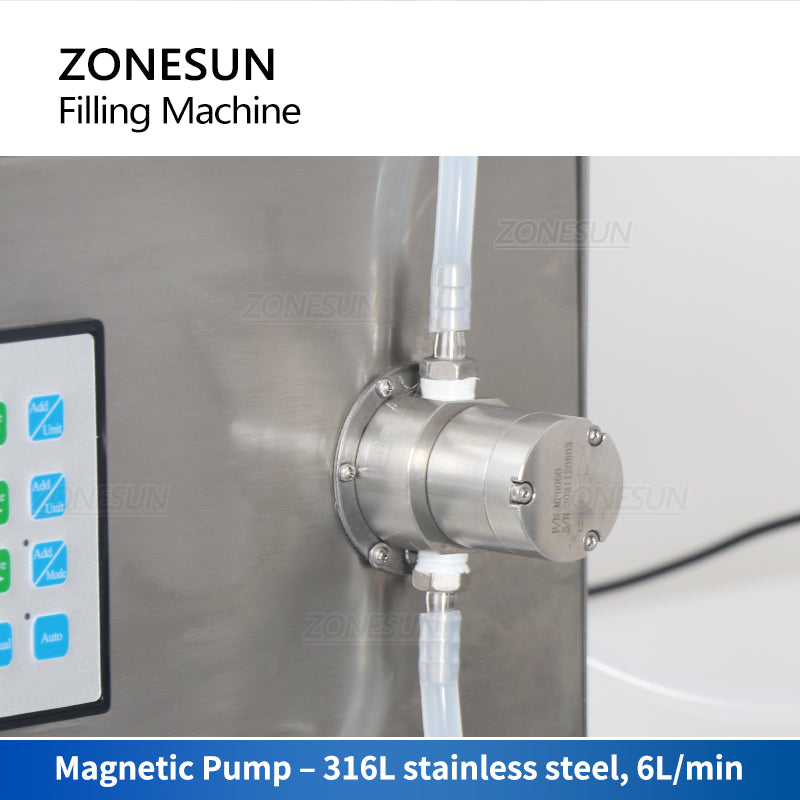

MAGNETIC PUMP
Made of 316L stainless steel, 2≤PH≤12, corrosive thin liquids, 6L/min

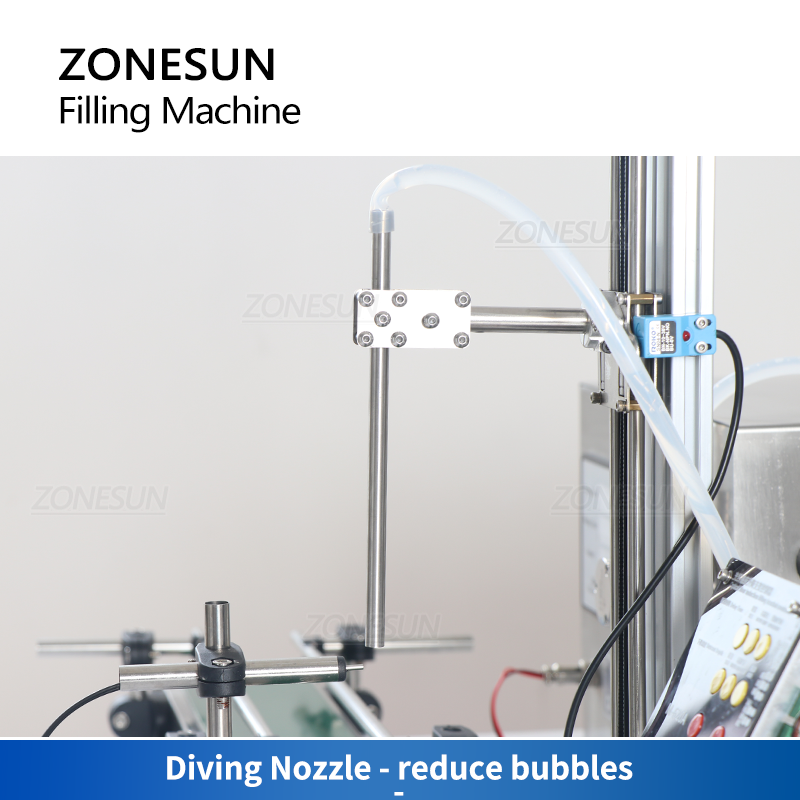

DIVING NOZZLE
This device helps reduce bubbles during filling liquids, which makes it suitable for foamy liquids.
CONVEYOR
1200mm*100mm, Load: 6kg, Adjustable speed.
