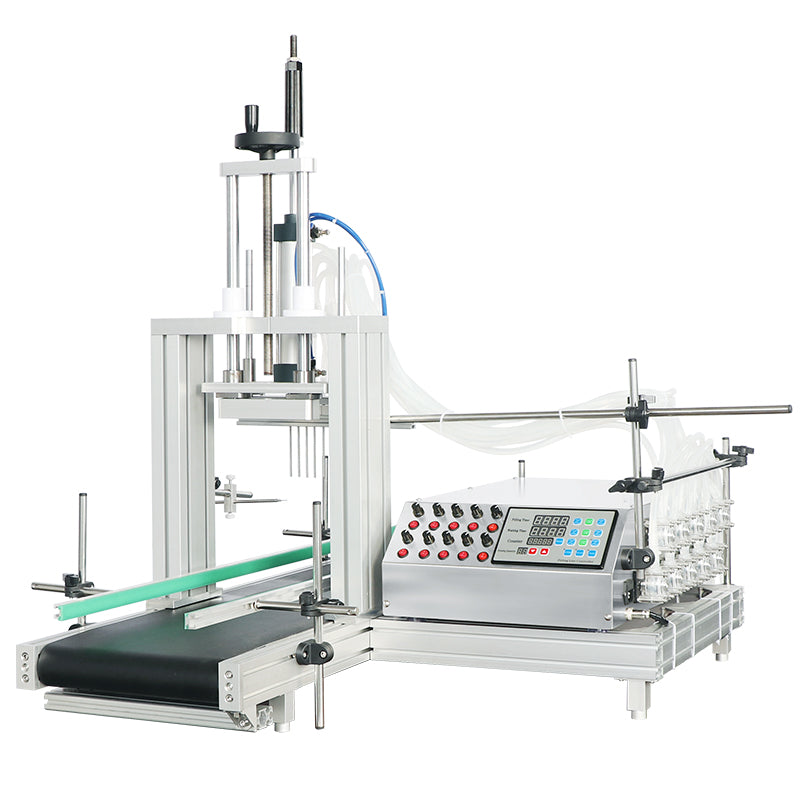

ZONESUN ZS-DTPP10D 10 Diving Nozzles Peristaltic Pump Liquid Filling Machine
ZONESUN ZS-DTPP10D 10 Diving Nozzles Peristaltic Pump Liquid Filling Machine
Couldn't load pickup availability
DESCRIPTION
With a conveyor, the 10-nozzle machine is used for filling liquid in tubes. It adopts peristaltic pumps, which is easy to clean and replace the filling tube. Also, the liquid won't be contaminated. This machine is widely used in pharmaceutical, medical, chemical and cosmetics industries.
APPLICATION
This machine is suitable for filling liquid such as reagent, e-liquid, e-juice, chemical/biological agents, etc.
PARAMETER
|
Machine Model |
ZS-DTPP10D |
|
Power Supply |
AC110V/220V |
|
Machine Pump |
Peristaltic Pump |
|
Filling Range |
≤50ml |
|
Maximum Flow |
650ml/min for each nozzle (based on water) |
|
Filling Heads |
10 (we can customize nozzles based on your demands) |
|
Working Speed |
About 70-90 bottles/min(based on 50ml-water) |
|
Filling Accuracy |
≤±1% (For water) |
|
Diameter of Filling Head |
4mm |
|
Delay Range |
0.01-999.9s |
|
Conveyor Size |
1080*350mm(L*W) |
|
Machine Size |
About 380*490*300mm(Without conveyor belt) |
|
Net Weight |
About 38kg |
|
Package Size |
About |
|
Package Weight |
About 56kg |
