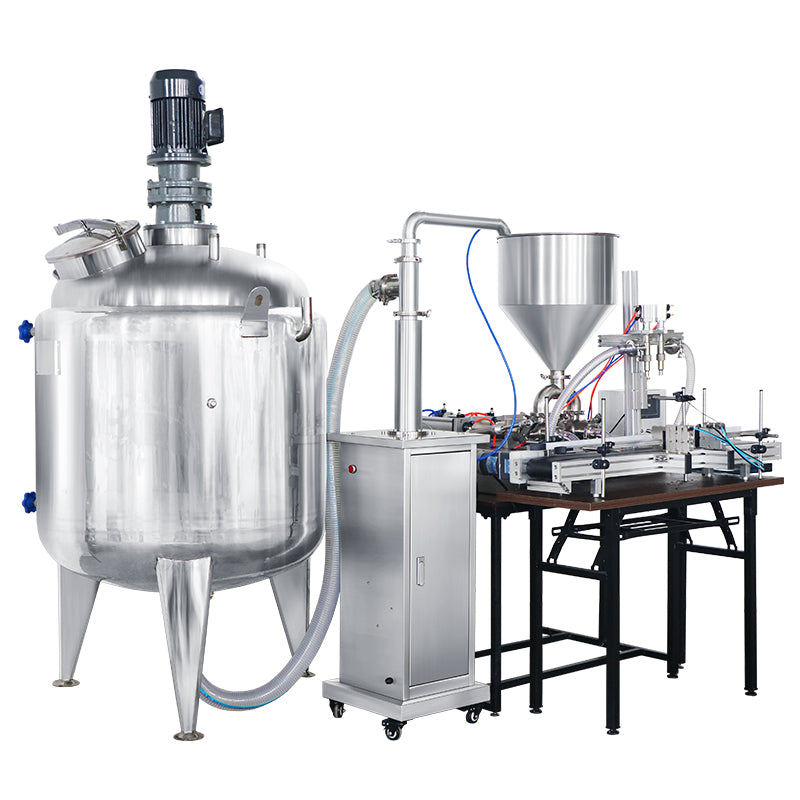

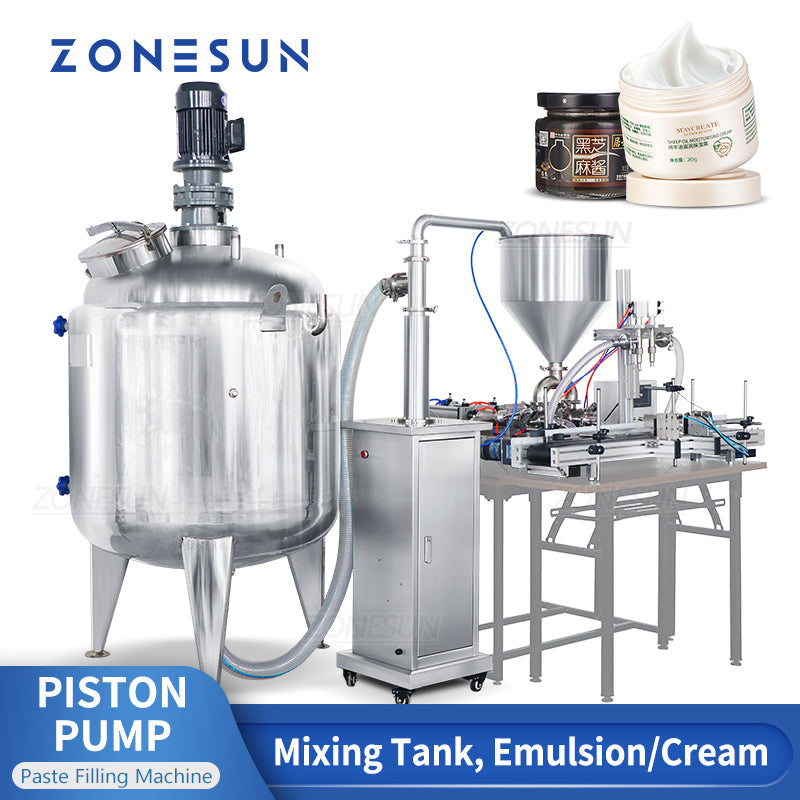

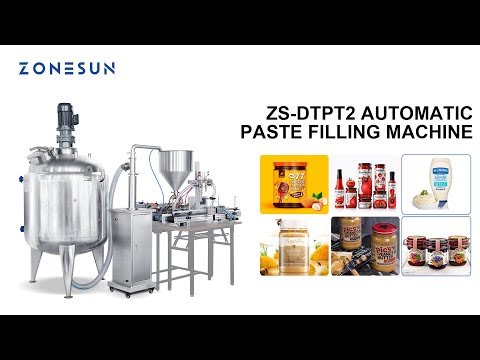

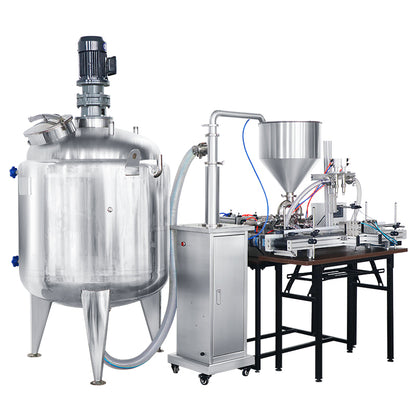

ZONESUN ZS-DTPT2 Automatic Pneumatic Piston Pump Paste Filling Machine with Mixing Tank & Feeding Pump
ZONESUN ZS-DTPT2 Automatic Pneumatic Piston Pump Paste Filling Machine with Mixing Tank & Feeding Pump
Couldn't load pickup availability
DESCRIPTION

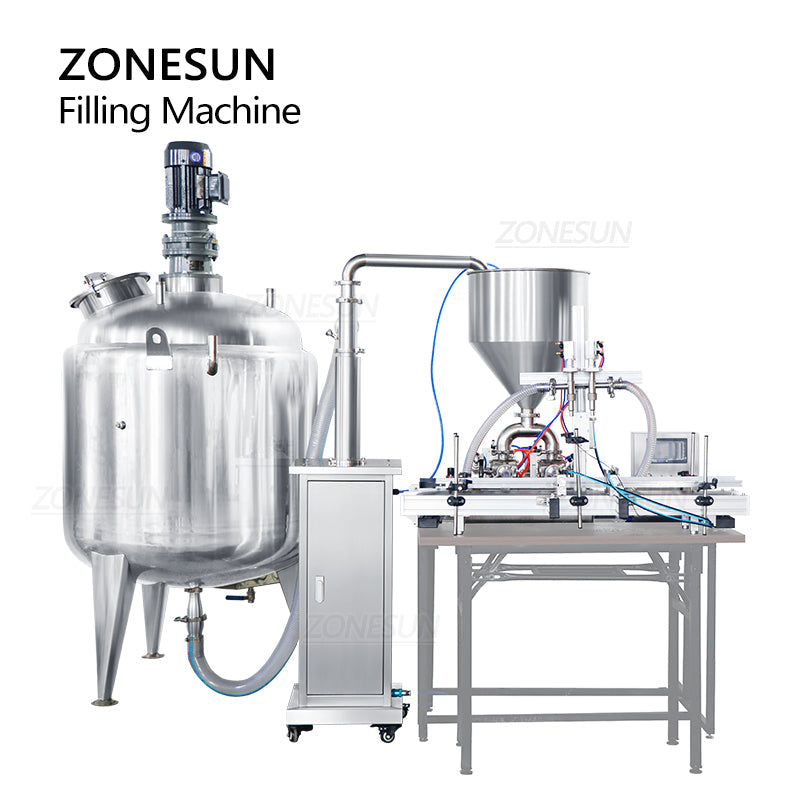

This filling machine is equipped with a mixing tank. It can emulsify liquids. The filler adopts piston pumps, which is powerful for filling paste. It is widely used in the cosmetics and daily chemical industry.
PARAMETER
MIXING & HEATING TANK |
||
Machine Model |
ZS-MB400LH |
|
Voltage |
220V 50-60Hz |
|
Tan Capacity |
400L(Can be customized) |
|
Tank Size |
Diameter: 800mm, H: 1000mm |
|
Stirring Motor |
1.1kW |
|
Rotating Speed |
40r/min |
|
Heating Power |
12kW |
|
Machine Material |
304 Stainless Steel |
|
Package Size |
About 1300*1100*2160mm |
|
Gross Weight |
About 403kg |
|
FEEDING PUMP |
||
Machine Model |
ZS-FP1 |
|
Contact Part |
SUS304&PVC pipe |
|
Pneumatic Part |
AIRTAC |
|
Cover |
SUS304 |
|
Height |
1800mm |
|
Hose Length |
1.5m |
|
Transfer Speed |
1L/time |
|
Machine Size |
About 500*500*1800mm |
|
FILLING MACHINE |
||
Machine Model |
ZS-DTGT2 |
|
Voltage |
220V/110V 50-60Hz |
|
Power |
130W |
|
Filling Range |
10-100/10-200/30-300/50-500/100-1000/50-2500/1000-5000ml |
|
Filling Speed |
About 800-900bottles/h (based on 300ml ketchup) |
|
Applicable Bottle Diameter |
About 53-100mm |
|
Filling Accuracy |
≤±1% |
|
Conveyor Belt Size |
About 1020*140mm(L*W) |
PRODUCT DETAILS

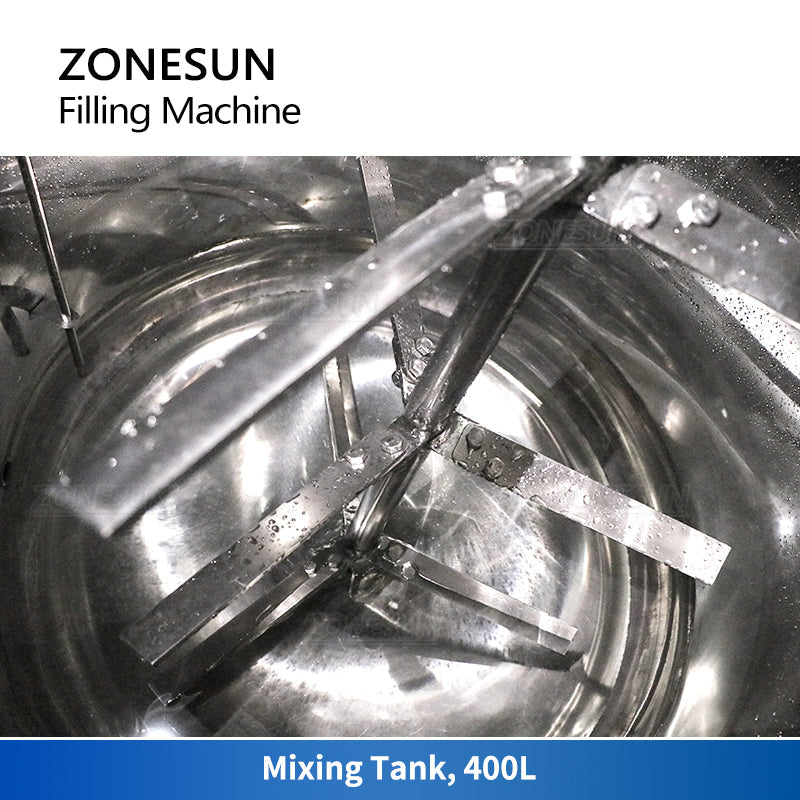

MIXING TANK
400L, customizable paddle, with heating function

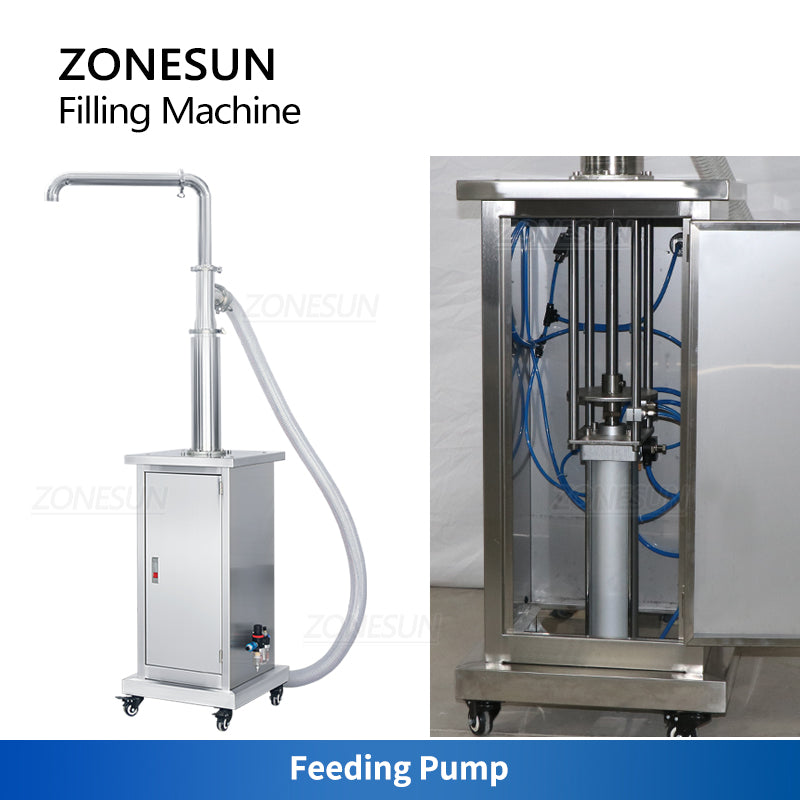

FEEDING
Powerful air cylinder, 1L/time

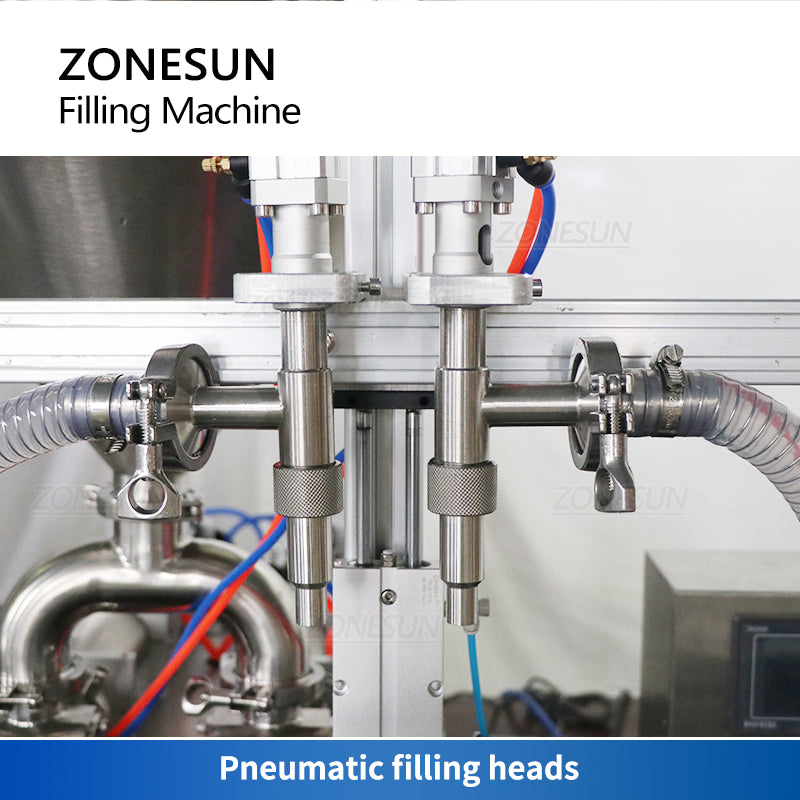

FILLING
Pneumatic filling heads, diving nozzles, fewer bubbles.

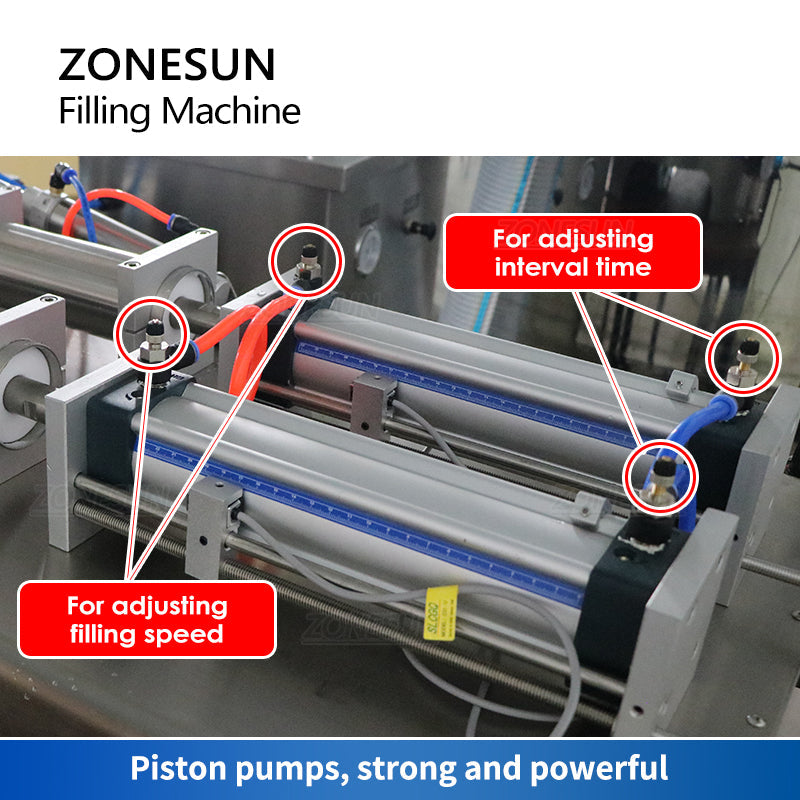

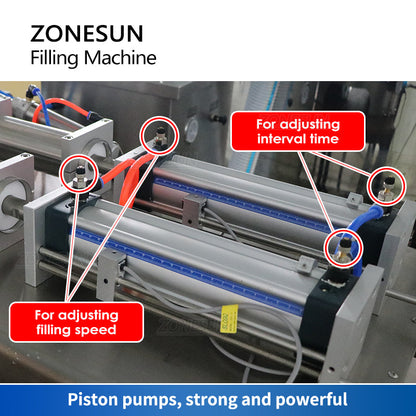

ADJUSTING
Physical adjustable knob, for both filling speed and interval time.
