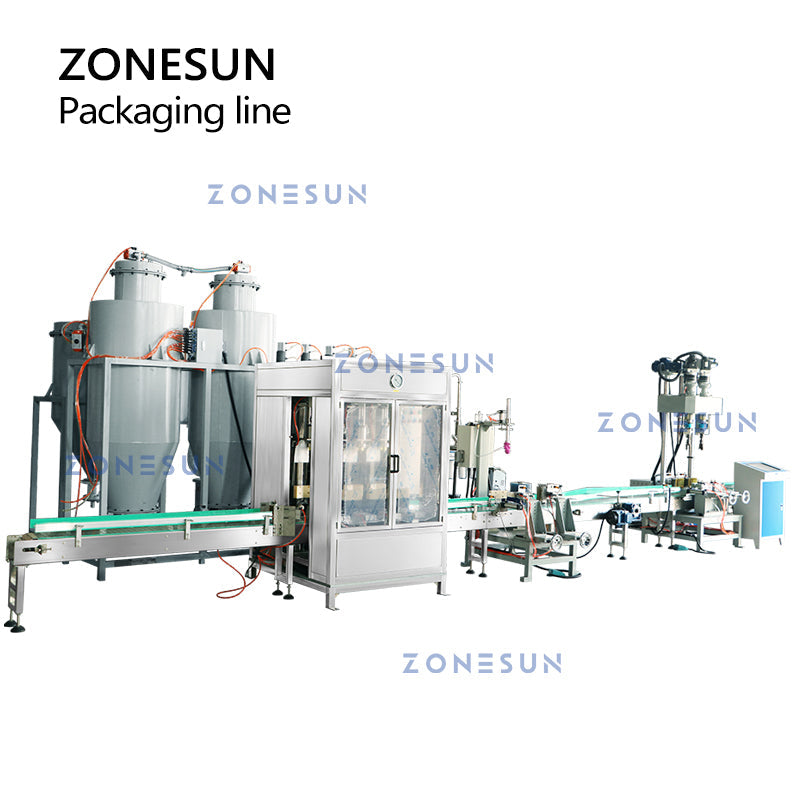

ZONESUN ZS-FE1 Automatic Fire Extinguisher Filling Sealing Labeling Production Line

ZONESUN ZS-FE1 Automatic Fire Extinguisher Filling Sealing Labeling Production Line

Regular price $57,199.00 USD
Regular price Sale price $57,199.00 USD
Sale Sold out
Shipping calculated at checkout.

DESCRIPTION

This is a dry chemical extinguisher packaging line for a buyer from Spain. The process including powder feeding, filling, oil greasing, top placing, body turning, top sealing and label applying. The angle between the handles and the wall hook can be 90 degrees. We offer a complete solution to any production needs.

PARAMETER

Filling Machine

Model

ZS-FM6A

Power

About 4KW

Filling range

6-8kg each head (Customizable)

Quantity of filling head

4

Working speed

About 500 bottles/hour

Machine size

About 1300*1300*2000mm

Sealing Machine

Model

ZS-XG22

Power

About 3.5KW

Quantity of capping head

2

Working speed

About 500 bottles/hour

Machine size

About 900*900*1850mm

Labeling Machine

Capacity

15pcs/min

Applicable Product Size

Custom

Label Size

Custom

Size

215*110*144cm









PRODUCT DETAILS

FILLER



4 heads, 4 stand-alone weighers, PLC controls. Vacuum negative pressure method, weigh-to-fill.





OIL GREASING & TOP PLACING



Automatically grease the opening, manually place the top with a footswitch.





SEALING



Automatically detect the handles, clamp them and screw them to seal. The angle between the handles and the wall hook can be 90 degrees.





LABELING



Custom lower labeler, date coder as an optional extra.
