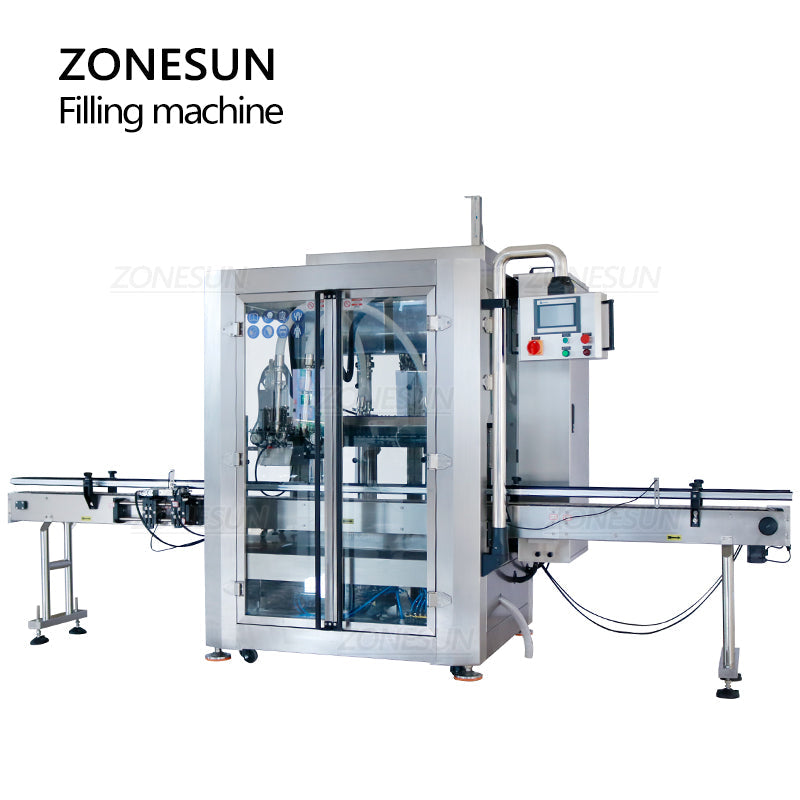

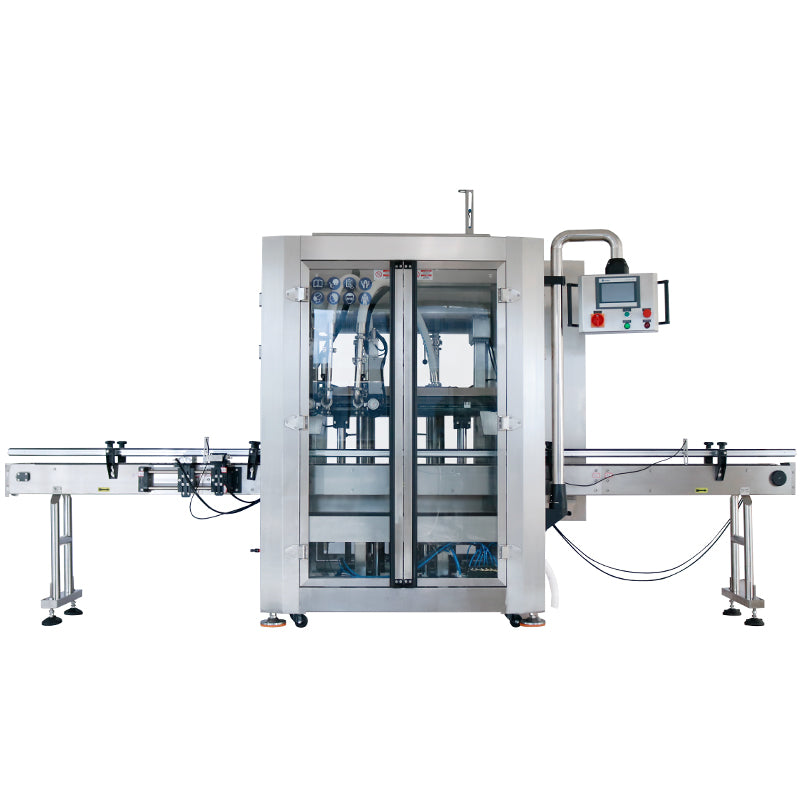

ZONESUN ZS-VTPF2 Automatic Double Tracking Heads Paste Liquid Filling Machine

ZONESUN ZS-VTPF2 Automatic Double Tracking Heads Paste Liquid Filling Machine

Regular price $19,299.00 USD
Regular price Sale price $19,299.00 USD
Sale Sold out
Shipping calculated at checkout.
size

Feature

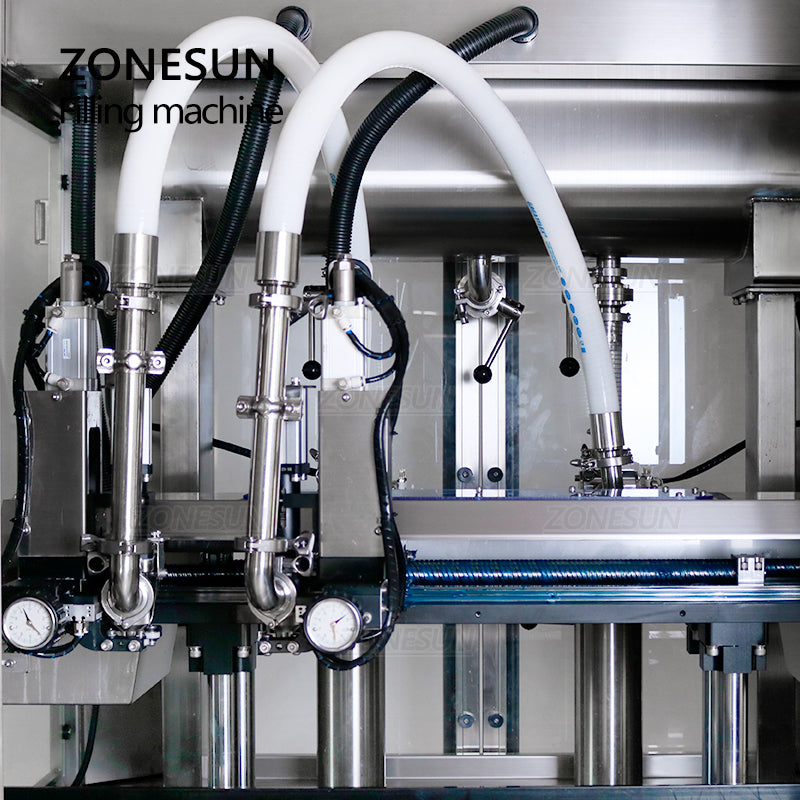

1.With double tracking heads, it will fill materials by moving with the bottles automatically, no need to stop to fill. Greatly improve work efficiency.

2.With high-quality electric eye, it will detect bottles accurately. Intelligent and efficient.

3.With high precise piston, it will fill materials accurately. Ensure production quality.

4.With movable stock bin, it is convenient to feed materials and clean the stock bin. Save labor cost.

5.With chain conveyor belt, it can transport containers stably, improving working efficiency.

6.This machine can work in production line, realizing manless production.

Parameter

Machine Model

ZS-VTPF2

Voltage

380V

Power

3.4kW

Filling Head

2 Heads

Filling Range

200-2000mL (Can be customized)

Filling Speed

2400-3600bottles/hour(depend on material and bottle size)

Filling Accuracy

±1%

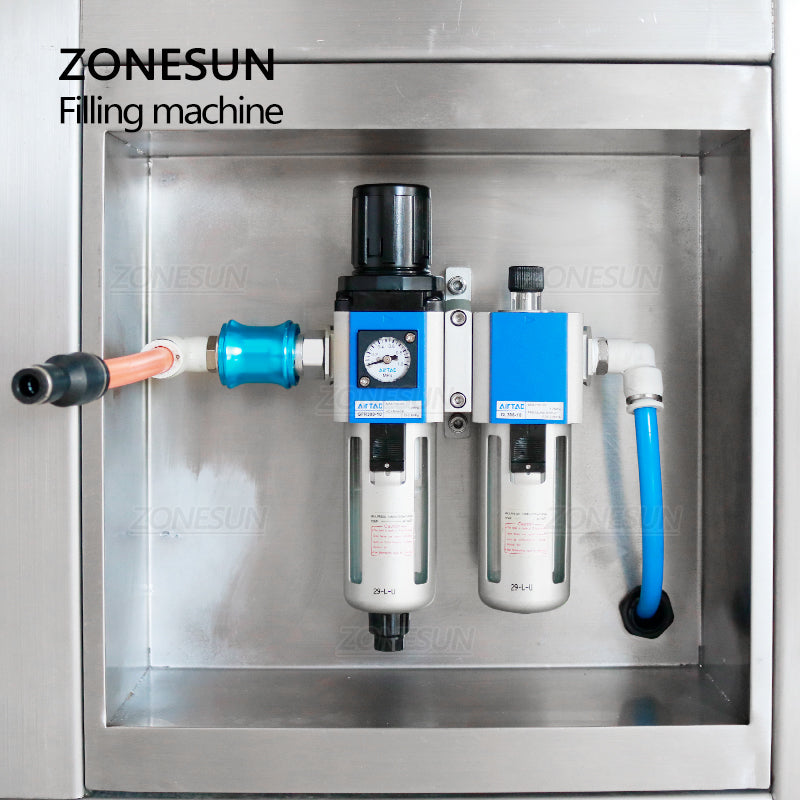

Air Pressure

0.6-0.7Mpa

Air Consumption

6-7m³/min

Machine Material

Stainless Steel

Machine Size

3000*1500*2100mm

Machine Weight

650kg


Application

This machine is suitable for filling paste or liquid, such as cream, honey, shampoo, laundry detergent, juice, etc. It can work with automatic capping machine and labeling machine, realizing automated production. The machine can be widely used in pharmaceutical, beverage, daily chemical industries. Help to improve work efficiency.

Attention

1.This machine will be shipped by sea. If you want a faster shipping, please contact us.

2.This machine can be customized as needed. Please contact us if you need. Thank you!
