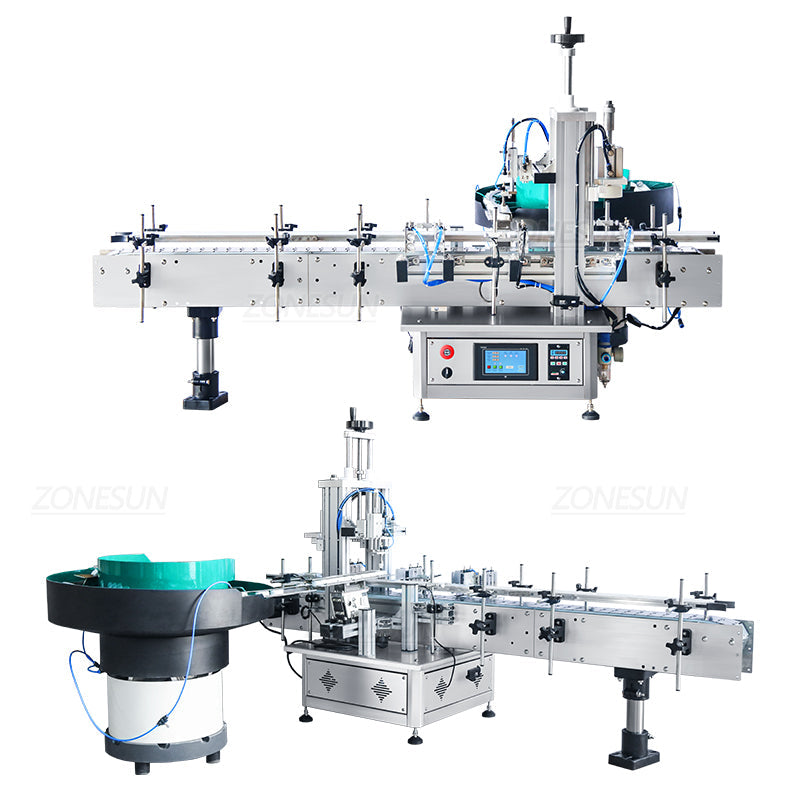

ZONESUN ZS-XG1870G Automatic Cap Pressing Machine With Cap Feeder
ZONESUN ZS-XG1870G Automatic Cap Pressing Machine With Cap Feeder
Couldn't load pickup availability
DESCRIPTION
This automatic capping machine is equipped with a cap feeder, which is suitable for feeding irregular bottle caps, such as tear-off flip tops. It will suck the caps and press them automatically. This machine is widely used in food, cosmetics, and daily chemical industries.
PARAMETER
|
Machine model |
ZS-XG1870G |
|
Working voltage |
AC220V/110V 50-60HZ |
|
Working pressure |
0.4-0.6 MPa |
|
Bottle height |
60-270mm |
|
Bottle Caps Diameter |
Customized |
|
Working speed |
20-40 bottles/minute |
|
Conveyor size |
About 1780*115mm (L*W) |
|
Machine size |
About 1780*580*1140mm (Machine) 650*650*560mm (Vibratory Bowl) |
|
Machine weight |
About 83kg+72kg (Machine+Vibratory Bowl) |
|
Package size |
About 1220*790*1250mm(Machine) 700*700*780mm(Vibratory Bowl) |
|
Package weight |
About 123kg+92kg (Machine+Vibratory Bowl) |
PRODUCT DETAILS
CONTROL PANEL
PLC controls, touch screen, separate conveyor regulator.
FEEDING
Cap unscrambler and feeder, customizabel for irregular caps.
SUCKER
For flat tops, easy to place the caps on the bottle.
CAPPING
For pressing type caps, customizable head for caps of different sizes.
CONVEYOR
Stainless steel, durable and corrosion-resistant.
