ZONESUN

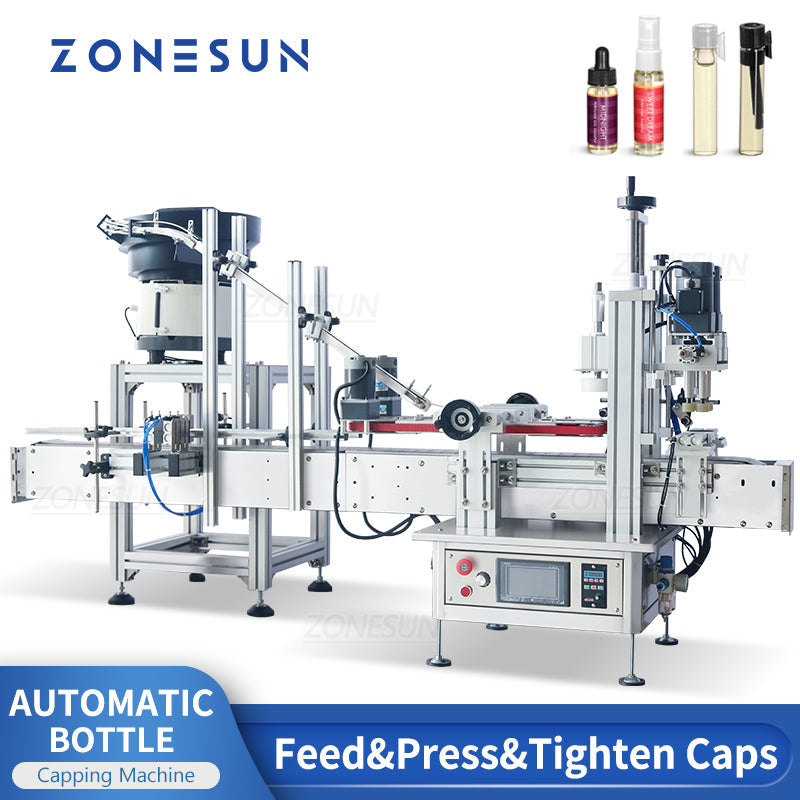

ZONESUN ZS-XG1870P Automatic Capping Machine with Cap Unscrambler Production Line

ZONESUN ZS-XG1870P Automatic Capping Machine with Cap Unscrambler Production Line

Regular price $6,199.00 USD
Regular price Sale price $6,199.00 USD
Sale Sold out
Shipping calculated at checkout.
Voltage

DESCRIPTION

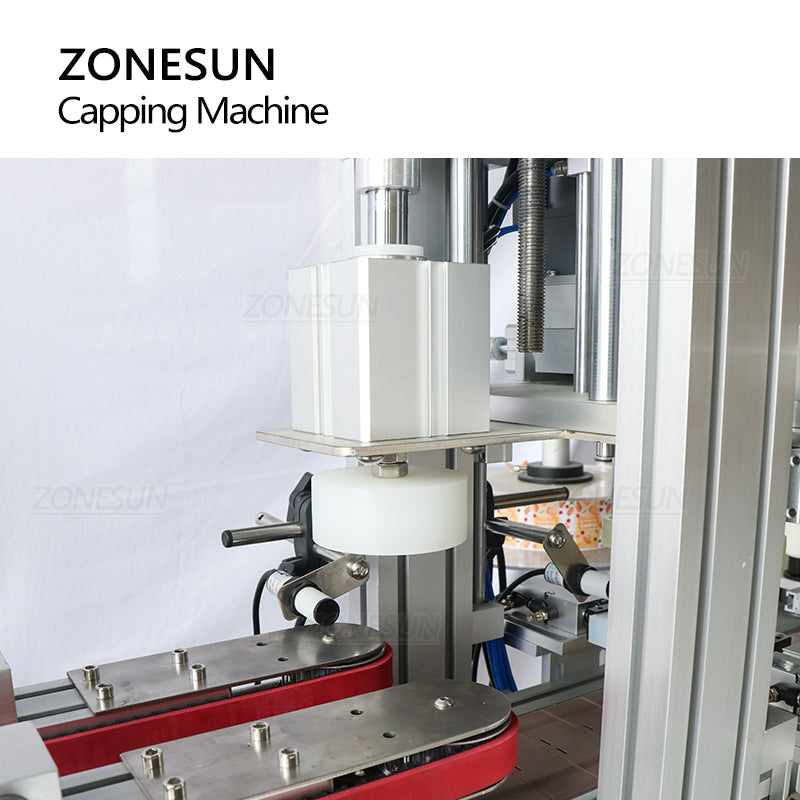

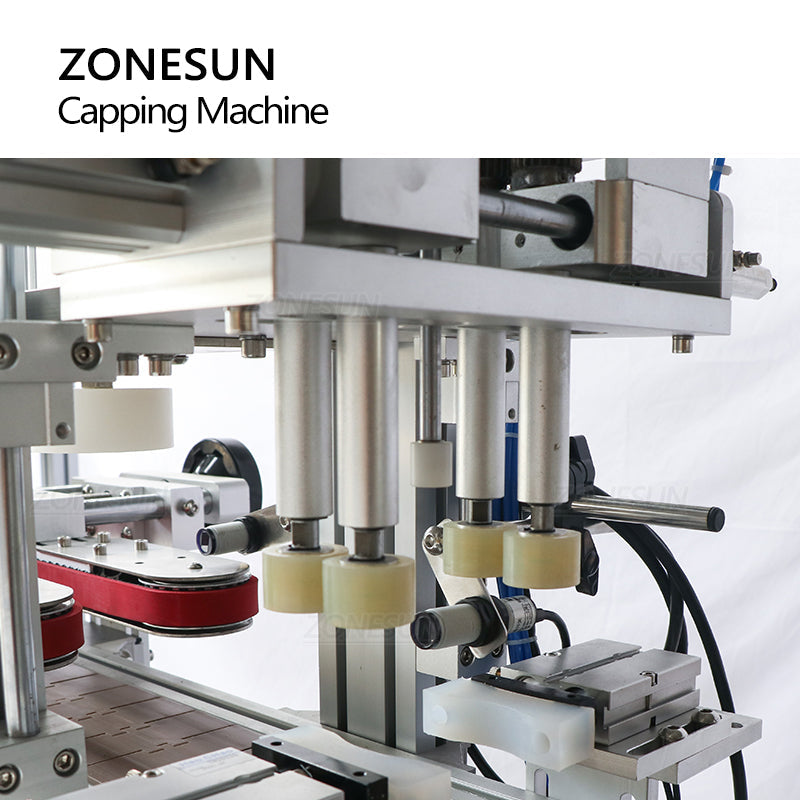

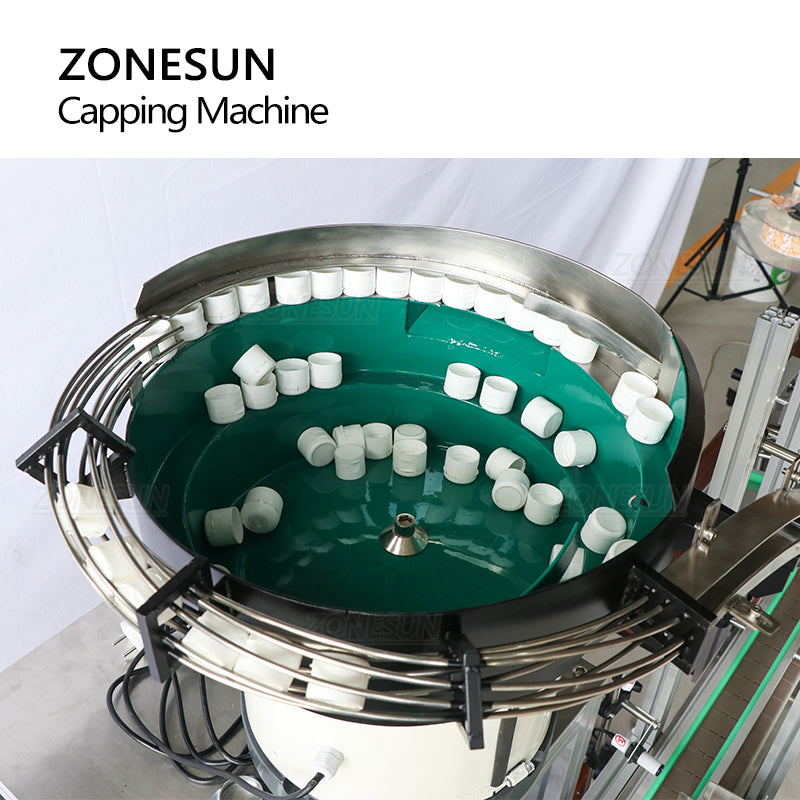

With a cap vibratory bowl, the machine can automatically sort and feed the caps. There is a rubber head for anchoring the cap. It applies 4 spinning heads to screw the cap, which makes it multipurpose. Also, it can be assembled with a filling machine and a labeling machine to form an automated production line.


APPLICATION

This machine is suitable for many different kinds of screw caps, such as plastic screw cap, dispensing closure for salad dressing(with inner seal), break-away closure for syrup, dispensing pump closure, dispensing closure (with inner seal), spray pump, metal closure on glass jar, child resistant closure, cap on toothpaste, measuring cap, etc.


PARAMETER


Model

ZS-XG1870P

Voltage

AC220V/110V 50-60HZ

Power

200W

Bottle Height

60-270mm

Cap Diameter

18-70mm

Working
Speed

20-40 bottles/min

(depending on bottle and caps)

Conveyor
Length

1117mm

Working
Pressure

0.4-0.6 MPa

Size of Air
Compressor Connector

OD 8mm

Dimension

About 2100*580*1200mm (Machine)

About 500*500*1180mm (Vibratory Bowl)

Packing Size

About 1140*615*1105mm (Machine)

About 1165*680*710mm (Vibratory Bowl)

Net Weight

About 85kg (Machine)+

About 88kg(Vibratory Bowl)

Gross Weight

About 114kg (Machine)+

About 116kg(Vibratory Bowl)
