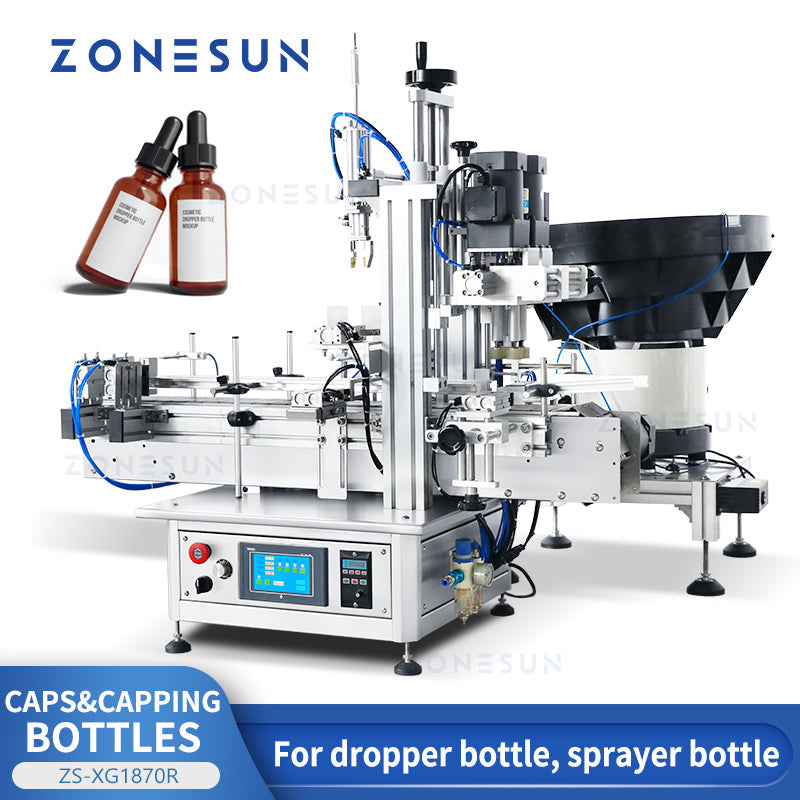

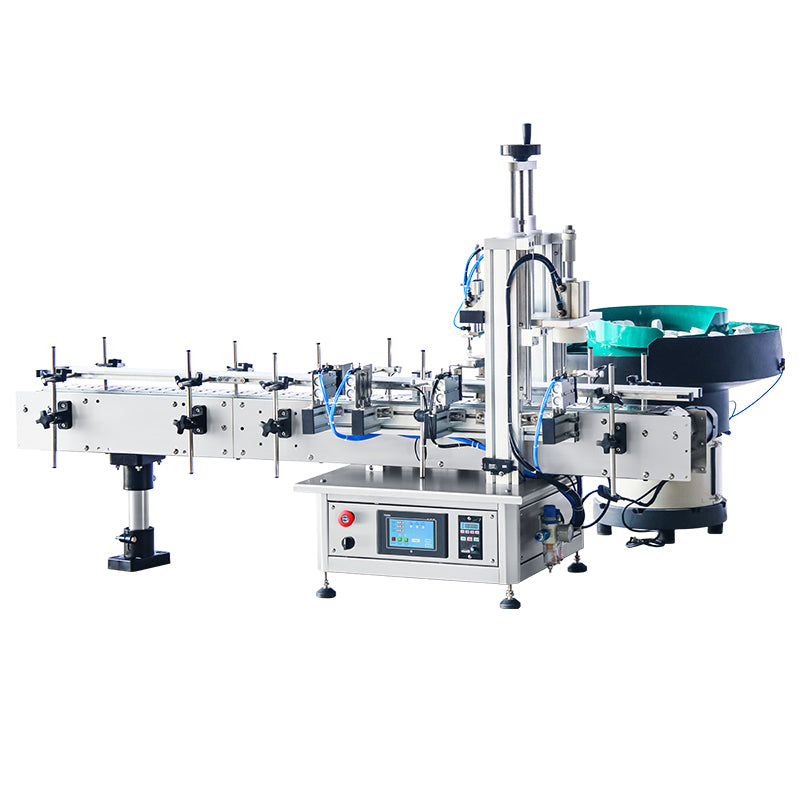

ZONESUN ZS-XG1870R Automatic Dropper Bottle Capping Machine with Vibratory Cap Feeder
ZONESUN ZS-XG1870R Automatic Dropper Bottle Capping Machine with Vibratory Cap Feeder
Regular price
$5,199.00 USD
Regular price
Sale price
$5,199.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
DESCRIPTION
This is a desktop capping machine for dropper bottles. It comes with a vibratory bowl that needs customization. Whatever your packaging needs are, you can rely on ZONESUN.
PARAMETER
|
Machine |
Vibratory Bowl |
|
Machine Power |
110/220V 50-60HZ |
|
Material |
Stainless Steel |
|
Suitable Caps Diameter |
Customized |
|
Working Speed |
Customized |
|
Machine Size |
Customized |
|
Machine |
Capping Machine |
|
Model |
ZS-XG1870R |
|
Working voltage |
AC220V/110V 50-60HZ |
|
Bottle height |
60-270mm |
|
Bottle Caps diameter |
18-70mm |
|
Working speed |
20-40 bottles/minute (Depending on bottle and caps) |
|
Working pressure |
0.4-0.6 MPa |
|
Conveyor length |
1117mm |
|
Size of air compressor connector |
OD 8mm |
|
Machine size |
About 1120*580*1110mm |
|
Package size |
About 1160*610*1140mm |
|
Package weight |
About 97.5kg |
PRODUCT DETAILS
Touch Screen Control Panel
Through the touch screen panel, it’s easy to set working parameters. The language of panel can be customized according to customers’ need.

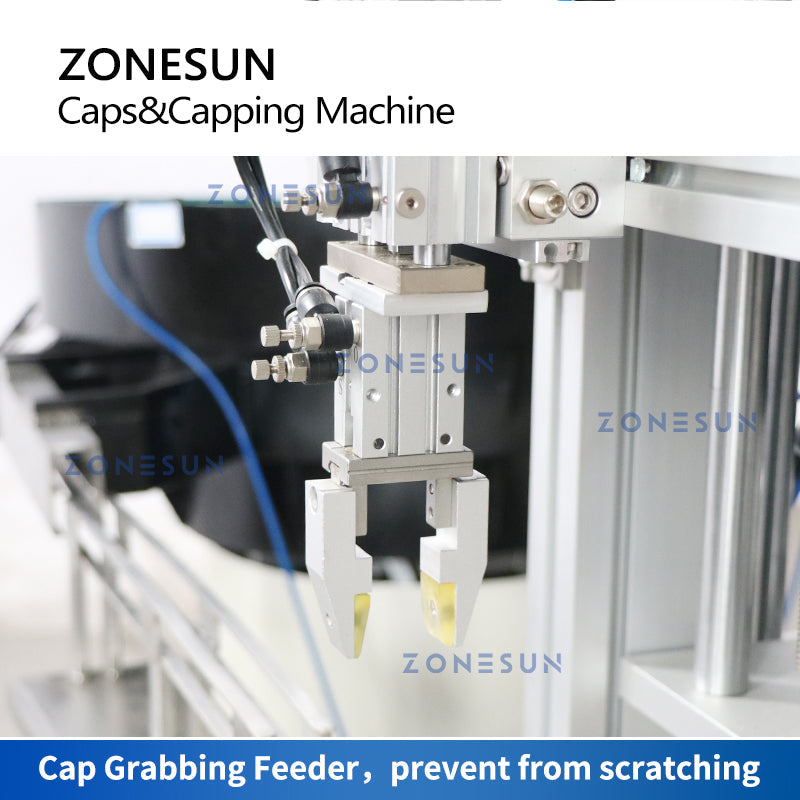

Cap Grabbing Feeder
The cap grabbing structure can imitate human hand to grab bottle caps and put it on bottles,this can prevent from scratching bottle caps and improves working accuracy.
Capping Head
Made of four rubber wheels, it is suitable for various shapes of caps, such as dropper bottle caps, sprayer bottle caps. The working height of machine can be adjusted as needed.
Vibratory Bowl Feeder
Equipped with vibratory bowl feeder,it can help to arrange and feed bottle caps before capping work, reducing production labor and error. It should be customized according to cap size.
Conveyor Belt
With chain conveyor belt, it has large loading capacity, which can transport bottles stably. The width and conveying speed of it can be adjusted as needed.
